Remove/Install Left Front Floor Covering - AR68.20-P-2050RG

Model 190

Courtesy of MERCEDES-BENZ USA

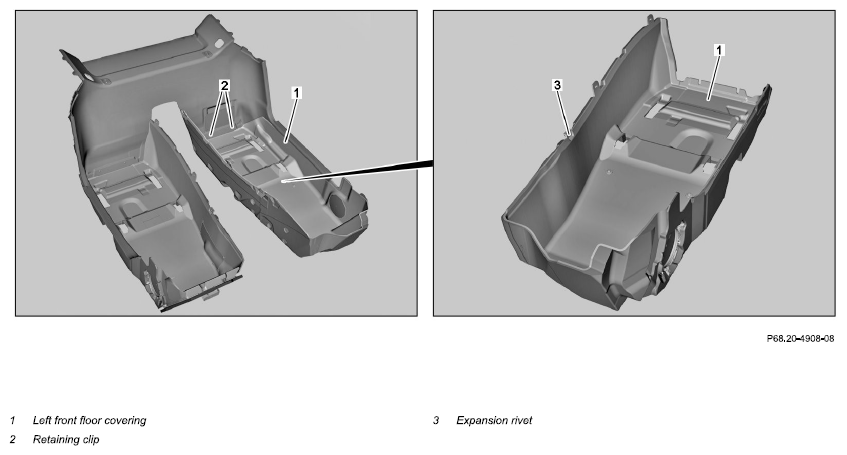

Shown on front floor covering (left)

	Remove/install
1	Remove left foot mat
2	Remove left front seat		AR91.10-P-1000RG
3	Remove door sill molding		AR68.30-P-4100RG
4	Remove cover on center console		AR68.20-P-2350RG
5	Remove cover from side of center console		AR68.20-P-2355RG
6	Remove accelerator pedal		AR30.12-P-1321RQ
7	Remove retaining clip (2) from left front floor covering (1)
8	Remove expansion rivet (3) from left front floor covering (1)
9	Lift left front floor covering (1) at rear and remove from vehicle	Guide supply lines on front seats along cutout.
10	Install in the reverse order	Ensure that left front floor covering (1) is seated correctly.
