Remove/Install Accelerator Pedal - AR30.12-P-1321RQ

Model 190

Model 197

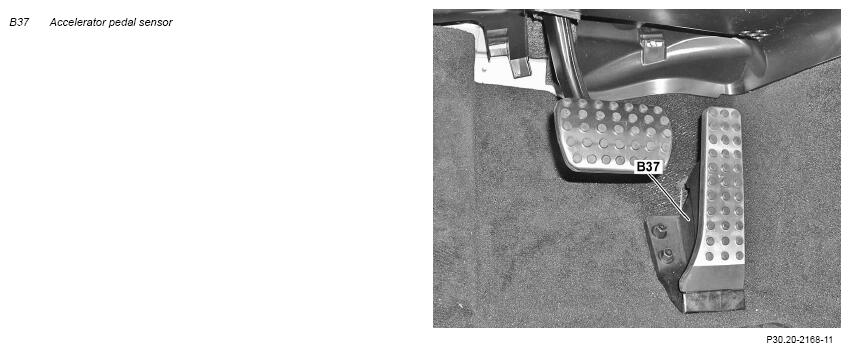

Fig 1: Accelerator Pedal Components Location - Model 190

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unscrew nuts from accelerator pedal sensor (B37)	Replace nuts. Bolt, accelerator pedal to floor panel	*BA29.10-P-1003-02D
2	Disconnect electrical connection from accelerator pedal sensor (B37)
3	Remove accelerator pedal	The accelerator pedal must not be disassembled! Since otherwise damage may occur.
4	Install in the reverse order
	Check
5	Read out fault memory with STAR DIAGNOSIS and clear if necessary
		Model 197	AD00.00-P-2000-04A
		Model 190	AD00.00-P-2000-04B

PEDALS, BEARING BRACKET

Number	Designation		Model 190	Model 197
BA29.10-P-1003-02D	Bolt, accelerator pedal to floor panel	Nm	-	5
