Retrofit COMAND Online - AN82.85-P-0009GQ

Model 166.0/8

with code 3U1 (Headunit europe/CIS-states/Monoglei)

with code 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT)

Shown on model 166.0## 1#

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove

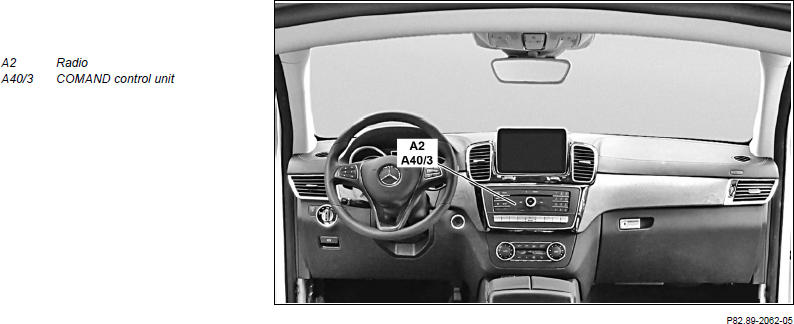

1	Remove radio (A2)
		The radio (A2) is no longer required.	AR82.60-P-7502GQ
2	Remove upper control panel control unit
		Model 166.0/8 as of model year 2016 with code 3U1 (Headunit europe/CIS-states/Monoglei) with code 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT)	AR54.21-P-1262GQC
3	Remove 7-inch audio/COMAND display
		Model 166.0/8 except code 857 (8" display for Audio 20) The 7 inch Audio/COMAND display is no longer required.	AR82.60-P-7722GQC
4	Remove side air vent on driver side
			AR68.10-P-1100GQ
5	Remove instrument cluster and place onto instrument panel
		Position protective cover between instrument cluster and instrument panel. Otherwise, the instrument panel surface may be damaged. Do not disconnect electrical connector.	AR54.30-P-6015GQ
6	Remove glove compartment
			AR68.10-P-1400GQ
7	Remove cover below dashboard on driver's side	Model 166.0##/8## 2# except code 810 (Sound system) and except code 811 (Advanced Sound-System)
			AR68.10-P-1500GQ
8	Remove center console	Model 166.0/8 except code 810 (Sound system) and except code 811 (Advanced Sound-System)
			AR68.20-P-2000GQ
9	Remove front central operating unit control unit	Where a touchpad is not installed.
		Model 166.0/8 as of model year 2016 with code 3U1 (Headunit europe/CIS-states/Monoglei) with code 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT) The front central operating unit control unit is no longer required.	AR54.21-P-0500GQA
10	Disconnect battery ground line	Model 166.0/8 except code 810 (Sound system) and except code 811 (Advanced Sound-System)
			AR54.10-P-0003GZ
	Install
11	Retrofit WLAN antenna		AN82.85-P-0008-05GQ
12	Retrofit Bluetooth® antenna		AN82.85-P-0008-06GQ
13	Retrofit wiring harness for COMAND fan motor	Model 166.0/8 except code 810 (Sound system) and except code 811 (Advanced Sound-System)	AN82.85-P-0008-02GQ
	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
		Cockpit ground point	*BA00.19-P-1002-01G
		Wiring harness repair kit, basic	Fig 3
		New passenger car wiring harness repair kit	Fig 2
14	Retrofit air duct for COMAND fan motor	Model 166.0/8 except code 810 (Sound system) and except code 811 (Advanced Sound-System)	AN82.85-P-0008-03GQ
15	Retrofit COMAND fan motor	Model 166.0/8 except code 810 (Sound system) and except code 811 (Advanced Sound-System)	AN82.85-P-0008-01GQ
16	Retrofit 8-inch audio/COMAND display
		Except code 857 (8" display for Audio 20)	AR82.60-P-7722GQC
17	Mount upper control panel control unit to COMAND controller unit (A40/3)
		Model 166.0/8 as of model year 2016 with code 3U1 (Headunit europe/CIS-states/Monoglei) with code 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT)	AR54.21-P-1262GQC
18	Install COMAND controller unit (A40/3)
			AR82.60-P-7502GQ
19	Retrofit wiring harness for center console	Where a touchpad is not installed.	AN82.85-P-0008-07GQ
		Mounting wedge	Fig 1
20	Retrofit front central operating unit control unit including touchpad	Where a touchpad is not installed.
		Model 166.0/8 as of model year 2016 with code 3U1 (Headunit europe/CIS-states/Monoglei) with code 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT)	AR54.21-P-0500GQA
21	Install remaining parts
	Update Vehicle Documentation (VeDoc)
22	Delete special equipment in on-line vehicle data card	CODE 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT) Code 818 (Single CD drive)
23	Enter special equipment into the on-line vehicle data card	Code 531 (COMAND APS) CODE 815 (Single DVD drive)
24	Enter special equipment into the on-line vehicle data card	Model 166.0/8 except code 857 (8" display for Audio 20) code 857 (8" display for audio 20)
25	Attach note "COMAND Online retrofitted as per AN82.85-P-0009GQ" under field organization texts to design group 82
26	Attach note "COMAND Online retrofitted as per AN82.85-P-0009GQ" under field organization texts to design group 54	Where touchpad was retrofitted.
27	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
28	Carry out variant coding using software calibration number (SCN)	SAM control unit Instrument cluster COMAND controller unit (A40/3) Communications module
29	Carry out variant coding using software calibration number (SCN)	Model 166.0/8 with code 218 (Reversing camera) Backup camera
30	Carry out variant coding using software calibration number (SCN)	Model 166.0/8 with code 501 (360° camera) 360° camera control unit
31	Carry out variant coding using software calibration number (SCN)	Model 166.0/8 with code 22P (Lane package) Multifunction camera Radar sensors
32	Carry out variant coding using software calibration number (SCN)	Model 166.0/8 with code 23P (Driving Assistance package Plus) Stereo multifunction camera Radar sensors
33	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
34	Perform function test	See Owner's Manual.
