Remove/Install Radio Display - AR82.60-P-7722GQC
Model 166
as of model year 2016
Model 292
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and carry out initial startup of radio display (1) | When replacing the radio display (1). | |
| AD00.00-P-2000-04A | |||

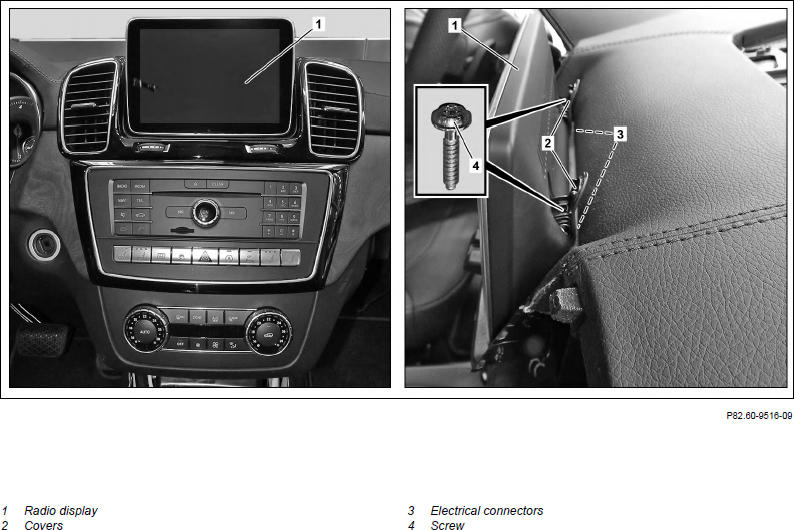

| 2 | Open covers (2) on radio display (1) | ||
| 3 | Remove screws/bolts (4) screwed in vertically downwards | ||
| 4 | Pull radio display (1) out of guide and disconnect electrical connectors (3) | ||
| 5 | Remove radio display (1) | ||
| 6 | Install in the reverse order |
