Retrofit Additional Fan Air Duct For COMAND Online Incl. DVD Changer - AN82.85-P-0008-03GQ
Model 166.0/8
with code 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT)
except code 810 (Premium sound system)
except code 811 (High-End sound system)
The following operation steps describe installation in a left-hand drive vehicle. The work procedure may differ for right-hand drive vehicles.

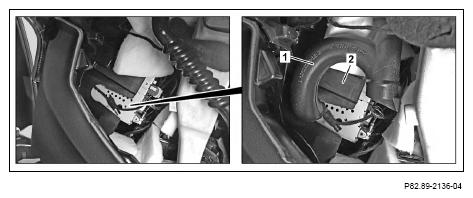

- Engage air duct (1) in guide on mounting slot (2) of COMAND controller unit.
