Remove/Install Left Turbocharger - AR09.40-P-6026MNG

Engine 177 in model 253

G12817074Courtesy of MERCEDES-BENZ USA
G12817075Courtesy of MERCEDES-BENZ USA
G12817076Courtesy of MERCEDES-BENZ USA
G12817077Courtesy of MERCEDES-BENZ USA
G12817078Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. AS49.00-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. AS00.00-Z-0017-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on coolant   AH20.00-N-2080-01A
REMOVINGINSTALLING Remove/install
1 Drain off coolant IMPORTANTInstallation:  Do not install center and front lower engine compartment lining until after leak test. AR20.00-P-1142MNG
2 Remove left-hand air filter housing IMPORTANTInstallation:  Only install upper engine cove after the leak test. AR09.10-P-1151MNG
3 Remove right air filter housing   AR09.10-P-1152MNG
4 Unclip engine wiring harness of left cylinder head cover at heat shields and place to one side   AR15.18-P-1000-07MNG
    TORQUE SPECIFICATION Bolt, engine wiring harness ground to cylinder head cover *BA15.10-P-1003-05F
    TORQUE SPECIFICATION Bolt, engine wiring harness to cylinder head cover *BA15.18-P-1001-01G
5 Remove ignition coil for cylinders 5+6 (T4/2)   AR15.12-P-2008MNG
6 Remove left heat shield on left exhaust gas turbocharger (2)   AR09.40-P-6026-01MNG
    TORQUE SPECIFICATION Bolt, side heat shield to cylinder head cover *BA09.40-P-1007-01ZA
7 Check elastomer bearings of left heat shield for damage If a problem arises

Replace elastomer bearing.

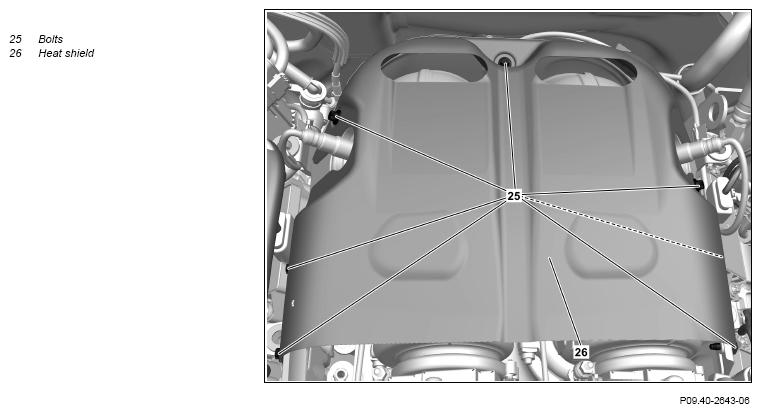

8 Remove screws (25) and remove heat shield (26) in upward direction TORQUE SPECIFICATION Bolt, upper heat shield to bracket/side heat shield *BA09.40-P-1006-01ZA
9 Remove left and right catalytic converter and secure against falling down Left catalytic converter AR49.20-P-0101MNG
    Right catalytic converter AR49.20-P-0102MNG

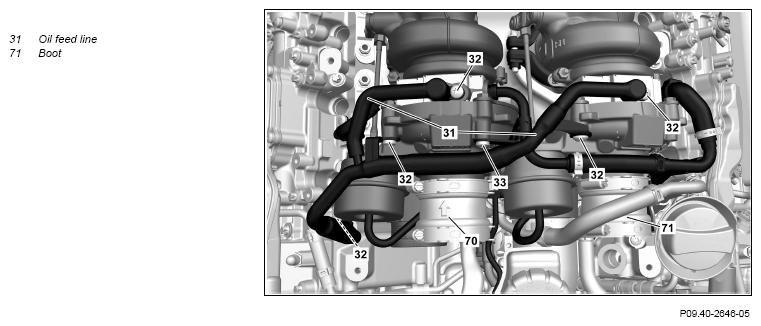

10 Remove boot (71) at left exhaust gas turbocharger (2) and place to one side TORQUE SPECIFICATION Clamp, boot to exhaust gas turbocharger/air filter *BA01.20-P-1003-01J

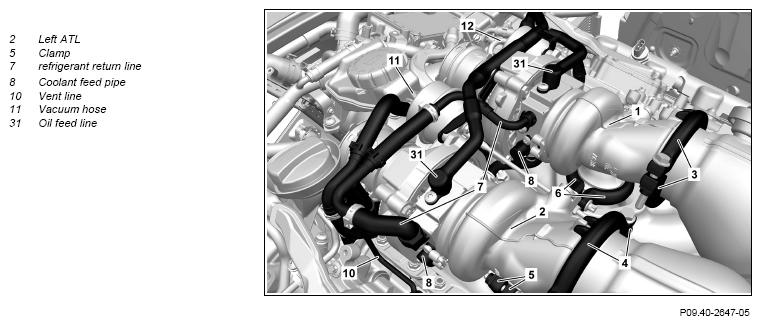

11 Remove vacuum hose (11) at left exhaust gas turbocharger (2)
12 Remove oil feed line (31) from left exhaust gas turbocharger (2) and seal openings with suitable stop plugs   AR09.40-P-6040MNG
    SPECIAL TOOL Record plug Fig 1
13 Remove coolant return line (7) with bleed line (10)   AR20.20-P-1101MNG
14 Remove coolant feed pipe (8) on left exhaust gas turbocharger (2) and on left cylinder head   AR20.20-P-1100MNG
15 Remove upper coolant expansion reservoir for low-temperature circuit and place to one side with connected lines   AR09.41-P-0050MNG
16 Remove charge air hose on left exhaust gas turbocharger (2) TORQUE SPECIFICATION Bolt, clamp for charge air hose to charge-air distributor *BA09.41-P-1002-01X

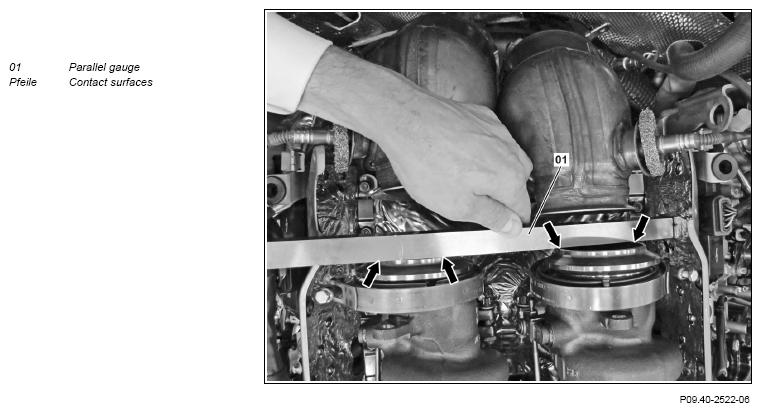

17 Remove clamp (5) IMPORTANTInstallation:  Replace clamp (5). IMPORTANTInstallation:  The SI  parallel gauge (01) must be flush with contact surfaces (arrows) so that parallelism of the right exhaust gas turbocharger to the left exhaust gas turbocharger (2) is ensured. TORQUE SPECIFICATION Bolt, turbocharger clamp to exhaust manifold *BA09.40-P-1001-01ZA
    SPECIAL TOOL Parallel support Fig 2

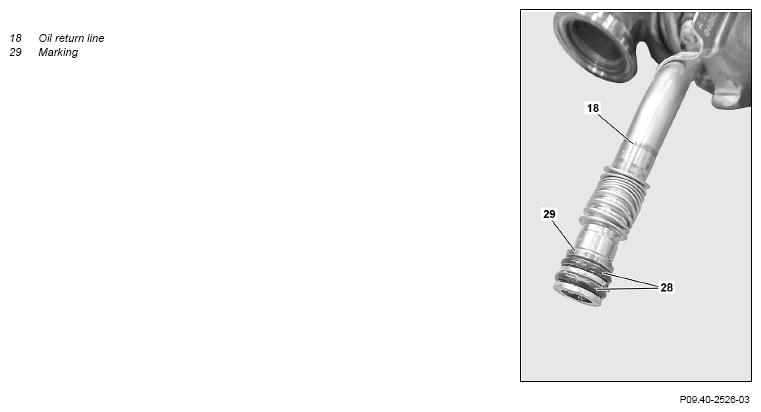

18 Remove left exhaust gas turbocharger (2) with oil return feed line (18) in upward direction NOTESInstallation:
Ensure that marking (29) on oil return feed line (18) is flush with crankcase.
Oil return feed line (18) will otherwise be leaky. IMPORTANTInstallation:  Replace sealing ring on left exhaust manifold.

19 Remove oil return feed line (18) from left exhaust gas turbocharger (2)   AR09.40-P-6041MNG
20 Install in the reverse order
INSPECT Check
21
REFER TO MAINTENANCE
Check engine oil level and correct if necessary   AP18.00-P-1812CKI
WARNING
22
Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.
Perform an engine test run; check engine for functionality and leaktightness
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
23 Install center and front lower engine compartment paneling   AR61.20-P-1105LW
24 Install upper engine cover
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER

Number Designation Engine 177
BA01.20-P-1003-01J Clamp, boot to exhaust gas turbocharger/air filter Nm 1, 5
TURBOCHARGER

Number Designation Engine 177
BA09.40-P-1001-01ZA Bolt, turbocharger clamp to exhaust manifold Nm 21
TURBOCHARGER

Number Designation Engine 177
BA09.40-P-1006-01ZA Bolt, upper heat shield to bracket/side heat shield Nm 9
TURBOCHARGER

Number Designation Engine 177
BA09.40-P-1007-01ZA Bolt, side heat shield to cylinder head cover Nm 9
CHARGE AIR LINE/CHARGE AIR COOLING

Number Designation Engine 177
BA09.41-P-1002-01X Bolt, clamp for charge air hose to charge-air distributor Nm 6
GROUND STRAP

Number Designation Engine 177
BA15.10-P-1003-05F Bolt, engine wiring harness ground to cylinder head cover Nm 9
ENGINE WIRING HARNESS

Number Designation Engine 177
BA15.18-P-1001-01G Bolt, engine wiring harness to cylinder head cover Nm 9
Fig 1: Identifying Record Plug (129 589 00 91 00)
G11972128Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Parallel Support (168 589 03 21 00)
G12817080Courtesy of MERCEDES-BENZ USA
