Correct Articulation Angle Of Propeller Shaft - AR41.10-P-0090OLC
Model 213, 238
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on measuring the drive shaft articulation angle | AH41.10-P-0002-01LF | ||
| Correct | |||
| 1 | Lift vehicle on vehicle lift | AR00.60-P-1002LWG | |

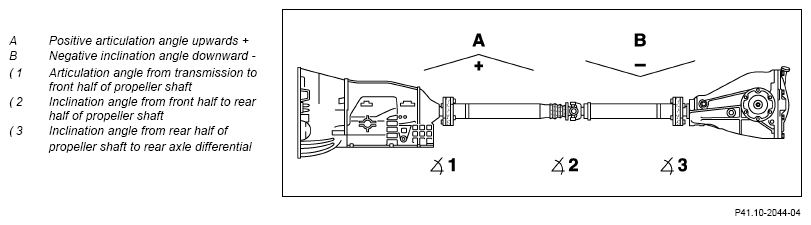

| Correct articulation angle from transmission to front half of propeller shaft (∠1) | |||
| 2 | Remove center and rear sections of lower engine compartment lining | AR61.20-P-1105LWE | |
| 3 | Correct articulation angle from transmission to front half of propeller shaft (∠ 1) at transmission | AR41.10-P-0086-03LW | |
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
Model 213 with engine 256, 264, 274, 276, 642, 654, 656Bolt, rear engine support to body |
*BA22.10-P-1005-03N | ||
| *BA22.10-P-1004-03O | |||
| Model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) Rear engine mount to engine support Model 213 with engine 256, 264, 274, 276, 642, 654, 656 Rear engine mount to engine support |
*BA22.10-P-1004-03N | ||
| *BA22.10-P-1005-03O | |||
| Model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) Bolt, rear engine support to body Front inclination angle of transmission relative to front propeller shaft (∠1) | *BE41.10-P-1001-01G | ||
| 4 | Carry out check measurement | AR41.10-P-0086LW | |
| Correct articulation angle from front half to rear half of propeller shaft ( ∠2) | |||
| 5 | Support propeller shaft using mounting plate and major assembly mount | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 6 | Remove center reinforcement above propeller shaft intermediate bearing | ||
| 7 | Correct articulation angle from front half to rear half of propeller shaft (∠ 2) at propeller shaft intermediate bearing | AR41.10-P-0086-04LW | |
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| *BA41.40-P-1001-01H | |||
| Inclination angle of front propeller shaft relative to rear propeller shaft (∠2) | *BE41.10-P-1002-01G | ||
| 8 | Install center reinforcement above propeller shaft intermediate bearing | *BA61.10-P-1003-01L | |
| 9 | Remove support plate and major assembly mount | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 10 | Carry out check measurement | AR41.10-P-0086LW | |
| Correct articulation angle from rear half of propeller shaft to rear axle differential (∠ 3) | |||
| 11 | Correct articulation angle from rear half of propeller shaft to rear axle differential (∠ 3) at rear axle differential | Model 213 (except 213.088/089/288/289), 238 | AR41.10-P-0086-12OLC |
| Model 213.088/089/288/289 | AR41.10-P-0086-12MNE | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| Rear inclination angle of rear propeller shaft relative to rear axle differential (∠3) | *BE41.10-P-1003-01G | ||
| *BA35.10-P-1005-01H | |||
| *BA35.10-P-1006-01H | |||
| 12 | Carry out check measurement | AR41.10-P-0086LW |
CHECK VALUES FOR PROPELLER SHAFT ARTICULATION ANGLE
| Number | Designation | Model 213 Except AMG | Model 213 AMG | |
|---|---|---|---|---|
| BE41.10-P-1001-01G | Front inclination angle of transmission relative to front propeller shaft (∠1) | ∠° | -0, 50...+0, 67 | -0, 60...+0, 40 |
CHECK VALUES FOR PROPELLER SHAFT ARTICULATION ANGLE
| Number | Designation | Model 238 | |
|---|---|---|---|
| BE41.10-P-1001-01G | Front inclination angle of transmission relative to front propeller shaft (∠1) | ∠° | -0, 50...+0, 67 |
CHECK VALUES FOR PROPELLER SHAFT ARTICULATION ANGLE
| Number | Designation | Model 213 Except AMG | Model 213 AMG | |
|---|---|---|---|---|
| BE41.10-P-1002-01G | Inclination angle of front propeller shaft relative to rear propeller shaft (∠2) | ∠° | +0, 00...+1, 00 | +0, 10...+0, 50 |
CHECK VALUES FOR PROPELLER SHAFT ARTICULATION ANGLE
| Number | Designation | Model 238 | |
|---|---|---|---|
| BE41.10-P-1002-01G | Inclination angle of front propeller shaft relative to rear propeller shaft (∠2) | ∠° | +0, 00...+1, 00 |
CHECK VALUES FOR PROPELLER SHAFT ARTICULATION ANGLE
| Number | Designation | Model 213 Except AMG | Model 213 AMG | |
|---|---|---|---|---|
| BE41.10-P-1003-01G | Rear inclination angle of rear propeller shaft relative to rear axle differential (∠3) | ∠° | -1, 00...-0, 17 | -1, 00...-0, 40 |
CHECK VALUES FOR PROPELLER SHAFT ARTICULATION ANGLE
| Number | Designation | Model 238 | |
|---|---|---|---|
| BE41.10-P-1003-01G | Rear inclination angle of rear propeller shaft relative to rear axle differential (∠3) | ∠° | -1, 00...-0, 17 |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 213 with engine 177 | Model 213 with engine 254, 256, 264, 274, 276, 642, 654, 656 | ||
|---|---|---|---|---|---|
| BA22.10-P-1004-03N | Rear engine mount to engine support | M6 | Nm | 18 | 18 |
| M8 | Nm | 30 | 30 | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 238 except code M005 (Vehicles with 4MATIC/all-wheel drive) | Model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) | |
|---|---|---|---|---|
| BA22.10-P-1004-03O | Rear engine mount to engine support | Nm | 30 | 30 |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 213 with engine 177 | Model 213 with engine 254, 256, 264, 274, 276, 642, 654, 656 | |||
|---|---|---|---|---|---|---|
| BA22.10-P-1005-03N | Bolt, rear engine support to body | M10 | Stage 1 | Nm | 30 | 30 |
| Stage 2 | Nm | 50 | 50 | |||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 238 except code M005 (Vehicles with 4MATIC/all-wheel drive) | Model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) | ||
|---|---|---|---|---|---|
| BA22.10-P-1005-03O | Bolt, rear engine support to body | Stage 1 | Nm | 30 | 30 |
| Stage 2 | Nm | 50 | 50 | ||
REAR AXLE CARRIER
| Number | Designation | Model 213 | Model 238 | |||
|---|---|---|---|---|---|---|
| BA35.10-P-1005-01H | Rear axle differential to front adapter | Rear axle differential (steel) | Nm | 65 | - | |
| Rear axle differential (aluminum) | Stage 1 | Nm | 40 | 40 | ||
| Stage 2 | ∠° | 45 | 45 | |||
REAR AXLE CARRIER
| Number | Designation | Model 213 | |
|---|---|---|---|
| BA35.10-P-1006-01H | Bolt, rear axle differential to rear transverse bridge | Nm | 170 |
PROPELLER SHAFT INTERMEDIATE BEARING
| Number | Designation | Model 213 | Model 238 | |
|---|---|---|---|---|
| BA41.40-P-1001-01H | Bolt, propeller shaft intermediate bearing to frame floor assembly | Nm | 25 | 25 |
FRAME FLOOR ASSEMBLY
| Number | Designation | Model 213 | Model 238 | ||
|---|---|---|---|---|---|
| BA61.10-P-1003-01L | Bolt, center reinforcement to frame floor assembly | M10 | Nm | 23 | 23 |
| M6 | Nm | 8 | 8 | ||
