Retrofit Rear Mercedes-Benz Dashcam With Existing Front Dashcam - AZ54.71-P-0003LWE

Model 213

except code 540 (Electric roller blind for rear window)

except code 844 (folding bench seat in load compartment)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on retrofitting electrical/optical lines		AH82.00-P-0000-01A
	Remove
1	Release fuse and relay module on driver's side.
			AR54.15-P-0003LWE
2	Remove A-pillar trim on driver's side.
			AR68.30-P-4050LW
3	Remove top B-pillar trim on driver's side and place with attached seat belt to one side.
			AR68.30-P-4700LW
4	Remove front and rear grab handles on driver's side.
			AR68.30-P-4330NKB
5	Remove covers over mounting eyes for front and rear partitioning net on driver's side.	Model 213.2
		Long wedge	Fig 1
6	Remove left C-pillar trim and place to one side with the seat belt attached.
		Model 213.0	AR68.30-P-4490LWE
		Model 213.1	AR68.30-P-4491LWV
7	Remove D-pillar trim on driver's side.
		Model 213.2	AR68.30-P-4497LWT
8	Remove overhead control panel control unit.
			AR82.20-P-1000LF
	Install
9	Retrofit dashcam mount at rear.	When pressing on, ensure that the pressure is applied directly on the adhesive point. The maximum adhesive strength is only reached after approx. 72 h at 20°C. Avoid any mechanical stress during the first hour. Otherwise adhesion problems may occur.	AZ54.71-P-0003-00LWE
		Cleaner	*BR00.45-Z-1025-04A
	Remove
10	Remove cover for rain and light sensor.	Long wedge	Fig 1
11	Remove both sun visors.
			AR68.60-P-5480NKB
12	Detach edge guard at front and rear on driver's side in area of roof lining.
13	Release front and rear roof lining on driver's side.
14	Remove upper liftgate trim.
		Model 213.2	AR72.20-P-6631LWS
	Install
15	Route dashcam wiring harness.	Model 213.0/1	AZ54.71-P-0003-01LWE
		Model 213.2	AZ54.71-P-0003-01LWT
		Silicone spray Silicone fluid, 0.4 l art. no. 0893 221 000	*BR00.45-Z-1133-06A
		Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide	*BR00.45-Z-1144-02A

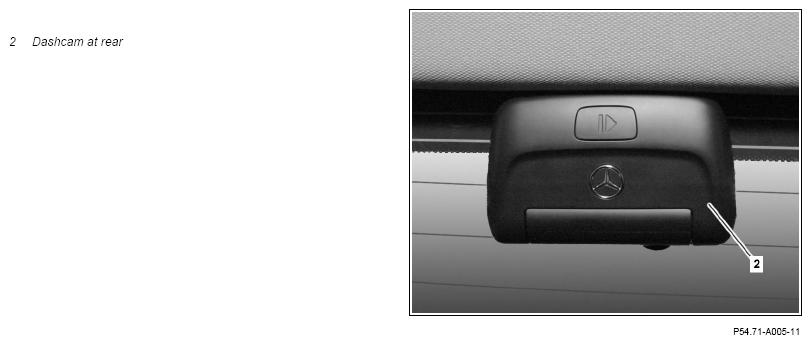

16	Latch dashcam at rear (2) into place in dashcam mount in opposite direction to arrow on eject button.	Assemble dashcam at rear (2) at the earliest one hour after gluing on the dashcam mount. Otherwise, the dashcam mount may work its way loose.
17	Perform initial startup.		AZ54.71-P-0001-02LWE
	National settings for Mercedes-Benz dashcam		GF54.71-P-0010-02LWE
18	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
19	Attach "Mercedes-Benz dashcam retrofitted at rear as per AZ54.71-P-0003LWE" note under field organization texts to design group 54, design group 67 and design group 68.
	Check
20	Perform function test.	See Owner's Manual.

Fig 1: Identifying Long Wedge (115 589 03 59 00)
