Remove/Install D-Pillar Trim - AR68.30-P-4497LWT
Model 213.2
MODIFICATION NOTES
| 04.11.2016 | Operation incorporated | Step 4 |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | Model 213.2 with code P17 (KEYLESS-GO package) | AH80.61-P-0001-01A | |
| Remove/install | |||

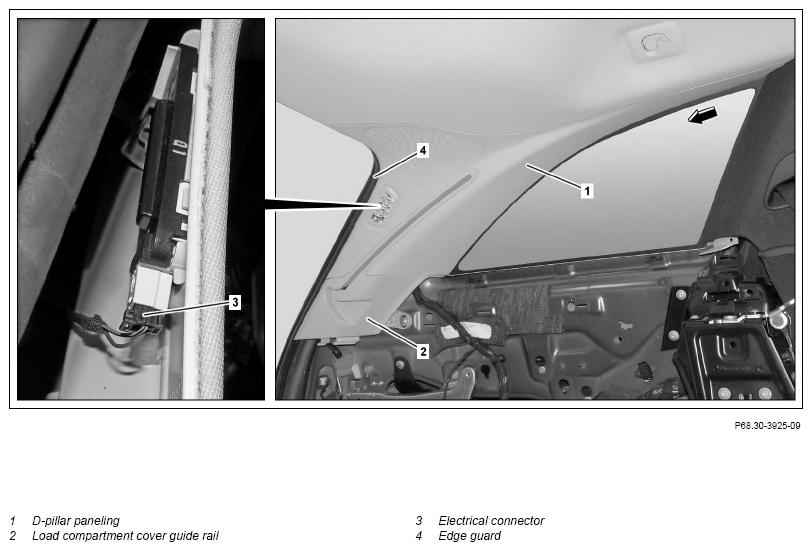

| 1 | Remove left or right load compartment cover guide rail (2) | AR68.30-P-1100LWT | |
| 2 | Detach edge guard (4) in area of D-pillar paneling (1) | ||
| 3 | Disconnect electrical connection (3) | ||
| 4 | Unclip D-pillar paneling (1) | ||
| 5 | Remove D-pillar paneling (1) in direction of arrow and remove | ||
| 6 | Install in the reverse order |
