Retrofit Wiring Harness For Mercedes-Benz Dashcam At Rear With Existing Mercedes-Benz Dashcam At Front - AZ54.71-P-0003-01LWE

Model 213.0/1

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on retrofitting electrical/optical lines		AH82.00-P-0000-01A

REPAIR MATERIALS

Number	Description	Order number
BR00.45-Z-1144-02A	Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide	A 008 989 50 85 09

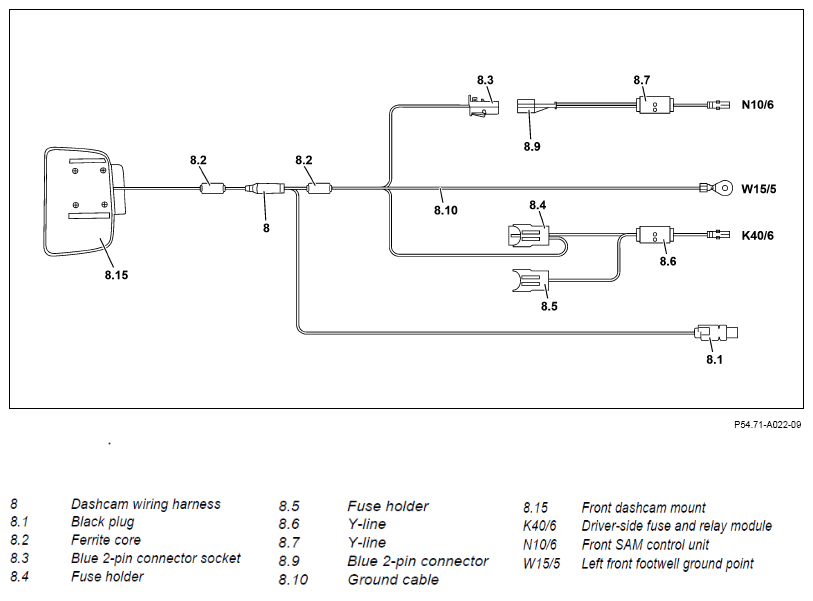

Connection scheme

Courtesy of MERCEDES-BENZ USA

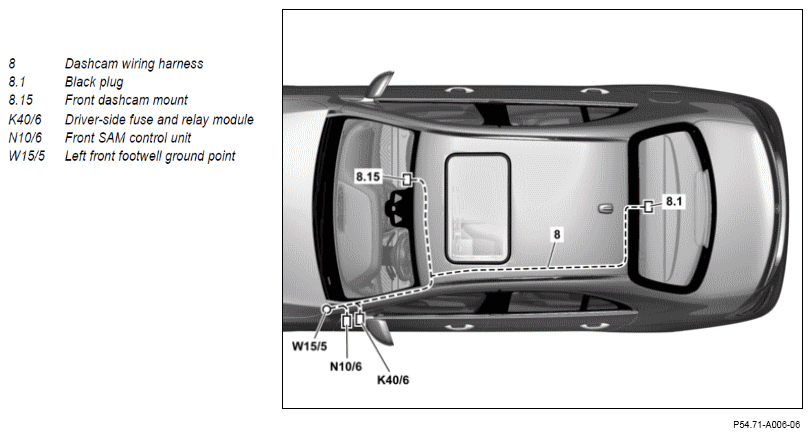

Routing diagram

Courtesy of MERCEDES-BENZ USA

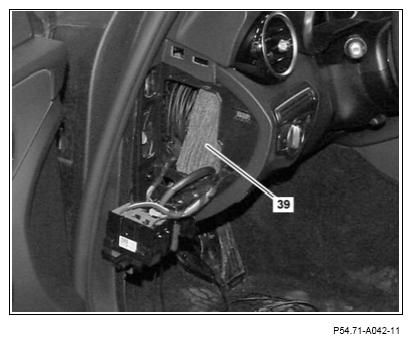

Push damping (39) to one side.
Expose branch-off line for dashcam at rear.

Courtesy of MERCEDES-BENZ USA
Expose black plug (8.1) of dashcam wiring harness (8).
To do this, remove the fabric tape (41) and pocket (40) from dashcam wiring harness (8).

Courtesy of MERCEDES-BENZ USA
Route branch-off line for dashcam at rear of dashcam wiring harness (8) from driver's side fuse and relay module to A-pillar.
Route branch-off line for dashcam at rear behind the crossmember for the instrument panel. Route branch-off line for dashcam at rear above the window airbag (30).

Courtesy of MERCEDES-BENZ USA
Route branch-off line for dashcam at rear of dashcam wiring harness (8) on roof lining to rear up to center of roof lining.

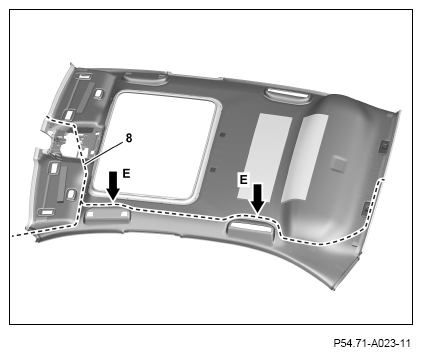

Route branch-off line for dashcam at rear behind supports for front and rear grab handles (arrows E).
Strap down excess lengths of dashcam wiring harness (8) in area of A-pillar.
Then fasten dashcam wiring harness (8) to roof lining using adhesive felt tape.
Shown on model 213.0 with removed roof lining
