Retrofit Wiring Harness For Mercedes-Benz Dashcam At Rear With Existing Mercedes-Benz Dashcam At Front - AZ54.71-P-0003-01LWT

Model 213.2

  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on retrofitting electrical/optical lines   AH82.00-P-0000-01A
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1133-06A Silicone spray Silicone fluid, 0.4 l art. no. 0893 221 000 Adolf Wurth GmbH & Co. KG
BR00.45-Z-1144-02A Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide A 008 989 50 85 09

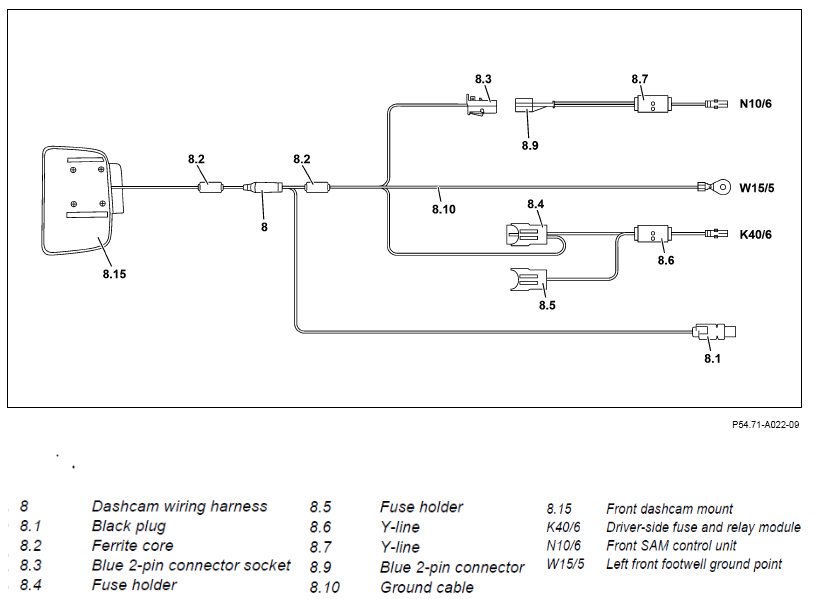

Connection diagram

G13773008Courtesy of MERCEDES-BENZ USA

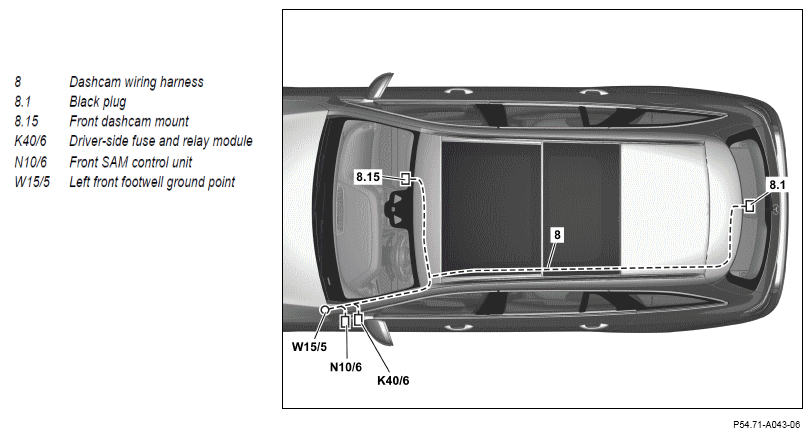

Routing diagram

G13773009Courtesy of MERCEDES-BENZ USA
  1. Push damping (39) to one side.
  2. Expose branch-off line for dashcam at rear.
    G12622026Courtesy of MERCEDES-BENZ USA
  3. Expose black plug (8.1) of dashcam wiring harness (8).

    IMPORTANT To do this, remove the fabric tape (41) and pocket (40) from dashcam wiring harness (8).

    G12621955Courtesy of MERCEDES-BENZ USA
  4. Route branch-off line for dashcam at rear of dashcam wiring harness (8) from driver's side fuse and relay module to A-pillar.

    IMPORTANT Route branch-off line for dashcam at rear behind the crossmember for the instrument panel. Route branch-off line for dashcam at rear above the window airbag (30).

    G12621906Courtesy of MERCEDES-BENZ USA

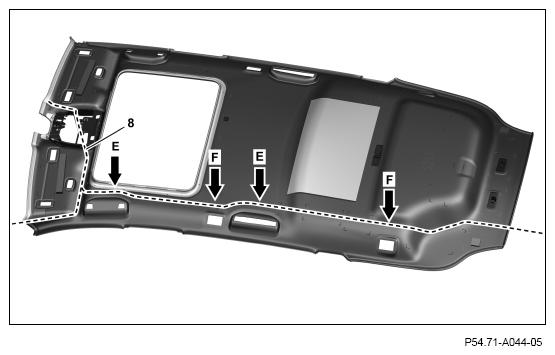

  5. Route branch-off line for dashcam at rear of dashcam wiring harness (8) on roof lining to rear up to center of roof lining.

    IMPORTANT Route branch-off line for dashcam at rear behind mounts for front and rear grab handles (arrows E) and the covers of the mounting eyes for the connecting network (arrows F).

  6. Strap down excess lengths of dashcam wiring harness (8) in area of A-pillar.
  7. Fasten wiring harness for dashcam (8) on roof lining using adhesive felt tape.

    Shown with removed roof lining

    G12621919Courtesy of MERCEDES-BENZ USA

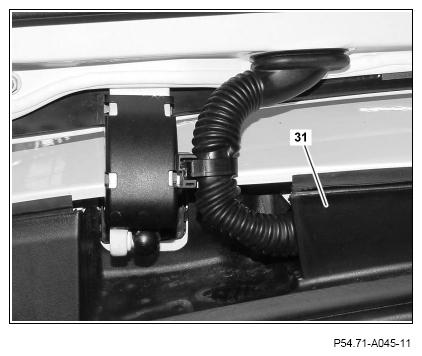

  8. Remove cover for roof frame at rear (31).
    G12621920Courtesy of MERCEDES-BENZ USA

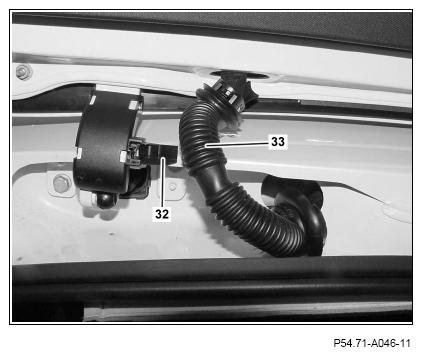

  9. Open holder (32) on left side of vehicle and remove cable duct (33).
  10. Remove cable duct (33) from liftgate and roof frame at rear.
    G12621921Courtesy of MERCEDES-BENZ USA

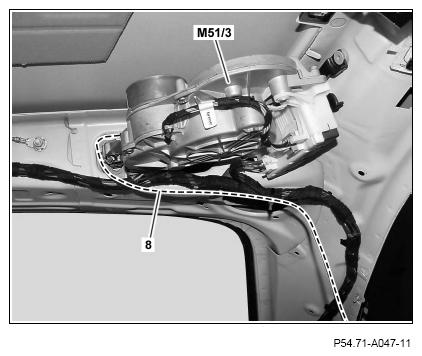

  11. Route dashcam wiring harness (8) through opening next to trunk lid/liftgate control drive unit (M51/3) up to opening for cable duct on roof frame at rear.

    IMPORTANT Use a pull-through device. Pull this through opening for cable duct on roof frame at rear up to opening next to trunk lid/liftgate control drive unit (M51/3).

    Shown with removed roof lining

    G12621922Courtesy of MERCEDES-BENZ USA

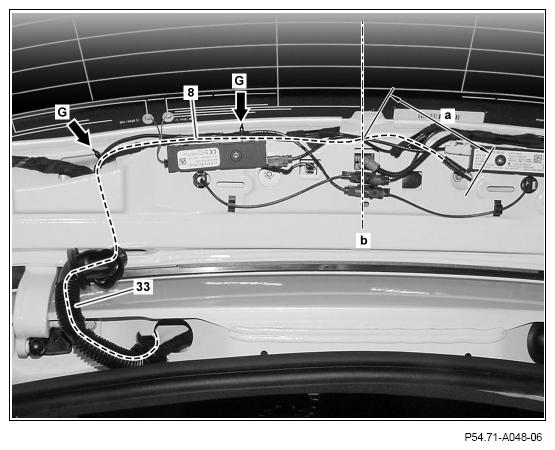

  12. Route dashcam wiring harness (8) through cable duct (33) into liftgate.
  13. Route dashcam wiring harness (8) by dimension (a) through center line of liftgate (line b) and out to right (line b).

    IMPORTANTDimensions:

    a = 150 mm

    Use a pull-through device. The cable duct (33) must be coated on the inside with silicone spray before routing.

  14. Fix wiring harness for dashcam (8) into place using cable ties (arrows G).
  15. Attach cable duct (33).
    G12621923Courtesy of MERCEDES-BENZ USA
