Overview Of System Components, Instrument Cluster (IC) Component Description - GF54.30-P-9996RF
Model 205, 253

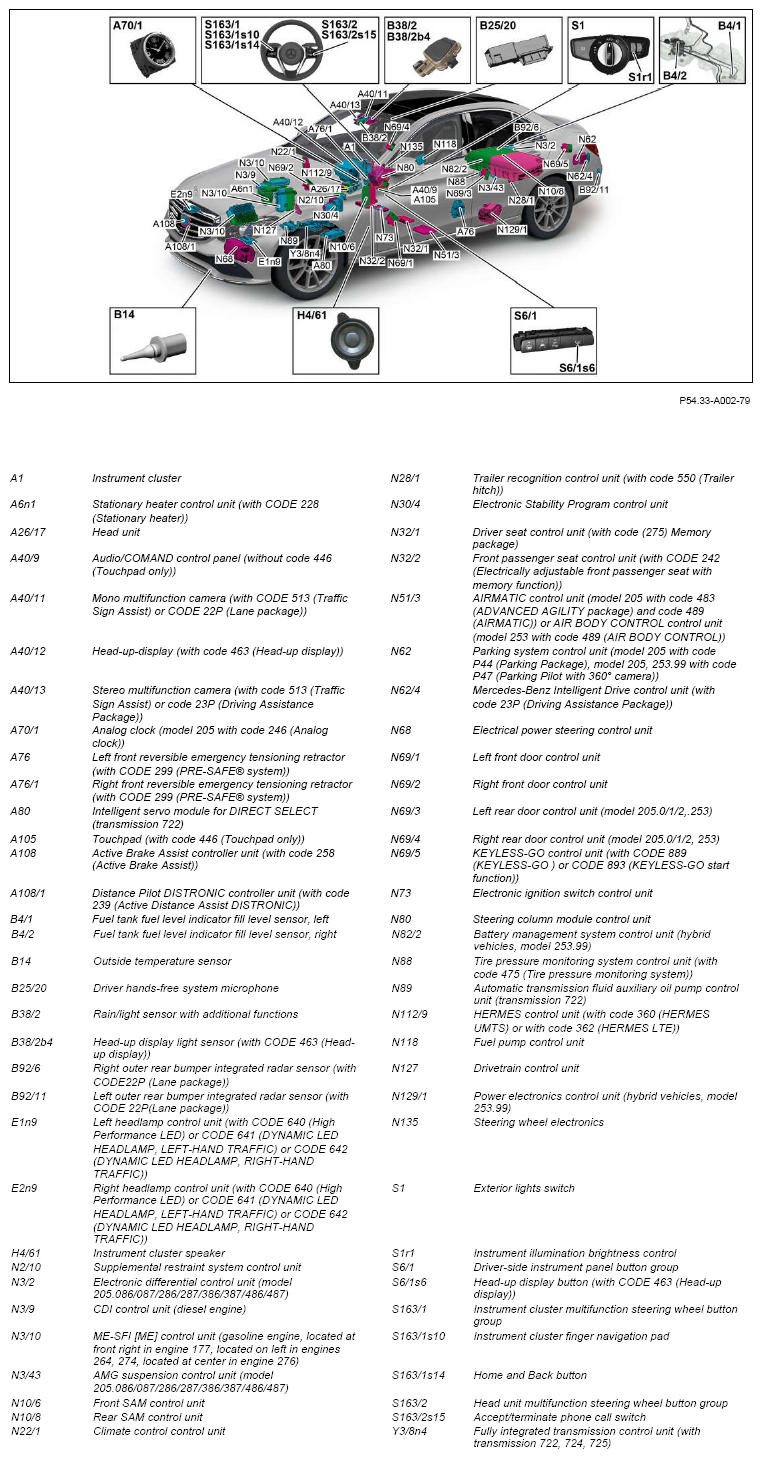

Model 205 as of 01.06.2018 or model 253 (except model 253.99) as of 01.06.2019 or model 253.99, shown on model 205.0
Model 205.4

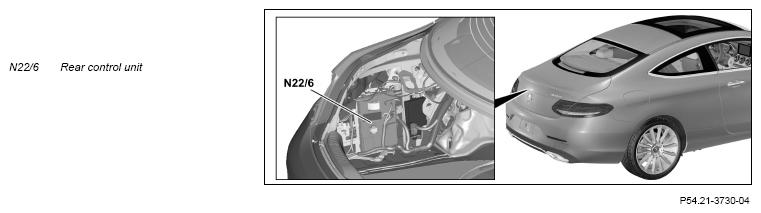

The rear control unit (N22/6) is also installed.
Illustration shows model 205.3
Model 253.99

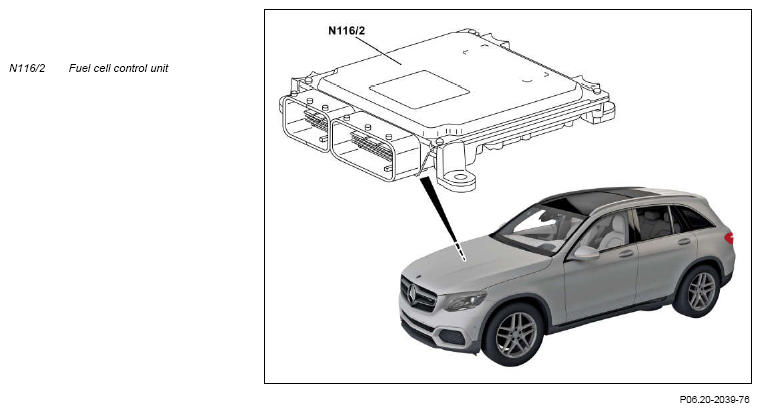

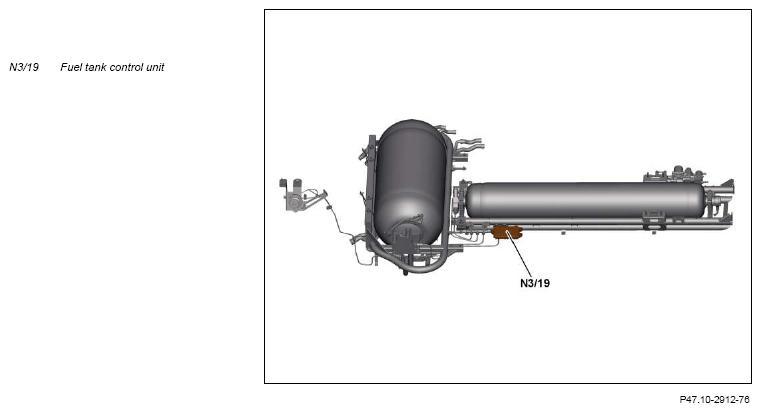

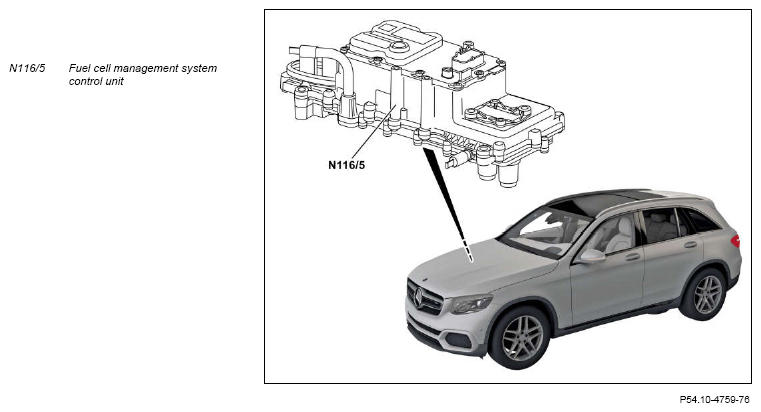

The fuel tank control unit (N3/19), fuel cell control unit (N116/2) and fuel cell management system control unit (N116/5) are also installed.
Shown on model 253.99
Shown on model 253.99
Shown on model 253.99

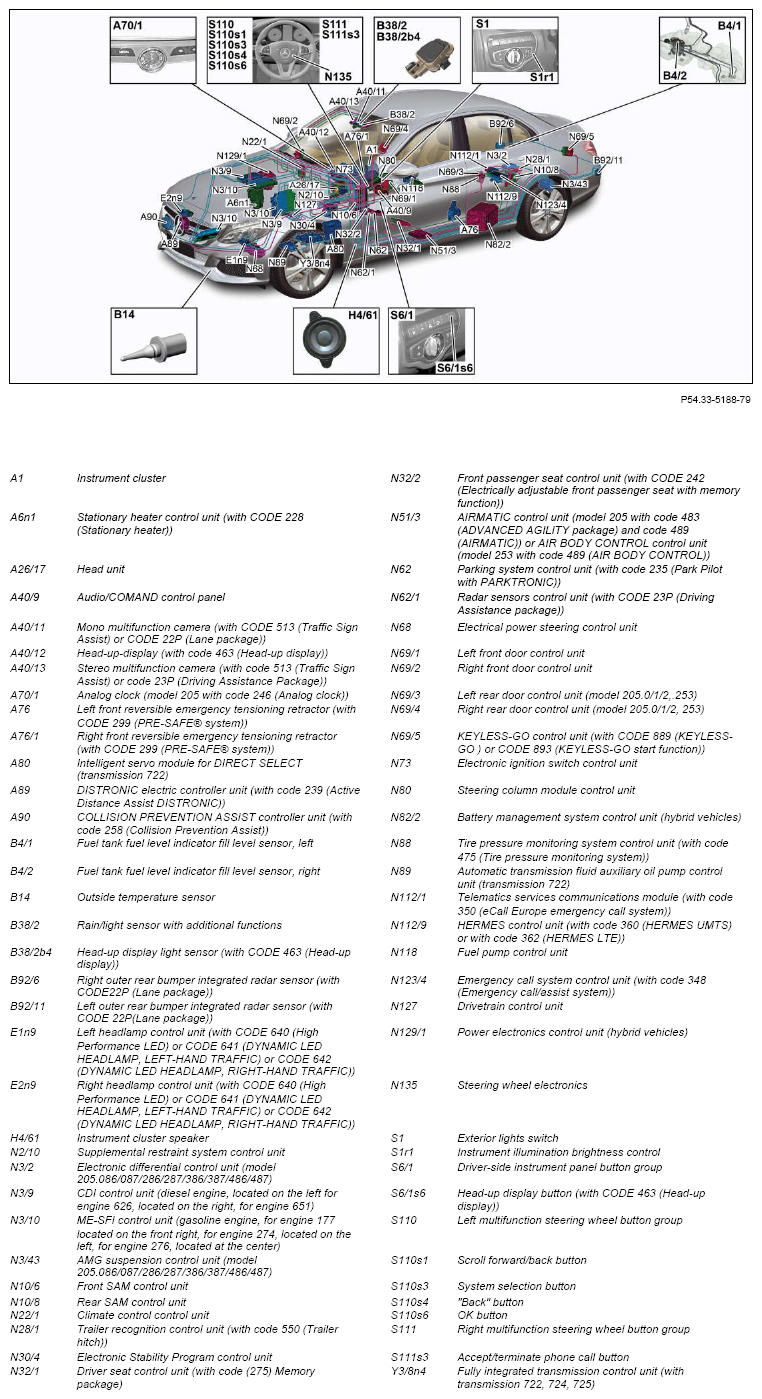

Model 205 up to 31.05.2018 or model 253 (except model 253.99) up to 31.05.2019, shown on model 205.0
Model 205.4
The rear control unit (N22/6) is also installed.

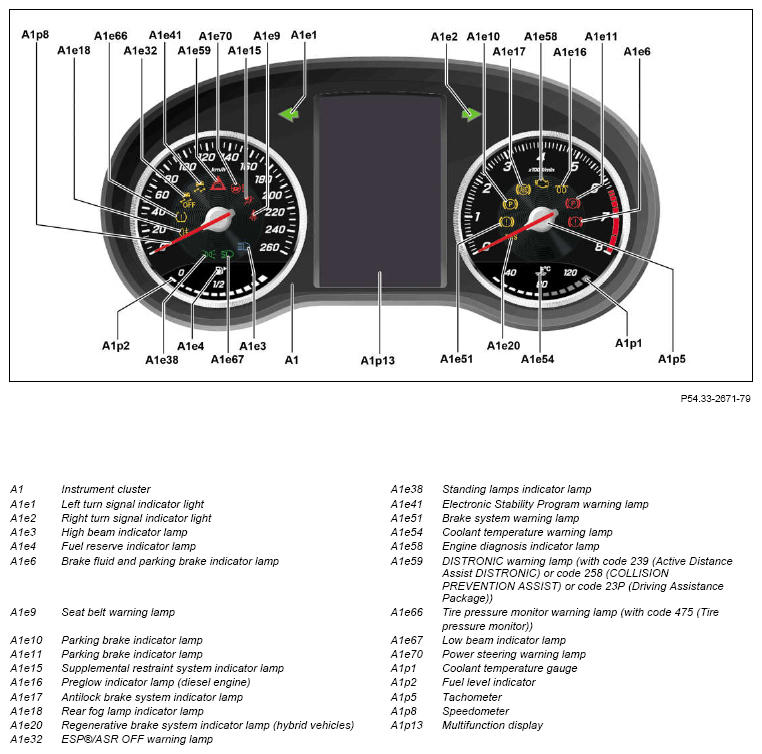

Shown here is ECE variant (Economic Commission for Europe) except model 205.086/087/286/287/386/387/486/487 and except code 464 (Full display digital instrument cluster)
Model 205.086/087/286/287/386/387/486/487
The ESP SPORT indicator lamp (A1e46) is also installed.
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Stationary heater control unit, component description | Model 205, 253 with code 228 (Auxiliary heater) A6n1 |
GF83.70-P-4066RF | |
| Head unit, component description | Model 205 up to model year 2019 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RF | |
| Model 205 up to model year 2019 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) Model 253 (except 253.99) with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFA | ||
| Model 205 as of model year 2019 with code 506 (Audio 20 NTG 5.5 radio) Model 205 with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 253 with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFB | ||
| Model 253 with code 547 (Connect 20 Entry (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 with code 548 (Connect 20 MID (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 with code 549 (Connect 20 HIGH (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFM | ||
| Component description for Audio/COMAND control panel | Model 205 as of model year 2019 except code 446 (Touchpad only) Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 A40/9 |
GF54.21-P-4501RF | |
| Component description for multifunction camera | Model 205 up to model year 2019 with code 22P (Lane tracking package) Model 205 up to model year 2019 with code 23P (Driving Assistance package) Model 205 up to model year 2019 with code 513 (Traffic Sign Assist) Model 205 up to model year 2019 with code 640 (High-performance LED) Model 205 up to model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 up to model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 22P (Lane tracking package) Model 253 (except 253.99) up to model year 2020 with code 23P (Driving Assistance package) Model 253 (except 253.99) up to model year 2020 with code 513 (Traffic Sign Assist) Model 253 (except 253.99) up to model year 2020 with code 640 (High-performance LED) Model 253 (except 253.99) up to model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) A40/11, A40/13 |
GF54.21-P-3300RF | |
| Model 205 as of model year 2019 with code 22P (Lane tracking package) Model 205 as of model year 2019 with code 23P (Driving Assistance package) Model 205 as of model year 2019 with code 513 (Traffic Sign Assist) Model 205 as of model year 2019 with code 640 (High-performance LED) Model 205 as of model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 as of model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 22P (Lane tracking package) Model 253 (except 253.99) as of model year 2020 with code 23P (Driving Assistance package) Model 253 (except 253.99) as of model year 2020 with code 513 (Traffic Sign Assist) Model 253 (except 253.99) as of model year 2020 with code 640 (High-performance LED) Model 253 (except 253.99) as of model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253.99 with code 22P (Lane tracking package) Model 253.99 with code 513 (Traffic Sign Assist) A40/11, A40/13 |
GF54.21-P-3300RFM | ||
| Head-up display, component description | Model 205, 253 with code 463 (Head-up display) A40/12 |
GF54.30-P-6140RF | |
| Component description for front reversible emergency tensioning retractors | Model 205, 253 with code 299 (PRE-SAFE® system) A76, A761 |
GF91.40-P-4020RF | |
| Component description for intelligent servo module for DIRECT SELECT | Model 205 with transmission 722.9 (except 722.930) A80 |
GF27.19-P-4020AHE | |
| Model 205 with transmission 722.930 A80 |
GF27.19-P-4020AIA | ||
| Component description for DISTRONIC electric controller unit | Model 205 up to model year 2019 with code 239 (Active Distance Assist DISTRONIC) Model 253 (except 253.99) up to model year 2020 with code 239 (Active Distance Assist DISTRONIC) A89 |
GF30.30-P-3213RF | |
| COLLISION PREVENTION ASSIST controller unit, component description | Model 205 up to model year 2019 with code 258 (COLLISION PREVENTION ASSIST) Model 253 up to model year 2020 with code 258 (COLLISION PREVENTION ASSIST) A90 |
GF30.30-P-3214RF | |
| Touchpad, component description | Model 205 as of model year 2019 with code 446 (Touchpad only) Model 253 (except 253.99) as of model year 2020 with code 446 (Touchpad only) Model 253.99 with code 446 (Touchpad only) A105 |
GF54.21-P-4511RF | |
| Active Brake Assist controller unit, component description | Model 205 as of model year 2019 with code 258 (Active Brake Assist System) Model 253 (except 253.99) as of model year 2020 with code 258 (Active Brake Assist System) A108 |
GF30.30-P-3222RFM | |
| DISTRONIC Distance-Pilot controller unit, component description | Model 205 as of model year 2019 with code 239 (Active Distance Assist DISTRONIC) Model 253 (except 253.99) as of model year 2020 with code 239 (Active Distance Assist DISTRONIC) Model 253.99 with code 239 (Active Distance Assist DISTRONIC) A108/1 |
GF30.30-P-3218RFM | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005RF | |
| Component description for bumper radar sensors | Model 205 up to model year 2019 with code 22P (Lane tracking package) Model 205 up to model year 2019 with code 23P (Driving Assistance package) Model 253 (except 253.99) up to model year 2020 with code 22P (Lane tracking package) Model 253 (except 253.99) up to model year 2020 with code 23P (Driving Assistance package) B92/6, B92/11 |
GF30.30-P-3302RF | |
| Model 205 as of model year 2019 with code 234 (Blind Spot Monitoring) Model 205 as of model year 2019 with code 23P (Driving Assistance package) Model 253 (except 253.99) as of model year 2020 with code 234 (Blind Spot Monitoring) Model 253 (except 253.99) as of model year 2020 with code 23P (Driving Assistance package) Model 253.99 with code 234 (Blind Spot Monitoring) B92/6, B92/11 |
GF30.30-P-3302RFM | ||
| Headlamp control unit, component description | Model 205 up to model year 2019 with code 631 (Static LED headlamps, left-hand traffic) Model 205 up to model year 2019 with code 632 (Headlamps, LED, static, right-side traffic) Model 205 up to model year 2019 with code 640 (High-performance LED) Model 205 up to model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 up to model year 2019 with code 642 (Dynamic LED headlamps, right hand traffic) Model 253 (except 253.99) up to model year 2020 with code 631 (Static LED headlamps, left-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 632 (Headlamps, LED, static, right-side traffic) Model 253 (except 253.99) up to model year 2020 with code 640 (High-performance LED) Model 253 (except 253.99) up to model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 642 (Dynamic LED headlamps, right hand traffic) E1n9, E2n9 |
GF82.10-P-2020RF | |
| Model 205 as of model year 2019 with code 631 (Static LED headlamps, left-hand traffic) Model 205 as of model year 2019 with code 632 (Headlamps, LED, static, right-side traffic) Model 205 as of model year 2019 with code 640 (High-performance LED) Model 205 as of model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 as of model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 631 (Static LED headlamps, left-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 632 (Headlamps, LED, static, right-side traffic) Model 253 (except 253.99) as of model year 2020 with code 640 (High-performance LED) Model 253 (except 253.99) as of model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253.99 with code 631 (Static LED headlamps, left-hand traffic) Model 253.99 with code 632 (Headlamps, LED, static, right-side traffic) E1n9, E2n9 |
GF82.10-P-2020RFM | ||
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Electric differential lock control unit, component description | Model 205 with code 467 (Electronic locking differential) N3/2 |
GF35.40-P-2000RF | |
| Component description for CDI control unit | Model 205 with engine 626 N3/9 |
GF07.16-P-6000ORB | |
| Model 205 (except 205.012/212) with engine 651.9 with code 494 (US version) Model 253 with engine 651.9 N3/9 |
GF07.16-P-6000OLD | ||
| Model 205 (except 205.012/212) with engine 651 except code 494 (US version) N3/9 |
GF07.16-P-6000OLE | ||
| Model 205.012/212 with engine 651.9 N3/9 |
GF07.16-P-6000OLC | ||
| Model 253 with engine 642.8 N3/9 |
GF07.16-P-6000OGY | ||
| Model 205 (except 205.013/213) with engine 654.9 N3/9 |
GF07.16-P-6000ORF | ||
| Model 205.013/213 with engine 654.9 N3/9 |
GF07.16-P-6000ORH | ||
| Component description for ME-SFI (ME) control unit | Model 205, 253 with engine 177.9 N3/10 |
GF07.61-P-6000MNA | |
| Model 205 (except 205.047/053/054/147/247/253), 253 (except 253.354/954) with engine 274.9 N3/10 |
GF07.61-P-6000MRA | ||
| Model 205.047/053/054/147/247/253, 253.954 with engine 274.9 N3/10 |
GF07.61-P-6000MRH | ||
| Model 205, 253 with engine 276.8 N3/10 |
GF07.61-P-6000MMV | ||
| Model 205 with engine 264.9 N3/10 |
GF07.61-P-6000MRS | ||
| Fuel tank control unit, component description | Model 253.9 with engine 780 N3/19 |
GF47.10-P-1001RFW | |
| AMG sports suspension control unit, component description | Model 205 with code 466 (Active engine mount) Model 205 with code 467 (Electronic locking differential) N3/43 |
GF54.21-P-1002RF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250RF | |
| Rear control unit, component description | Model 205.4 N22/6 |
GF54.21-P-4134RF | |
| Component description for trailer recognition control unit | Model 205, 253 with code 550 (Trailer coupling) N28/1 |
GF31.19-P-4050RF | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253), 253 (except 253.354/954/99) N30/4 |
GF42.45-P-5119RF | |
| Model 205.012/013/047/053/054/147/212/213/247/253, 253.354/954/99 N30/4 |
GF42.45-P-5119RFH | ||
| Component description for driver seat control unit | Model 205, 253 with code 221 (Electrically adjustable left driver seat) Model 205, 253 with code 275 (Memory package) N32/1 |
GF91.29-P-5231RF | |
| Component description for front passenger seat control unit | Model 205, 253 with code 222 (Electrically adjustable right front seat) Model 205, 253 with code 242 (Front passenger seat, electrically adjustable with memory function) N32/2 |
GF91.29-P-5241RF | |
| AIRMATIC control unit, component description | Model 205 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N51/3 |
GF32.22-P-5110RF | |
| AIR BODY CONTROL control unit, component description | Model 253 with code 489 (AIR BODY CONTROL) N51/3 |
GF32.22-P-5111RF | |
| Parking system control unit component description | Model 205 up to model year 2019 with code 235 (Parking Pilot with PARKTRONIC) Model 253 (except 253.99) up to model year 2020 with code 235 (Parking Pilot with PARKTRONIC) N62 |
GF54.65-P-5002RF | |
| Parking system control unit, component description | Model 205 as of model year 2019 with code P44 (Parking package) Model 205 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) as of model year 2020 with code P44 (Parking package) Model 253 (except 253.99) as of model year 2020 with code P47 (Parking Pilot with 360° camera) Model 253.99 with code P47 (Parking Pilot with 360° camera) N62 |
GF54.65-P-5004RFM | |
| Component description for radar sensors control unit | Model 205 up to model year 2019 with code 23P (Driving Assistance package) Model 253 up to model year 2020 with code 23P (Driving Assistance package) N62/1 |
GF30.30-P-3301RF | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 205 as of model year 2019 with code 23P (Driving Assistance package) Model 253 (except 253.99) as of model year 2020 with code 23P (Driving Assistance package) N62/4 |
GF30.30-P-3312RFM | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF | |
| Component description for rear door control unit | Model 205.0/1/2, 253 N693, N694 |
GF72.29-P-6021RF | |
| Component description for KEYLESS-GO control unit | Model 205 up to model year 2019 with code 889 (KEYLESS-GO) Model 205 up to model year 2019 with code 893 (KEYLESS-GO) Model 253 (except 253.99) up to model year 2020 with code 889 (KEYLESS-GO) Model 253 (except 253.99) up to model year 2020 with code 893 (KEYLESS-GO) N69/5 |
GF80.61-P-4204RF | |
| Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N69/5 |
GF80.61-P-4204RFM | ||
| Component description for the electronic ignition lock control unit | Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 N73 |
GF80.57-P-6001RF | |
| Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N73 |
GF80.57-P-6001RFM | ||
| Component description for steering column tube module control unit | Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 N80 |
GF54.21-P-6051RF | |
| Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N80 |
GF54.21-P-6051RFM | ||
| Component description for battery management system control unit | Model 205.012/212 with engine 651.921 Model 205.013/213 with engine 654.920 Model 205.047/147/247, 253.954 with engine 274.920 Model 205.053/253 with engine 274.920 Model 253.354 with engine 274.920 N82/2 |
GF54.10-P-3012RFH | |
| Component description for tire pressure monitor control unit | Model 205, 253 with code 475 (Tire pressure monitoring system) N88 |
GF40.15-P-5124RF | |
| Component description for transmission oil auxiliary oil pump control unit | Model 205 with transmission 722.9 (except 722.930) N89 |
GF27.19-P-4031AHE | |
| Model 205 with transmission 722.930 N89 | GF27.19-P-4031AIA | ||
| Telematics services communications module, component description | Model 205, 253 up to model year 2017 with code 350 (Ecall emergency call system, Europe) N112/1 |
GF82.85-P-0220RF | |
| HERMES control unit, component description | Model 205, 253 with code 362 (HERMES LTE) Model 205 up to model year 2019 with code 360 (HERMES UMTS) Model 253 (except 253.99) with code 360 (HERMES UMTS) N112/9 |
GF82.85-P-0221RF | |
| Fuel cell control unit, component description | Model 253.9 with engine 780 N116/2 |
GF06.20-P-1007RFW | |
| Fuel cell management system control unit component description | Model 253.9 with engine 780 N116/5 |
GF06.20-P-2102RFW | |
| Component description for fuel pump control unit | Model 205 (except 205.047/053/054/147/247/253), 253 (except 253.354/954) with engine 274.9 N118 |
GF47.40-P-2001MRA | |
| Model 205.047/053/054/147/247/253, 253.354/954 with engine 274.9 N118 |
GF47.40-P-2001MRH | ||
| Model 205, 253 with engine 276.8 N118 |
GF47.40-P-2001MMV | ||
| Model 205, 253 with engine 177.9 N118 |
GF47.40-P-2001MNA | ||
| Model 205.012/212 with engine 651.9 N118 |
GF47.40-P-2001OLC | ||
| Model 205 (except 205.012/212), 253 with engine 651.9 Model 253 with engine 642.8 N118 |
GF47.40-P-2001OLD | ||
| Model 205 with engine 626 N118 |
GF47.40-P-2001ORB | ||
| Model 205 with engine 264.9 N118 |
GF47.40-P-2001MRS | ||
| Model 205 with engine 654.9 N118 |
GF47.40-P-2001ORH | ||
| Component description for emergency call system control unit | Model 205, 253 up to model year 2017 with code 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212RFU | |
| Drivetrain control unit, component description | Model 205, 253 with engine 177.9 N127 |
GF54.21-P-2141MNA | |
| Model 205 (except 205.047/053/054/147/247/253), 253 (except 253.354/954) with engine 274.9 N127 |
GF54.21-P-2141MRA | ||
| Model 205.047/053/054/147/247/253, 253.354/954 with engine 274.9 N127 |
GF54.21-P-2141MRH | ||
| Model 205, 253 with engine 276.8 N127 |
GF54.21-P-2141RF | ||
| Model 205.012/212 with engine 651.9 N127 |
GF54.21-P-2141OLC | ||
| Model 205 (except 205.012/212), 253 with engine 651.9 N127 |
GF54.21-P-2141OLD | ||
| Model 205 with engine 626 N127 |
GF54.21-P-2141ORB | ||
| Model 205 with engine 264.9 N127 |
GF54.21-P-2141MRS | ||
| Model 205 with engine 654.9 N127 |
GF54.21-P-2141ORH | ||
| Component description for power electronics control unit | Model 205.012/212 with engine 651.921 Model 205.013/213 with engine 654.920 Model 205.047/147/247, 253.954 with engine 274.920 Model 205.053/253 with engine 274.920 Model 253.354 with engine 274.920 N129/1 |
GF08.20-P-1001RFH | |
| Steering wheel electronics control unit, component description | Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N135 |
GF82.90-P-4006RFM | |
| Component description for fully integrated transmission control unit | Model 205 with transmission 722.9 (except 722.930) Y38n4 |
GF27.60-P-5165AHE | |
| Model 205 with transmission 722.930 Y38n4 | GF27.60-P-5165AIA | ||
| Model 205 with transmission 724.2 Y38n4 | GF27.60-P-5165RFH | ||
| Model 205 with transmission 725.0 (except 725.017) Y38n4 |
GF27.60-P-5165ANG | ||
| Model 253 with transmission 725.0 Y38n4 |
GF27.60-P-5165ANI | ||
| Model 205 with transmission 725.017 Y38n4 |
GF27.60-P-5165AHH | ||
| Table of contents for function description of instrument cluster (IC) | GF54.30-P-0997RF |
