Component Description For Audio/Comand Control Panel - GF54.21-P-4501RF
Model 205
as of model year 2019
except code 446 (Touchpad only)
Model 205
up to model year 2019
Model 253 (except 253.99)
up to model year 2020

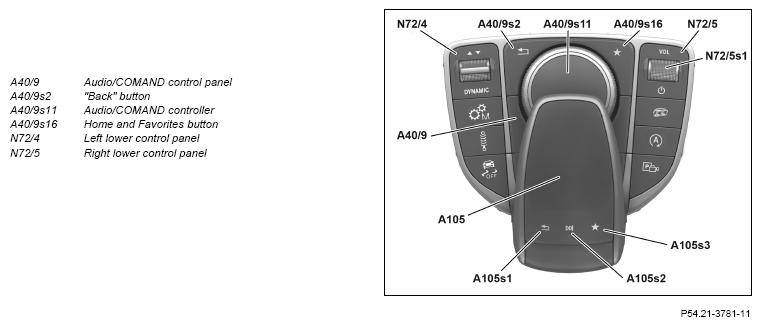

Shown on vehicles with code U78 (AMG Sport exhaust system) as of 01.06.2016

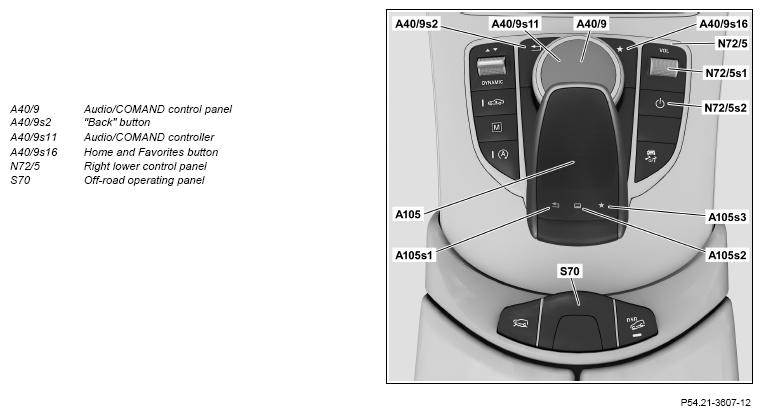

Shown on model 253.9 with code 531 (COMAND APS), with code 430 (Off-road package) and automatic transmission, valid for model 205 (except off-road operating panel (S70)) as of 01.06.2015 up to 31.05.2016

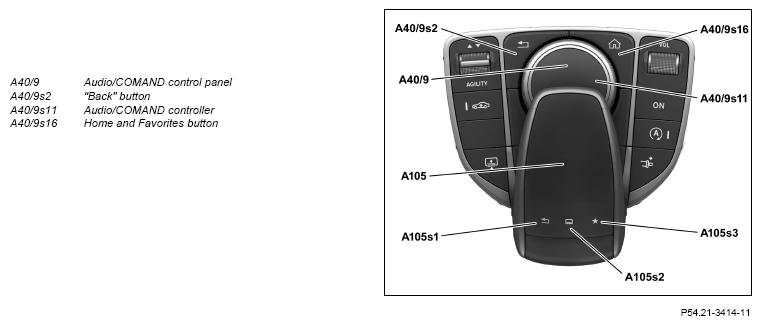

Shown on model 205 with code 531 (COMAND APS), up to 31.05.2015
Location
The Audio/COMAND control panel is located on the center console.
Tasks
The Audio/COMAND control panel is the central control for the telematics functions. With the Audio/COMAND control panel, the functions that can be displayed on the Audio/COMAND display (A40/8) can be operated. In the process, the Audio/COMAND control panel performs the following tasks individually:
- Operation of telematics functions
- Receiving signals
- Sending signals
Operation of telematics functions
The Audio/COMAND control panel in its role as central control includes the Audio/COMAND controller which when tilted, pressed and rotated enables navigation in menus and lists, the selection of display-generated buttons (softkeys) and the input of characters. The "Back" button and the "Home" and "Favorites" buttons support menu navigation. Using the "Back" button, you can switch to the last display with a short press and switch to the main menu with a long press. The "Home" and "Favorite" button can be used to call up the main menu and the functions saved as favorites.
Receiving signals
The Audio/COMAND control panel receives the following signals:
- Control signals of lower control panel at left, lower control panel at right and upper control panel control unit (N72/1) over LCP-LIN (LIN A3)
- Control signals of the off-road operating panel (model 253.9 with code 430 (Off-road package)) via a direct line
- CAN messages via telematics CAN (CAN A)
Sending signals
The Audio/COMAND control panel sends the following signals:
- Own control signals and control signal of the left lower control panel, the right lower control panel, the upper control panel control unit and the off-road operating panel via telematics CAN to the head unit (A26/17)
| Wiring diagram, front central operating unit | Model 205 up to model year 2019Model 253 (except 253.99) up to model year 2020 | PE82.00-P-2060-97FBA | |
| Wiring diagram for Audio/COMAND control panel | Model 205 as of model year 2019 except code 446 (Touchpad only) | PE82.00-P-2063-97FBA |
