Inner Longitudinal Member Shell On Entry Replacement - Ar63.30-S-1164E
Model 447, 448
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. Model 447 with engine 780 |
AS00.00-Z-0035-01A | |
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with engine 780 | AH00.00-Z-0300-01A |
| Notice | Special instructions for lifting and supporting vehicle | AH00.60-S-0100-01KOA | |
| Notice | General information on body repair | AH60.00-P-0001-01KOA | |
| Notice | Measures for preventing damage to components when performing electric welding and soldering work | AH60.00-P-0001-02A | |
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove all detachable parts in area of repair point. | ||
| 2 | Cover all detachable parts remaining in vehicle with welding protection blankets. | ||
| 3 | Partially remove longitudinal member outer shell at entrance. | AR63.30-S-1110E | |

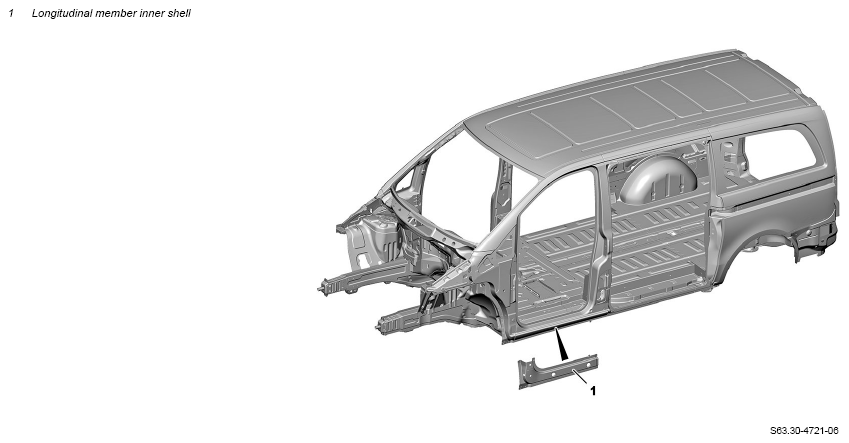

| 4 | Remove longitudinal member inner shell (1) at entrance. | Rotary wire brush Wet and dry vacuum cleaner |
AR63.30-S-1164-01E |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| 5 | Prepare longitudinal member inner shell (1) at entrance. | Wet and dry vacuum cleaner |
AR63.30-S-1164-02E |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| Install | |||
| 6 | Install and weld in longitudinal member inner shell (1) at entrance. | AR63.30-S-1164-03E | |
| 000 588 12 84 00 Welder | WS00.00-P-0318K | ||
| 000 588 13 84 00 Welder | WS60.00-P-0437K | ||
Rotary wire brush Squeeze gun Angle grinder Wet and dry vacuum cleaner |
|||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| Seam seal 300 ml in black or white | *BR00.45-Z-1003-01A | ||
| 7 | Partially install longitudinal member outer shell at entrance. | AR63.30-S-1110E | |
| 8 | Install all detachable parts in area of repair point. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
| BR00.45-Z-1003-01A | Seam seal 300 ml in black or white | A 005 989 63 20 |
