Inner Longitudinal Member Shell On Entry Removal - Ar63.30-S-1164-01E

Model 447, 448

Courtesy of MERCEDES-BENZ USA

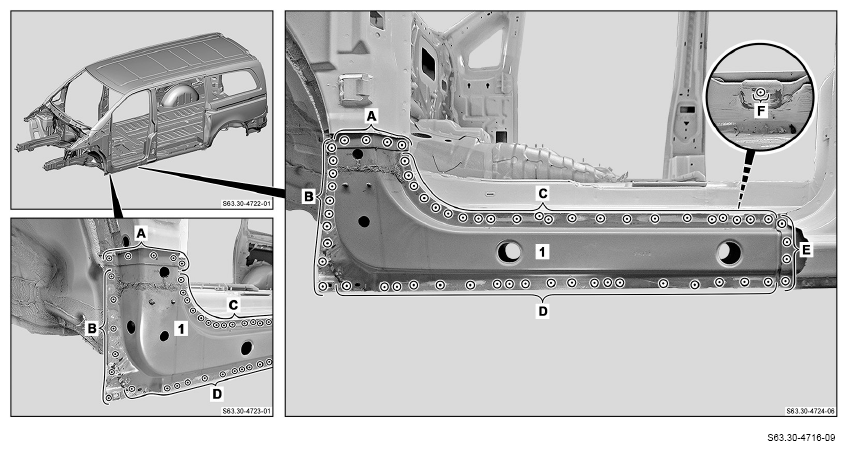

1. Expose spot welds on longitudinal member shell (1) and cut out (areas A to F).
2. Remove damaged longitudinal member inner shell (1).

   Courtesy of MERCEDES-BENZ USA

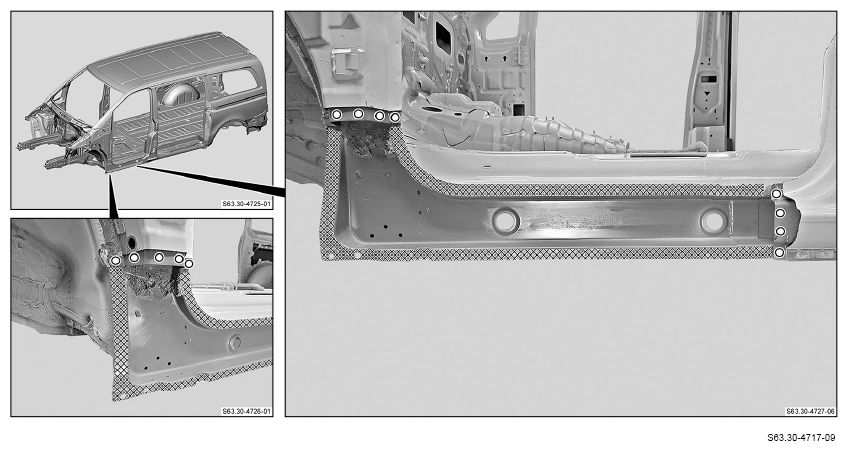

3. Grind mating surfaces down to bare metal in crosshatched areas and around holes.

   Sand down spot weld flanges to bare metal on both sides.

4. Remove shavings and drill chips.
5. Coat insides of spot weld flanges with zinc dust paint.
