Inner Longitudinal Member Shell On Entry Preparation - Ar63.30-S-1164-02E

Model 447, 448

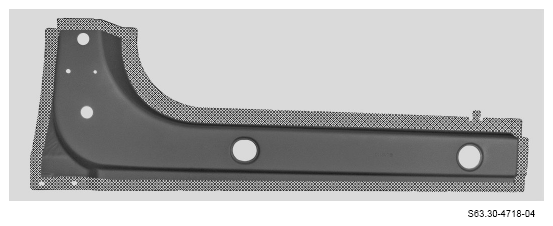

1. Grind mating surfaces down to bare metal in the cross-hatched inner C-pillar sidewall.

   Sand down spot weld flanges to bare metal on both sides.

2. Remove shavings and drill chips.
3. Coat insides of spot weld flanges with zinc dust paint.

Courtesy of MERCEDES-BENZ USA
