Remove/Install Cover Of Rear Axle Differential - AR35.31-P-0555LWC
Transmission 725.0 in model 205 (except 205.386/387/486/487), 253 (except 253.388/389/988/989) with code 700 (Technology Local Content China)
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Remove/install | |||
| 1 | Secure vehicle on vehicle lift. | AR00.60-P-0100CW | |
| 2 | Drain oil from rear axle differential (50). | AR35.31-P-0520-06CWC | |
| *BA35.31-P-1003-02H | |||
| Loctite 272 sealing adhesive | *BR00.45-Z-1102-02A | ||
| Loctite 7063 cleaning spray (150 ml) | *BR00.45-Z-1046-04A | ||
| 3 | Remove propeller shaft from rear axle differential (50). | Transmission 725.0 in model 205 (except 205.386/387/486/487) with code 700 (Technology Local Content China) | AR41.10-P-0050LW |
| Transmission 725.0 in model 253 (except 253.388/389/988/989) with code 700 (Technology Local Content China) | AR41.10-P-0050LWX | ||
| 4 | Secure rear axle differential (50) against falling down using tensioning strap on rear axle carrier (4). | Otherwise the rear axle differential mounting is destroyed. |
|
| 5 | Remove screws (3) of rear axle differential mounting at rear. | *BA35.10-P-1006-01H | |
| 6 | Support rear axle differential (50) using major assembly support. | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 7 | Release tensioning strap of rear axle differential (50) on rear axle carrier (4). | ||
| 8 | Secure rear axle differential (50) against falling down using tensioning strap on major assembly support. | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 9 | Remove screw (5) of front rear axle differential mounting. | Rear axle differential to front adapter | *BA35.10-P-1005-01H |
| 10 | Lower rear axle differential (50). | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||

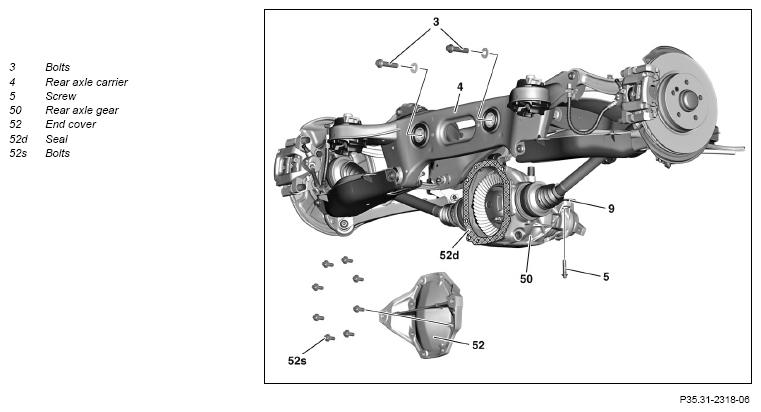

| 11 | Remove screws (52s) and remove end cover (52). | ||
| *BA35.31-P-1001-02H | |||
| 12 | Remove seal (52d). | ||
| 13 | Clean sealing surfaces on end cover (52) and on rear axle differential (50). | AR01.00-P-0050-01A | |
| Loctite 7063 cleaning spray (150 ml) | *BR00.45-Z-1046-04A | ||
| Loctite 7200 | *BR00.45-Z-1038-04A | ||
| 14 | Install in the reverse order. | ||
| Check | |||
| 15 | Check oil level in rear axle differential (50) and correct if necessary. | AR35.31-P-0520-03LW | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| *BA35.31-P-1002-02H | |||
| *BF35.31-P-1002-02B | |||
| BF35.31-P-1004-01U | |||
| Loctite 7063 cleaning spray (150 ml) | *BR00.45-Z-1046-04A | ||
| Sealant, Omnifit 100H (50 g) | *BR00.45-Z-1061-01A | ||
| 16 | Check rear axle differential (50) for leak tightness. |
REAR AXLE CARRIER
| Number | Designation | Model 205 | Model 253 | |||
|---|---|---|---|---|---|---|
| BA35.10-P-1005-01H | Rear axle differential to front adapter | Rear axle differential (steel) | Nm | 65 | 65 | |
| Rear axle differential (aluminum) | Stage 1 | Nm | 40 | 40 | ||
| Stage 2 | ∠° | 45 | 45 | |||
REAR AXLE CARRIER
| Number | Designation | Model 205 | Model 253 | |
|---|---|---|---|---|
| BA35.10-P-1006-01H | Bolt, rear axle differential to rear transverse bridge | Nm | 170 | 170 |
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 205 | Model 253 | ||
|---|---|---|---|---|---|
| BA35.31-P-1001-02H | Bolt, end cover to rear axle differential | Stage 1 | Nm | 30 | 30 |
| Stage 2 | ∠° | 45 | 45 | ||
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 205 | Model 253 | |
|---|---|---|---|---|
| BA35.31-P-1002-02H | Oil filler screw of rear axle differential | Nm | 50 | 50 |
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 205 | Model 253 | |
|---|---|---|---|---|
| BA35.31-P-1003-02H | Drain screw to rear axle differential | Nm | 50 | 50 |
REAR AXLE GEAR
| Number | Designation | Model 253 (except253.388/389/988/989/992/993) with code 700 (Technology Local Content China) | |||
|---|---|---|---|---|---|
| BF35.31-P-1002-02B | Filling capacity | Rear axle differential 200 C | Liter | 1, 0 | |
| Specification | BB00.40-P-0235-07A | ||||
REAR AXLE GEAR
| Number | Designation | Model 205 (except 205.086/087/286/287/386/387/486/487) with code 700 (Technology Local Content China) | Model 205.086/087/286/287/386/387/486/487 | |
|---|---|---|---|---|
| BF35.31-P-1004-01U | Filling capacity | Rear axle differential 200 C | 1, 0 | - |
| Overview of specified transmission oils | BB00.40-P-0231-01A | - | ||
| References, approved axle gear oils | BB00.40-P-0235A | - | ||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1038-04A | Loctite 7200 | Henkel AG & Co. KGaA |
| BR00.45-Z-1046-04A | Loctite 7063 cleaning spray (150 ml) | A 001 986 71 71 10 |
| BR00.45-Z-1061-01A | Sealant, Omnifit 100H (50 g) | A 002 989 23 71 |
| BR00.45-Z-1102-02A | Loctite 272 sealing adhesive | Henkel AG & Co. KGaA |
