Check Rear Axle Differential Oil Level, Correct If Necessary - AR35.31-P-0520-03LW
Model 205 (except 205.386/387/486/487), 253 (except 253.388/389/988/989/992/993)
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A |
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 205 | Model 253 | |
|---|---|---|---|---|
| BA35.31-P-1002-02H | Oil filler screw of rear axle differential | Nm | 50 | 50 |
REAR AXLE GEAR
| Number | Designation | Model 205 (except 205.086/087/286/287/386/387/486/487) except code 700 (Technology Local Content China) | ||
|---|---|---|---|---|
| BF35.31-P-1001-01U | FE rear axle differential filling capacity | FE HAG187 | Liter | 0, 85 |
| Specification | BB00.40-P-0235-07A | |||
| FE HAG200 | Liter | 1, 0 | ||
| Specification | BB00.40-P-0235-07A | |||
| FE HAG215 | Liter | 1, 1 | ||
| Specification | BB00.40-P-0235-07A | |||
| FE HAG225 | Liter | 1, 3 | ||
| Specification | BB00.40-P-0235-07A | |||
REAR AXLE GEAR
| Number | Designation | Model 253 (except 253.388/389/988/989/992/993) except code 700 (Technology Local Content China) | |||
|---|---|---|---|---|---|
| BF35.31-P-1001-02B | Filling capacity | ALU rear axle differential 183 | Liter | 0, 8 | |
| Specification | BB00.40-P-0239-71A | ||||
| ALU rear axle differential 197 | Liter | 0, 9 | |||
| Specification | BB00.40-P-0239-71A | ||||
| ALU HAG205 | Liter | 1, 0 | |||
| Specification | BB00.40-P-0239-71A | ||||
REAR AXLE GEAR
| Number | Designation | Model 205 (except 205.086/087/286/287/386/387/486/487) except code 700 (Technology Local Content China) | Model 205 (except 205.086/087/286/287/386/387/486/487) with code 700 (Technology Local Content China) | |
|---|---|---|---|---|
| BF35.31-P-1002-01U | ALU rear axle differential filling capacity | ALU HAG183 | 0, 8 | - |
| Specification | BB00.40-P-0239-71A | - | ||
REAR AXLE GEAR
| Number | Designation | Model 253 (except253.388/389/988/989/992/993) with code 700 (Technology Local Content China) | |||
|---|---|---|---|---|---|
| BF35.31-P-1002-02B | Filling capacity | Rear axle differential 200 C | Liter | 1, 0 | |
| Specification | BB00.40-P-0235-07A | ||||
REAR AXLE GEAR
| Number | Designation | Model 205.086/087/286/287/386/387/486/487 | |
|---|---|---|---|
| BF35.31-P-1003-01U | Filling capacity for rear axle differential with differential lock | Liter | 1, 2 |
| Specification | BB00.40-P-0235-61A | ||
REAR AXLE GEAR
| Number | Designation | Model 205 (except 205.086/087/286/287/386/387/486/487) with code 700 (Technology Local Content China) | |
|---|---|---|---|
| BF35.31-P-1004-01U | Filling capacity | Rear axle differential 200 C | 1, 0 |
| Overview of specified transmission oils | BB00.40-P-0231-01A | ||
| References, approved axle gear oils | BB00.40-P-0235A | ||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1046-04A | Loctite 7063 cleaning spray (150 ml) | A 001 986 71 71 10 |
| BR00.45-Z-1061-01A | Sealant, Omnifit 100H (50 g) | A 002 989 23 71 |
Check oil level at interior temperature only and not when the rear axle differential is at operating temperature. Otherwise, when the rear axle differential is at operating temperature, required oil could escape.
Cleaning

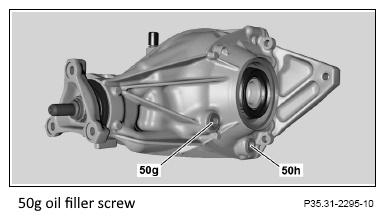

- Clean area around oil filler screw (50 g).
- Remove and replace oil filler screw (50g).
Check
- Check and correct oil level.
With the correct oil level the oil reaches up to the bottom edge of the threaded hole.
If necessary, add oil or drain off oil until the oil only drips out of the threaded hole.
Cleaning
- New oil filler screw (50g) and threaded hole in rear axle differential with cleaning spray.
- Apply one drop of to lower third of thread of oil filler screw (50g).
- Screw oil filler screw (50g) immediately into the rear axle differential and tighten to the specified torque
.
