Remove/Install Drive Pinion - AR35.30-P-0458GW
MODEL 463 as of model year 2013/facelift 2012
| Removing | |||

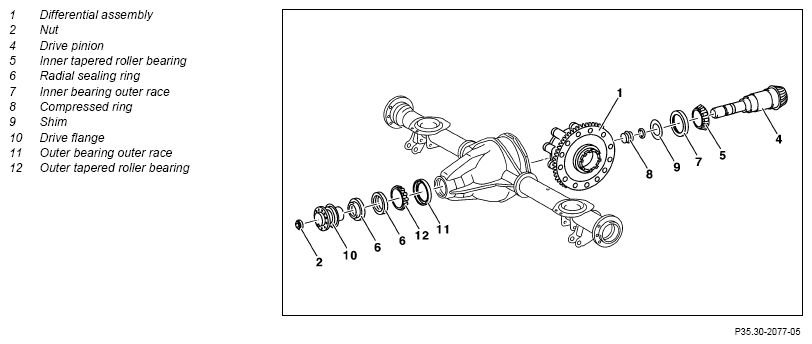

| 1 | Remove differential assembly (1) | AR35.30-P-0432GW | |
| 2 | Remove drive flange (10) from drive pinion (4) | AR35.30-P-0472GW | |
| 3 | Remove radial sealing rings (6) on drive pinion (4) | AR35.30-P-4670GW | |
| 4 | Drive in drive pinion (4) using suitable drift from the axle housing and remove together with strain ring (8) | ||
| Clean | |||
| 5 | Clean parts | Cold degreasing agent/cold cleaning solvent HAKU 1025-920 | *BR00.45-Z-1051-04A |
| Checking | |||
| 6 | Check all parts for damage and wear and replace if necessary | ↓ |
|
| Disassemble/assemble drive pinion (4). | AR35.30-P-0459GW | ||
| Install | |||
| 7 | Mount strain ring (8) to drive pinion (4) | ||
| 8 | Install drive pinion (4) | ||
| Fig 2 | |||
| 9 | Drive in outer tapered roller bearing (12) using suitable sleeve | ||
| 10 | Install radial sealing rings (6) on drive pinion (4) | AR35.30-P-4670GW | |
| 11 | Install drive flange (10) onto drive pinion (4) | AR35.30-P-0472GW | |
| 12 | Check friction torque of drive pinion (4) | AR33.30-P-0458-02GW | |
| 13 | Check concentricity of drive flange (10) and adjust if necessary | AR35.30-P-4671GW | |
| 14 | Install differential assembly (1) | AR35.30-P-0432GW | |
| 15 | Check contact pattern of ring gear and drive pinion (4), adjust if necessary | AR35.30-P-0475-02GW | |
| Fig 3 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1051-04A | Cold degreasing agent/cold cleaning solvent HAKU 1025-920 | Chemische Werke Kluthe GmbH Gottlieb-Daimler-Str. 12 69115 Heidelberg Germany |
