Remove/Install Radial Seal At Drive Pinion Gear - AR35.30-P-4670GW

MODEL 463 as of model year 2013/facelift 2012

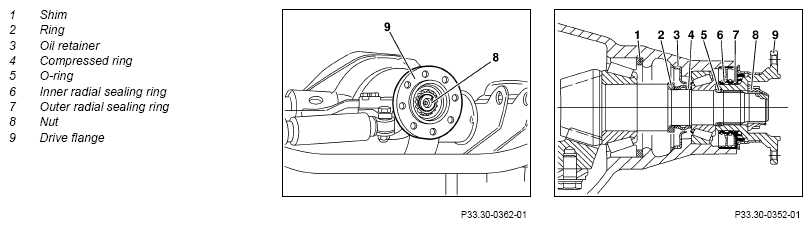

Fig 1: Rear Axle Radial Seal At Drive Pinion Gear Components Location - Model 463 As Of Model Year 2013

Courtesy of MERCEDES-BENZ USA

	Removing
1	Remove drive flange (9) from drive pinion.		AR35.30-P-0472GW
2	Remove inner radial sealing ring (6) and outer radial sealing ring (7)
3	Remove O-ring (5)
	Install
4	Install O-ring (5)	Replace O-ring (5).
5	Install inner radial sealing ring (6) and outer radial sealing ring (7)	Knock in inner radial sealing ring (6) with washer of drift inserted. Knock in outer radial sealing ring (7) without washer of drift inserted.
		Coat outer edge of radial sealing rings without outer rubber coating with sealant. Install radial sealing rings with outer rubber coating without sealant.	*BR00.45-Z-1012-01A
		Pack the space between the dust lip and lip with grease, lubricate lip and garter spring lightly	*BR00.45-Z-1017-06A
		Drift	Fig 2
6	Install drive flange (9) on drive pinion		AR35.30-P-0472GW

Fig 2: Identifying Drift (460 589 15 15 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1012-01A	Sealant, Omnifit FD 3041	A 002 989 47 20 10
BR00.45-Z-1017-06A	MB multipurpose grease	A 001 989 34 51 11
