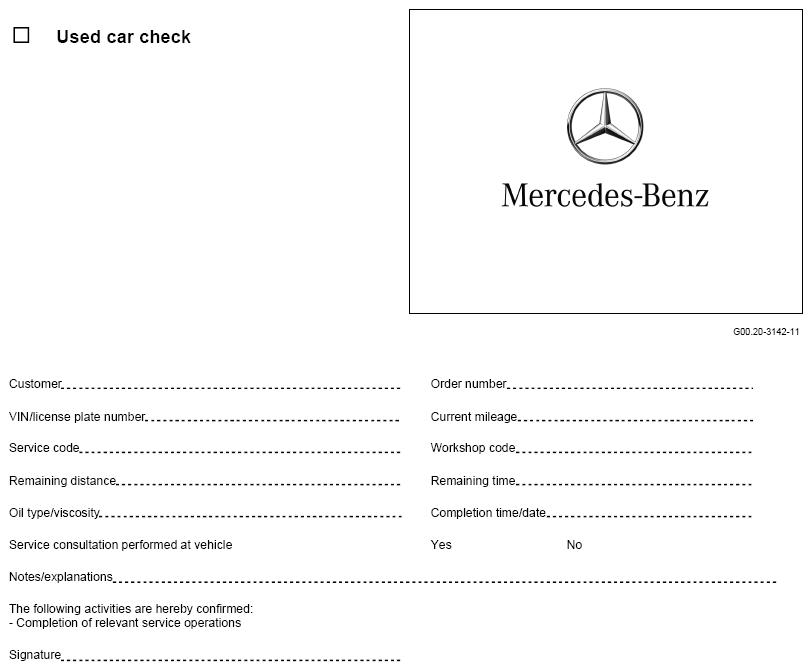

Used Car Check (Young Stars) - AP00.20-P-0085A

Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461, 463

Courtesy of MERCEDES-BENZ USA

U		Input condition not OK:	ⓧ
Completed
√
↓			↓
□	General  Check vehicle for any unresolved service measures.	To be performed by the service advisor.  If problems are determined, ↓ conduct unresolved service measures. After obtaining special order.	◦
□	If the vehicle needs to be moved, pay attention to engine and transmission operation.	If problems are determined, ↓ Perform fault detection and extended diagnosis. After obtaining special order.	◦
□	Vehicle exterior  Check condition of vehicle exterior.		◦	AP60.00-P-6048U
□	Check condition of windshield.		◦	AP67.10-P-6750A
□	Check exterior lighting for proper operation.	Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461, Model 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461 Model 463	◦	AP82.10-P-8252EW
		Model 223		AP82.10-P-8252A
□	Check windows for cracks, stone chipping, opacity and any other damage, and enter into table.	LLI Vehicle glazing, Outside mirrors, Headlamp and rear lamp covers.	◦
□	Check condition of wiper blades.	Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461, Model 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461 Model 463	◦	AP82.30-P-8253G
		Model 223		AP82.30-P-8253A
□	Check and correct headlamp adjustment.		◦	AP82.10-P-8249U
□	Check due date for main inspection.	Enter due date for main inspection here: If due date of main inspection is ≤ 21 months, ↓ Perform main inspection.	◦
□	Vehicle interior  Check warning and function indicator lamps in instrument cluster.		◦
□	Check interior lighting for proper operation.		◦	AP54.30-P-5449U
□	Check horn for proper operation.		◦
□	Check windshield wipers, windshield washer system and, if necessary, headlamp cleaning system for proper operation.		◦	AP82.30-P-8249U
□	Read out fault memory and then delete.		◦
		Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461 Model 463 up to Model year 2019		AD00.00-P-2000-04A
		Model 463 as of Model year 2019		AD00.00-P-2000-04B
		Model 167 Model 190, 205, 213, 217, 222, 253		AD00.00-P-2000-06ME
		Model 118, 177, 247		AD00.00-P-2000-06MFA
		Model 223, 257, 290, 293		AD00.00-P-2000-06FR
		Model 238		AD00.00-P-2000-06LWO
□	Check kilometer reading for plausibility. Maintenance history/service booklet plausible, Vehicle degree of wear relative to kilometer reading plausible, Readout of fault memory plausible.		◦
□	Check operating instructions and service booklet for completeness and condition.		◦
□	Check date when next service is due.	Enter due date for service here: If the time remaining until the next service is ≤ 7500 km (4500 mi) or 6 months, ↓ bring service forward.	◦
□	Check function of all electrical and mechanical components and special equipment.	Equipment-dependent. Locks, Central locking, Power windows, Soft top or Vario roof operation, Seat adjustment and heating, Mirrors, Seat belts, Steering wheel locking, Heater and A/C system, Radio and communication systems, Caps and flaps on stowage boxes/trays, Cupholders.	◦
□	Check vehicle's interior equipment for condition, soiling and any bad odors.	Equipment-dependent. Seats, Trim, Floor covering, Roof paneling.	◦
□	Trunk  Check luggage compartment or cargo area for damage, wear and soiling.	Equipment-dependent. Trim, Flaps.	◦
□	Check content of trunk or load compartment for condition and completeness.	Equipment-dependent. Hazard warning triangle, Vehicle tool kit, Trailer hitch, EASY-PACK load-securing kit.	◦
□	Check TIREFIT tire sealant.	Vehicle with TIREFIT.	◦
		Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 Model 463 with code LQ0 (G650 Landaulet) Model 463 with code MUK2 (USA or Canada vehicle Model designation)		AP40.10-P-4054R
		Model 223 Model 463 with code ZQ0 (G 500 4x42 ) Enter expiration date here: Replace TIREFIT, invoice as additional operation.		AP40.10-P-4054A
□	Check/correct spare wheel tire pressure and enter set tire pressure in table.	Vehicle with spare wheel. Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461 Model 463 as of Model year 2019	◦	AP40.15-P-4061A
		Model 171, 203, 209, 211, 219		AP40.15-P-4061B
		Model 223		AP40.15-P-4061D
		Model 461 Model 463 up to Model year 2019		AP40.15-P-4060G
□	Check expiration date of first-aid kit (soft sided).	Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461 Model 463	◦	AP68.00-P-6850EW
		Model 223 Enter expiration date here: Replace first aid bag, invoice as an additional operation.		AP68.00-P-6850A
□	Check that included charging cables are in good condition and are not damaged.	Model 118.386/686, 166.063, 167.117/154/317/354, 169.090, 177.086/186, 205.013/047/053/054/147/213/247/2 53, 213.011/016/050/053/054/153/155/2 11/216/253, 222.163/173, 242.890, 243, 247.086/786, 253.311/353/354/911/953/954/99, 293	◦
		Model 118.386/686, 177.086/186, 247.086/786		AP54.10-P-5458E
		Model 166.063, 167.117/317, 205.013/047/053/054/147/213/247/2 53, 213.011/016/050/053/054/153/155/2 11/216/253, 222.163/173, 242.890, 253.311/353/354/911/953/954 Model 167.154/354 except code 830 (China version)		AP54.10-P-5458B
		Model 167.154/354 with code 830 (China version)		AP54.10-P-5458H
		Model 169.090		AP54.10-P-5458EZ
		Model 253.99
		Model 293		AP54.10-P-5458D
□	Engine compartment  Check all visible parts in engine compartment for damage and fluid loss.	Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461, Model 463 Model 117, 156, 169, 176, 242, 245, 246	◦	AP00.20-P-0055AK
		Model 118, 177, 247		AP00.20-P-0055I
		Model 164, 171, 172, 197.3/4, 203, 204, 207, 209, 211, 212, 216, 218, 219, 221, 230, 231, 251		AP00.20-P-0055EW
		Model 166, 292		AP00.20-P-0055D
		Model 167		AP00.20-P-0055H
		Model 190		AP00.20-P-0055B
		Model 205		AP00.20-P-0055C
		Model 213, 238, 253 (except 253.99), 257, 290		AP00.20-P-0055E
		Model 217, 222		AP00.20-P-0055A
		Model 223		AP00.20-P-0055K
		Model 253.99		AP00.20-P-0055G
		Model 293		AP00.20-P-0055J
		Model 461 Model 463 up to Model year 2019		AP00.20-P-0053AB
		Model 463 up to Model year 2019		AP00.20-P-0055F
		Model 463 as of Model year 2019		AP00.20-P-0055GA
□	Check engine oil level.	Engine 111, 112, 113, 133, 139, 152, 156, 157, 159, 176, 177, 178, 256, 260, 264, 266, 270, 271, 272, 273, 274, 275, 276, 277, 278, 279, 282, 607, 608, 611, 612, 626, 628, 629, 640, 642, 646, 647, 648, 651, 654, 656	◦	AP18.00-P-1848U
□	Check main circuit coolant level in expansion reservoir.		◦	AP20.30-P-2049U
□	Windshield washer system: Check/correct fluid level.	When using cleaning compounds for summer/winter, and depending on the ambient temperature, observe the mixing ratio.		AP82.35-P-8249U
□	Underside of vehicle  Check all major assemblies, systems and component parts for visible damage, wear and fluid loss.		◦	AP60.00-P-6049U
□	Tires, wheels  Check tires, disk wheels and spare wheel for condition, wear and damage, as well as ease of movement.		◦
		Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461 Model 463		AP40.10-P-4048U
□	Correct tire pressure and enter set tire pressure in table.	Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461 Model 463 as of Model year 2019	◦	AP40.15-P-4061A
		Model 171, 203, 209, 211, 219		AP40.15-P-4061B
		Model 223		AP40.15-P-4061D
		Model 461 Model 463 up to Model year 2019		AP40.15-P-4060G
□	Brake system  Perform brake test and enter result in table	Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461, Model 463	◦
		Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245 (except 245.286), 246, 247, 251, 253, 257, 290, 292, 293 Model 463 as of Model year 2019		AP42.00-P-4290BA
		Model 223		AP42.00-P-4290BS
		Model 461 Model 463 up to Model year 2019		AP42.00-P-4290G
□	Concluding work  Conduct a road test.
□	Miscellaneous  Enter any other faults into table.		◦

Miscellaneous
