Check All Visible Parts In Engine Compartment For Damage And Fluid Loss - AP00.20-P-0055F
Model 463
up to Model year 2019
Shown in Model 463.348
| Notes on evaluating leakages | AH00.00-N-0011-01A | ||
| Remove | |||

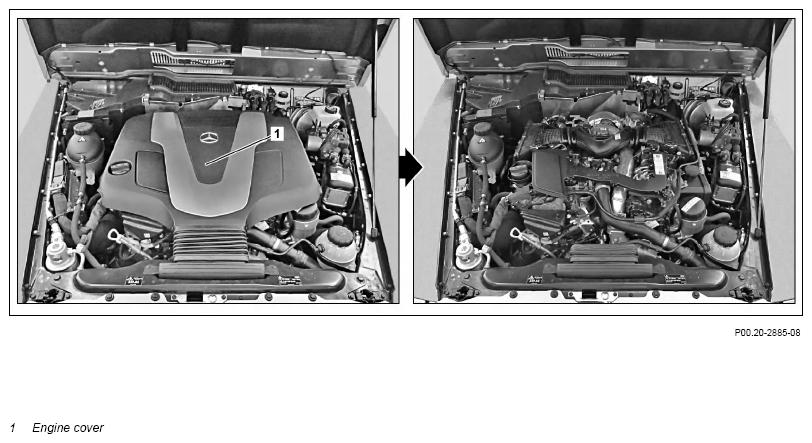

| 1 | Remove engine cover (1) | Vehicle with engine cover (1). | |
| Check | |||
| 2 | Check that visible systems and components in engine compartment are in good condition, are not leaking and are attached securely | Exhaust system, Cooling system, Heater and A/C system, Fuel system, Steering, Brake system, Operation of differential locks, Major assembly vent lines, Electrical components. If there is a problem ↓ Rectify problem subject to separate repair order. |
|
| 3 | Check that visible systems and components in engine compartment are in good condition, are not leaking and are attached securely | Equipment-dependent. Stationary heater. If there is a problem ↓ Rectify problem subject to separate repair order. |
|
| 4 | Check that visible lines and hoses in engine compartment are in good condition, are not leaking, are routed correctly and are attached securely | Exhaust system, Cooling system, Heater and A/C system, Fuel system, Steering, Brake system, Operation of differential locks, Major assembly vent lines, Electrical components. If there is a problem ↓ Rectify problem subject to separate repair order. |
|
| 5 | Check that visible lines and hoses in engine compartment are in good condition, are not leaking, are routed correctly and are attached securely | Equipment-dependent. Stationary heater. If there is a problem ↓ Rectify problem subject to separate repair order. |
|
| 6 | Check visible systems, components and body panels, lines and hoses in engine compartment on vehicle for damage, routing, leaks, mounting and corrosion | Conduct in Service B only. | AP00.20-P-0054H |
| Install | |||
| 7 | Install engine cover (1) | Vehicle with engine cover (1). |
