Check Tirefit Tire Sealant - AP40.10-P-4054R

Model 117, 118, 156, 163, 164, 166, 167, 168, 169, 170, 171, 172, 176, 177, 190, 197, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 240, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 414

Model 463

with code LQ0 (G650 Landaulet)

Model 463

with code MUK2 (USA or Canada vehicle model designation)

Model 463

with code ZQ0 (G 500 4x4 ² )

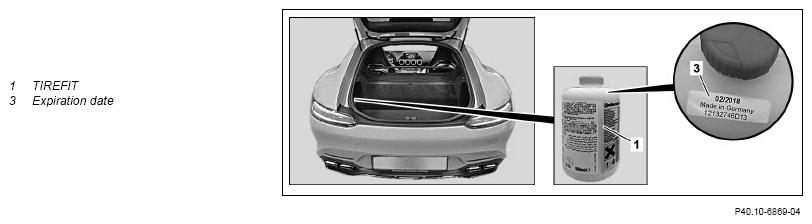

TIREFIT (1) in trunk recess, shown on model 211.2, valid for model 117, 118, 156, 164, 166, 167, 168, 170, 171, 172, 176, 177, 203.0/7, 204.0/2/3, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 240, 242, 243, 246, 247, 251, 257, 290, 292, 293

Courtesy of MERCEDES-BENZ USA

TIREFIT (1) behind side trim shown on left in model 169, valid for model 163, 169, 197, 204.9, 245, 253, 414

Courtesy of MERCEDES-BENZ USA

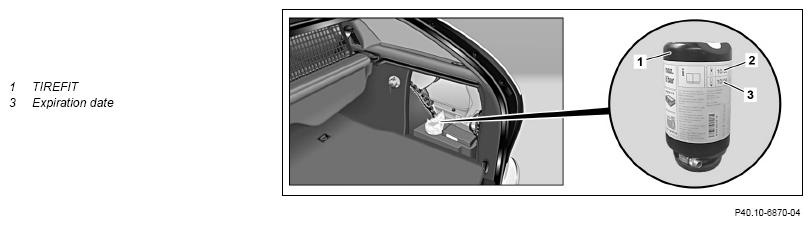

TIREFIT (1) behind side trim shown on left in model 190

Courtesy of MERCEDES-BENZ USA

TIREFIT (1) behind side trim shown on right in model 203.2

Courtesy of MERCEDES-BENZ USA

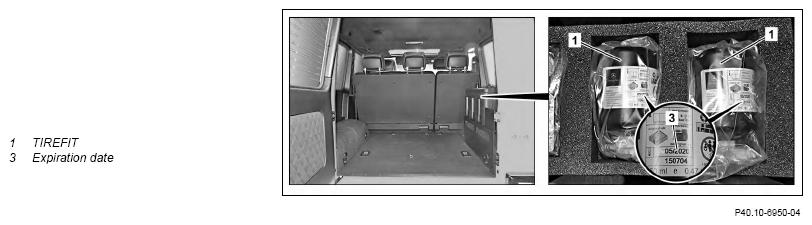

TIREFIT (1) in side box shown on right in model 463 with code ZQ0 (G500 4x4 ² ), valid for model 463 with code LQ0 (G650 Landaulet), 463 with code MUK2 (Vehicle model designation U.S.A. or Canada), 463 with code ZQ0 (G500 4x4 ² )

Fig 1: Tirefit Tire Sealant Components Location - (Shown On Right In Model 463 With Code Zq0)

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning caused by swallowing the TIREFIT emulsion. Risk of injury caused by skin contact and eye contact with the TIREFIT emulsion. Risk of fire caused by ignition of the TIREFIT emulsion	Do not swallow or come into contact with the TIREFIT tire sealant, which is an emulsion of rubber and terpene phenolic resin. No open flames or open light sources.	AS40.10-Z-0001-01A
	TIREFIT tire sealant		AH40.10-P-0001-01A
	Remove
1	Remove TIREFIT (1).
	Check
2	Check whether TIREFIT (1) was used.	If TIREFIT (1) was used, ↓ replace TIREFIT (1) and dispose of used TIREFIT (1) properly. After obtaining special order.
3	Check expiration date (3).	If the expiration date (3) has been reached, exceeded or will be reached or exceeded within the next service interval, ↓ replace TIREFIT (1) and dispose of used TIREFIT (1) properly. After obtaining special order.
	Install
4	Insert TIREFIT (1).
