Location and assignment of Z connector sleeves (wiring and plug connectors in wiring harness) - GF00.19-P-3000EAA

MODEL 207

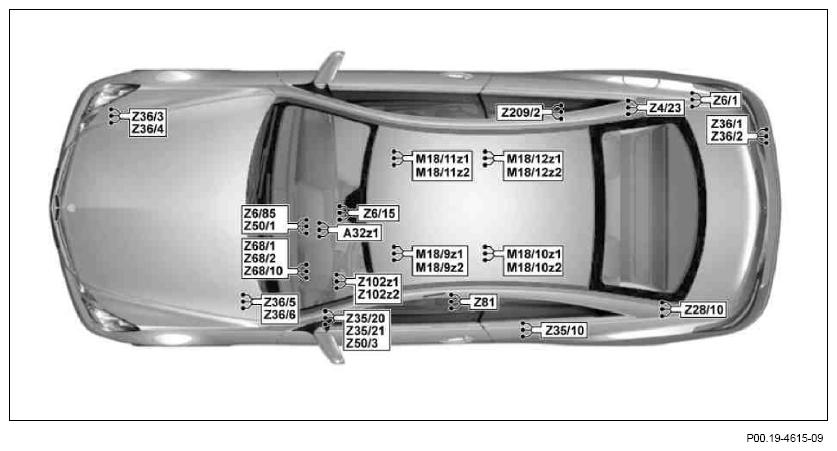

Fig 1: Z Connector Sleeves Location (1 Of 8)
G10081555Courtesy of MERCEDES-BENZ USA

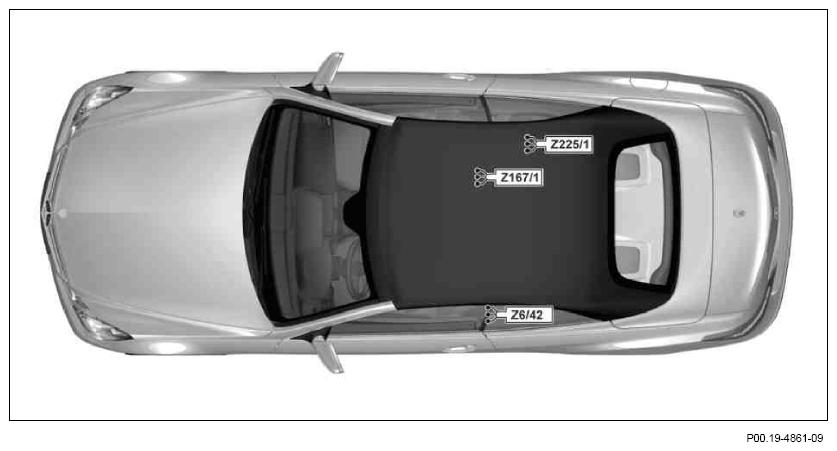

Fig 2: Z Connector Sleeves Location (2 Of 8)
G10081556Courtesy of MERCEDES-BENZ USA

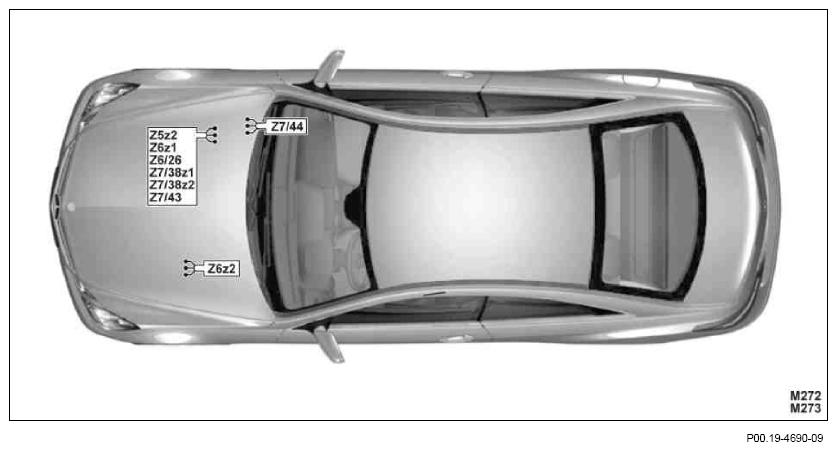

Fig 3: Z Connector Sleeves Location (3 Of 8)
G10081557Courtesy of MERCEDES-BENZ USA

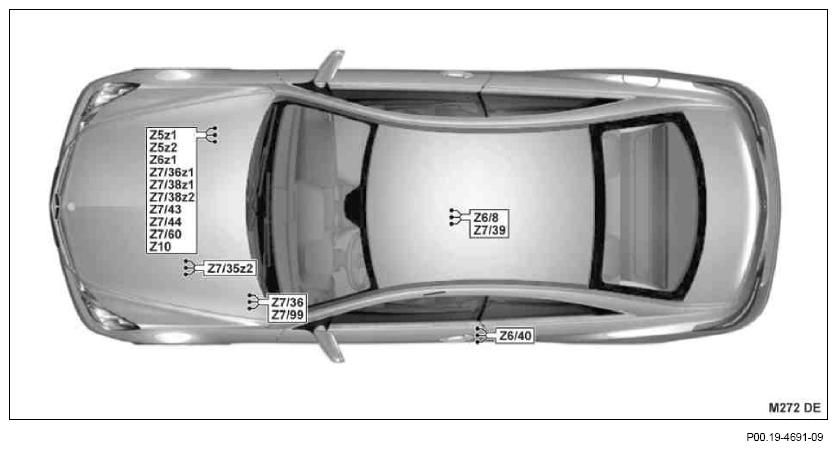

Fig 4: Z Connector Sleeves Location (4 Of 8)
G10081558Courtesy of MERCEDES-BENZ USA

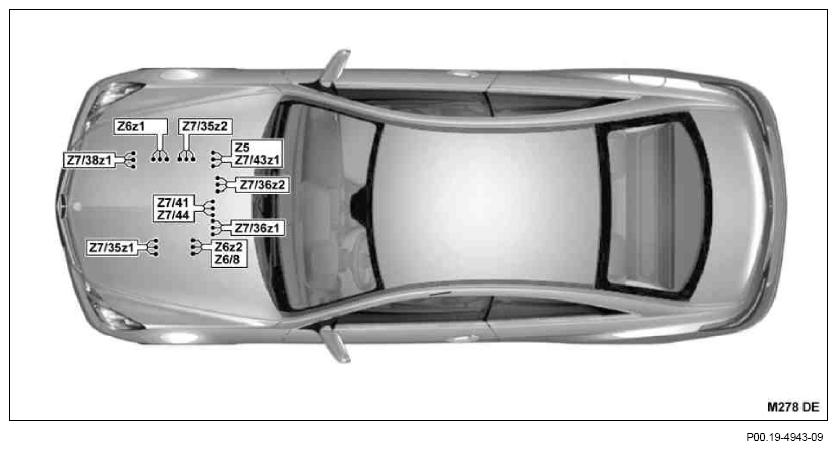

Fig 5: Z Connector Sleeves Location (5 Of 8)
G10081559Courtesy of MERCEDES-BENZ USA

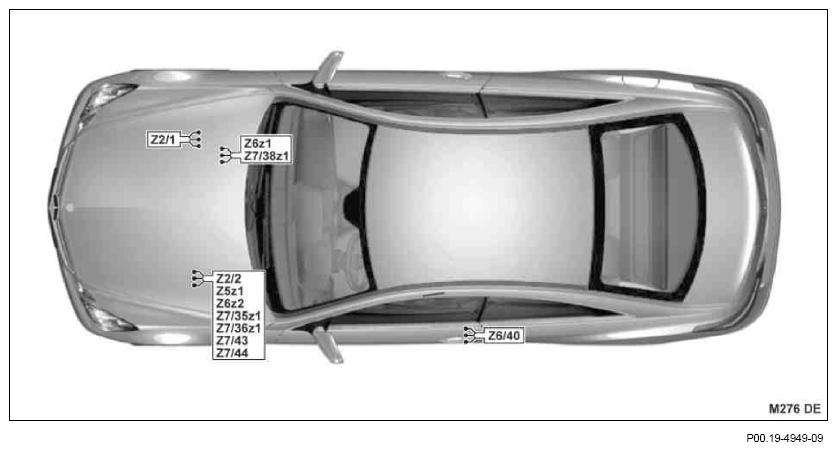

Fig 6: Z Connector Sleeves Location (6 Of 8)
G10081560Courtesy of MERCEDES-BENZ USA

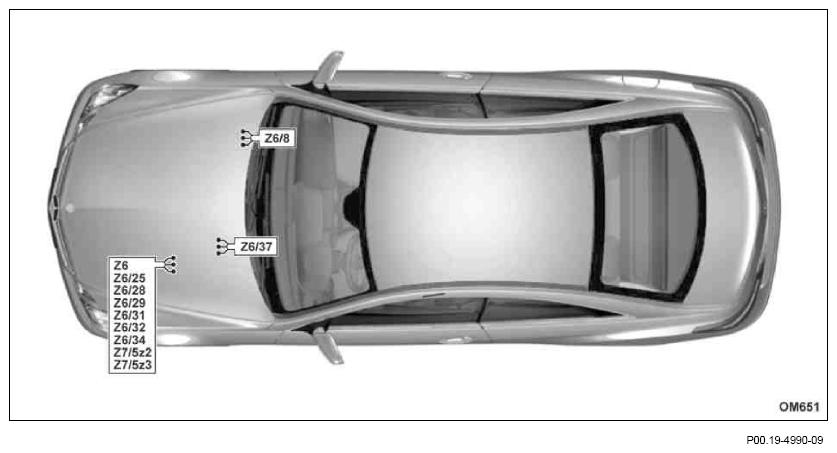

Fig 7: Z Connector Sleeves Location (7 Of 8)
G10081561Courtesy of MERCEDES-BENZ USA

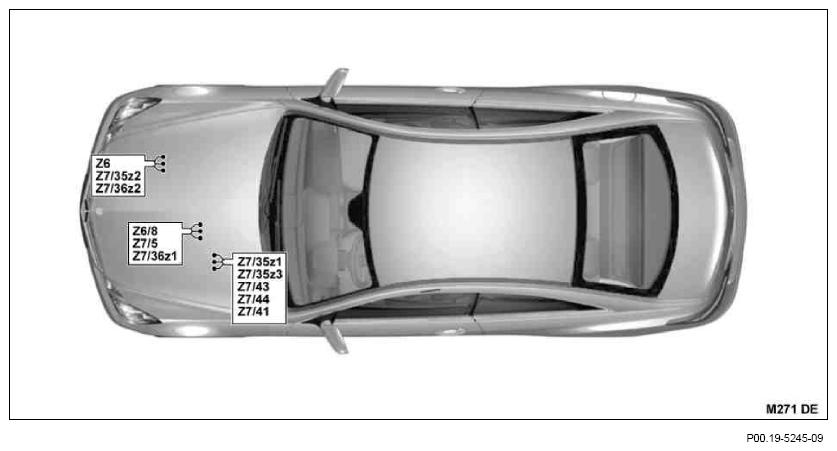

Fig 8: Z Connector Sleeves Location (8 Of 8)
G10081562Courtesy of MERCEDES-BENZ USA
A32z1 Air conditioner housing connector sleeve Location GF00.19-P-3000-03EAA
    Assignment PE83.40-P-2101EAA
A32z1 Air conditioner housing connector sleeve Location GF00.19-P-3000-03EAA
    Assignment PE83.40-P-2101EAB
M18/9z1 Left front seat cushion seat ventilation motor power supply connector sleeve Location GF00.19-P-3000-04EAA
    Assignment PE91.30-P-2102EAA
M18/9z2 Left front seat cushion seat ventilation motor ground connector sleeve Location GF00.19-P-3000-04EAA
    Assignment PE91.30-P-2102EAA
M18/10z1 Left front backrest seat ventilation motor power supply connector sleeve Location GF00.19-P-3000-04EAA
    Assignment PE91.30-P-2102EAA
M18/10z2 Left front backrest seat ventilation motor ground connector sleeve Location GF00.19-P-3000-04EAA
    Assignment PE91.30-P-2102EAA
M18/11z1 Right front seat cushion seat ventilation motor power supply connector sleeve Location GF00.19-P-3000-05EAA
    Assignment PE91.30-P-2102EAA
M18/11z2 Right front seat cushion seat ventilation motor ground connector sleeve Location GF00.19-P-3000-05EAA
    Assignment PE91.30-P-2102EAA
M18/12z1 Right front backrest seat ventilation motor power supply connector sleeve Location GF00.19-P-3000-05EAA
    Assignment PE91.30-P-2102EAA
M18/12z2 Right front backrest seat ventilation motor ground connector sleeve Location GF00.19-P-3000-05EAA
    Assignment PE91.30-P-2102EAA
Z4/23 Antenna circuit 30 connector sleeve Location GF00.19-P-3000-05EAA
    Assignment PE54.21-P-2108EAC
Z2/1 Right engine ground connector sleeve Location for M276 GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAE
Z2/2 Left engine ground connector sleeve Location for M276 GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAE
Z5 Connector sleeve in wiring harness Location for M278 GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAG
Z5z1 Cross section reduction connector sleeve Location for M276 GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAE
Z5z1 Cross section reduction connector sleeve Location for M272 DE GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAC
Z5z2 Connector sleeve in wiring harness Location for M272 DE GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAC
Z5z2 Connector sleeve in wiring harness Location for M272 GF00.19-P-3000-02EAA
    Assignment PE07.61-P-2101EAC
Z5z2 Connector sleeve in wiring harness Location for M273 GF00.19-P-3000-02EAA
    Assignment PE07.61-P-2101EAG
Z6 Circuit 31 connector sleeve Location for M271 DE GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAA
Z6 Circuit 31 connector sleeve Location for OM651 as of 06/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAF
Z6z1 Circuit 31 connector sleeve Location for M272, M273, M272 DE GF00.19-P-3000-02EAA
    Assignment PE00.19-P-2800EAE
Z6z2 Circuit 31 connector sleeve Location for M272, M273 GF00.19-P-3000-01EAA
    Assignment PE00.19-P-2800EAE
Z6z1 Circuit 31 connector sleeve Location for M276 GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAE
Z6z2 Circuit 31 connector sleeve Location for M276 GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAE
Z6z1 Circuit 31 connector sleeve Location for M278 GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAG
Z6z2 Circuit 31 connector sleeve Location for M278 GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAG
Z6/1 Circuit 31 connector sleeve Location GF00.19-P-3000-07EAA
    Assignment PE00.19-P-2800EAA
Z6/8 Sensor ground connector sleeve Location for M271 DE GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAA
Z6/8 Sensor ground connector sleeve Location for M272 DE GF00.19-P-3000-04EAA
    Assignment PE07.08-P-2101EAD
Z6/8 Sensor ground connector sleeve Location for M278 GF00.19-P-3000-04EAA
    Assignment PE07.08-P-2101EAG
Z6/8 Sensor ground connector sleeve Location for OM651 up to 05/11 GF00.19-P-3000-02EAA
    Assignment PE07.16-P-2101EAC
Z6/8 Sensor ground connector sleeve Location for OM651 as of 06/11 GF00.19-P-3000-02EAA
    Assignment PE07.16-P-2101EAE
Z6/15 Right seat belt buckle circuit 31 connector sleeve Location GF00.19-P-3000-04EAA
    Assignment PE91.60-P-2105EAA
Z6/25 Sensor voltage supply connector sleeve Location for OM651 up to 05/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAD
Z6/25 Sensor voltage supply connector sleeve Location for OM651 as of 06/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAF
Z6/26 Sensor voltage supply connector sleeve Location for M272 GF00.19-P-3000-02EAA
    Assignment PE07.61-P-2101EAC
Z6/26 Sensor voltage supply connector sleeve Location for M273 GF00.19-P-3000-02EAA
    Assignment PE07.61-P-2101EAG
Z6/28 Sensor ground connector sleeve Location for OM651 up to 05/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAD
Z6/28 Sensor ground connector sleeve Location for OM651 as of 06/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAF
Z6/29 Sensor ground connector sleeve Location for OM651 up to 05/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAD
Z6/29 Sensor ground connector sleeve Location for OM651 as of 06/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAF
Z6/31 Sensor voltage supply connector sleeve Location for OM651 up to 05/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAD
Z6/31 Sensor voltage supply connector sleeve Location for OM651 as of 06/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAF
Z6/32 Sensor ground connector sleeve Location for OM651 up to 05/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAD
Z6/32 Sensor ground connector sleeve Location for OM651 as of 06/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAF
Z6/34 Sensor ground connector sleeve Location for OM651 up to 05/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAD
Z6/34 Sensor ground connector sleeve Location for OM651 as of 06/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAF
Z6/37 Sensor voltage supply connector sleeve Location for OM651 up to 05/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAD
Z6/37 Sensor voltage supply connector sleeve Location for OM651 as of 06/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAF
Z6/40 NOx sensor connector sleeve Location for M272 DE GF00.19-P-3000-04EAA
    Assignment PE07.08-P-2101EAD
Z6/40 NOx sensor connector sleeve Location for M276 GF00.19-P-3000-04EAA
    Assignment PE07.08-P-2101EAF
Z6/42 Ground point W18/3 connector sleeve Location GF00.19-P-3000-04EAA
    Assignment PE54.21-P-2110EAA
Z6/85 Sensor ground connector sleeve Location GF00.19-P-3000-03EAA
    Assignment PE83.40-P-2101EAB
Z6/85 Sensor ground connector sleeve Location GF00.19-P-3000-03EAA
    Assignment PE83.40-P-2101EAB
Z7/5z2 Circuit 87 connector sleeve Location for M271 DE GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAA
Z7/5z2 Circuit 87 connector sleeve Location for OM651 up to 05/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAD
Z7/5z2 Circuit 87 connector sleeve Location for OM651 as of 06/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAF
Z7/5z3 Circuit 87 connector sleeve Location for OM651 up to 05/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAD
Z7/5z3 Circuit 87 connector sleeve Location for OM651 as of 06/11 GF00.19-P-3000-01EAA
    Assignment PE07.16-P-2101EAF
Z7/35z1 Circuit 87 M1e connector sleeve Location for M271 DE GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAA
Z7/35z1 Circuit 87 M1e connector sleeve Location for M276 GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAE
Z7/35z1 Circuit 87 M1e connector sleeve Location for M278 GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAG
Z7/35z2 Circuit 87 M1e connector sleeve Location for M271 DE GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAA
Z7/35z2 Circuit 87 M1e connector sleeve Location for M278 GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAG
Z7/35z2 Circuit 87 M1e connector sleeve Location for M272 DE GF00.19-P-3000-02EAA
    Assignment PE00.19-P-2600EAB
Z7/35z3 Circuit 87 M1e connector sleeve Location for M271 DE GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAA
Z7/36 Circuit 87 M2e connector sleeve Location for M272 DE GF00.19-P-3000-01EAA
    Assignment PE00.19-P-2600EAB
Z7/36z1 Circuit 87 M2e connector sleeve Location for M272 DE GF00.19-P-3000-02EAA
    Assignment PE00.19-P-2600EAB
Z7/36z1 Circuit 87 M2e connector sleeve Location for M271 DE GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAA
Z7/36z1 Circuit 87 M2e connector sleeve Location for M276 GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAE
Z7/36z1 Circuit 87 M2e connector sleeve Location for M278 GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAG
Z7/36z1 Circuit 87 M2e connector sleeve Location for M278 GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAH
Z7/36z2 Circuit 87 M2e connector sleeve Location for M271 DE GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAA
Z7/36z2 Circuit 87 M2e connector sleeve Location for M278 GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAH
Z7/38z1 Circuit 87 M1i connector sleeve Location for M272, M273 GF00.19-P-3000-02EAA
    Assignment PE00.19-P-2600EAA
Z7/38z1 Circuit 87 M1i connector sleeve Location for M272 DE GF00.19-P-3000-02EAA
    Assignment PE00.19-P-2600EAB
Z7/38z1 Circuit 87 M1i connector sleeve Location for M276 GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAE
Z7/38z1   Location for M278 GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAG
Z7/38z1 Circuit 87 M1i connector sleeve Location for M278 GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAH
Z7/38z2 Circuit 87 M1i connector sleeve Location for M272, M273 GF00.19-P-3000-02EAA
    Assignment PE00.19-P-2600EAA
Z7/38z2 Circuit 87 M1i connector sleeve Location for M272 DE GF00.19-P-3000-02EAA
    Assignment PE00.19-P-2600EAB
Z7/39 Circuit 87 M2i connector sleeve Location for M272 DE GF00.19-P-3000-04EAA
    Assignment PE00.19-P-2600EAB
Z7/41 Sensor voltage supply connector sleeve Location for M271 DE GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAA
Z7/41 Sensor voltage supply connector sleeve Location for M278 GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAG
Z7/43 Sensor ground connector sleeve Location for M271 DE GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAA
Z7/43 Sensor ground connector sleeve Location for M272 DE GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAC
Z7/43 Sensor ground connector sleeve Location for M276 GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAE
Z7/43 Sensor ground connector sleeve Location for M272 GF00.19-P-3000-02EAA
    Assignment PE07.61-P-2101EAC
Z7/43 Sensor ground connector sleeve Location for M273 GF00.19-P-3000-02EAA
    Assignment PE07.61-P-2101EAG
Z7/43z1 Sensor ground line connector sleeve Location for M278 GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAG
Z7/43z1 Sensor ground line connector sleeve Location for M278 GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAH
Z7/44 Sensor ground connector sleeve Location for M271 DE GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAA
Z7/44 Sensor ground connector sleeve Location for M272 DE GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAC
Z7/44 Sensor ground connector sleeve Location for M276 GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAE
Z7/44 Sensor ground connector sleeve Location for M278 GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAG
Z7/44 Sensor ground connector sleeve Location for M272 GF00.19-P-3000-02EAA
    Assignment PE07.61-P-2101EAC
Z7/44 Sensor ground connector sleeve Location for M273 GF00.19-P-3000-02EAA
    Assignment PE07.61-P-2101EAG
Z7/60 5V output connector sleeve Location for M272 DE GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAC
Z7/99 Circuit 87 M4e connector sleeve Location for M272 DE GF00.19-P-3000-01EAA
    Assignment PE07.08-P-2101EAD
Z10 Connector sleeve 2 Location for M272 DE GF00.19-P-3000-02EAA
    Assignment PE07.08-P-2101EAC
Z28/10 Receiver shielding connector sleeve Location GF00.19-P-3000-06EAA
    Assignment PE54.65-P-2102EAB
Z35/10 MOST wake-up signal connector sleeve Location GF00.19-P-3000-04EAA
    Assignment up to 01.03.15 PE82.00-P-2710EAA
    Assignment as of 02.03.15 PE82.00-P-2710EAB
Z35/20 Cockpit chassis CAN (high) connector sleeve Location GF00.19-P-3000-03EAA
    Assignment PE00.19-P-2195EAA
Z35/21 Cockpit chassis CAN (low) connector sleeve Location GF00.19-P-3000-03EAA
    Assignment PE00.19-P-2195EAA
Z36/1 Rear PARKTRONIC sensors ground line connector sleeve Location GF00.19-P-3000-07EAA
    Assignment PE30.30-P-2102EAA
Z36/1 Rear PARKTRONIC sensors ground line connector sleeve Location GF00.19-P-3000-07EAA
    Assignment PE54.65-P-2101EAA
Z36/2 Rear PARKTRONIC sensors positive line connector sleeve Location GF00.19-P-3000-07EAA
    Assignment PE30.30-P-2102EAA
Z36/2 Rear PARKTRONIC sensors positive line connector sleeve Location GF00.19-P-3000-07EAA
    Assignment PE54.65-P-2101EAA
Z36/3 Front PARKTRONIC sensors ground line connector sleeve Location GF00.19-P-3000-02EAA
    Assignment PE30.30-P-2102EAA
Z36/3 Front PARKTRONIC sensors ground line connector sleeve Location GF00.19-P-3000-02EAA
    Assignment PE54.65-P-2101EAA
Z36/4 Front PARKTRONIC sensors positive line connector sleeve Location GF00.19-P-3000-02EAA
    Assignment PE30.30-P-2102EAA
Z36/4 Front PARKTRONIC sensors positive line connector sleeve Location GF00.19-P-3000-02EAA
    Assignment PE54.65-P-2101EAA
Z36/5 Headlamp range adjustment sensor ground connector sleeve Location GF00.19-P-3000-01EAA
    Assignment PE82.10-P-2000EAA
Z36/6 Sensor voltage supply connector sleeve Location GF00.19-P-3000-01EAA
    Assignment PE82.10-P-2000EAA
Z50/1 Circuit 58d instrument panel connector sleeve Location GF00.19-P-3000-03EAA
    Assignment PE00.19-P-2600EAC
Z50/3 Circuit 31 instrument panel connector sleeve Location for LHD GF00.19-P-3000-03EAA
    Assignment PE00.19-P-2800EAB
Z50/3 Circuit 31 instrument panel connector sleeve Location for RHD GF00.19-P-3000-03EAA
    Assignment PE00.19-P-2800EAC
Z68/1 Instrument panel circuit 31 climate control LIN connector sleeve Location GF00.19-P-3000-03EAA
    Assignment PE54.21-P-2119EAA
Z68/2 Instrument panel climate control LIN positive line connector sleeve Location GF00.19-P-3000-03EAA
    Assignment PE54.21-P-2119EAA
Z68/10 Instrument panel LIN connector sleeve Location GF00.19-P-3000-03EAA
    Assignment PE54.21-P-2119EAA
Z81 Circuit 58d connector sleeve Location GF00.19-P-3000-04EAA
    Assignment PE00.19-P-2600EAC
Z102z1 Steering column adjustment connector sleeve Location GF00.19-P-3000-04EAA
    Assignment PE54.18-P-2300EAA
Z102z2 Steering column adjustment connector sleeve Location GF00.19-P-3000-04EAA
    Assignment PE54.18-P-2300EAA
Z167/1 AIRSCARF fan connector sleeve Location GF00.19-P-3000-05EAA
    Assignment PE91.30-P-2103EAA
Z209/2 Fuel pump control unit connector sleeve Location GF00.19-P-3000-05EAA
    Assignment PE00.19-P-2800EAA
Z225/1 OPEN soft top connector sleeve Location GF00.19-P-3000-05EAA
    Assignment PE54.21-P-2110EAA
  Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment left   GF00.19-P-3000-01EAA
  Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment, right   GF00.19-P-3000-02EAA
  Location and assignment of Z connector sleeves (cable connections in wiring harness) - cockpit   GF00.19-P-3000-03EAA
  Location and assignment of Z connector sleeves (cable connections in wiring harness) - interior left   GF00.19-P-3000-04EAA
  Location and assignment of Z connector sleeves (cable connections in wiring harness) - interior right   GF00.19-P-3000-05EAA
  Location and assignment of Z connector sleeves (connectors and wiring harness) -trunk left   GF00.19-P-3000-06EAA
  Location and assignment of Z connector sleeves (connectors and wiring harness) -trunk right   GF00.19-P-3000-07EAA
scientia non olet · About LEMON Manuals
