Location and assignment of Z connector sleeves (cable connections in wiring harness) - interior left - GF00.19-P-3000-04EAA

MODEL 207

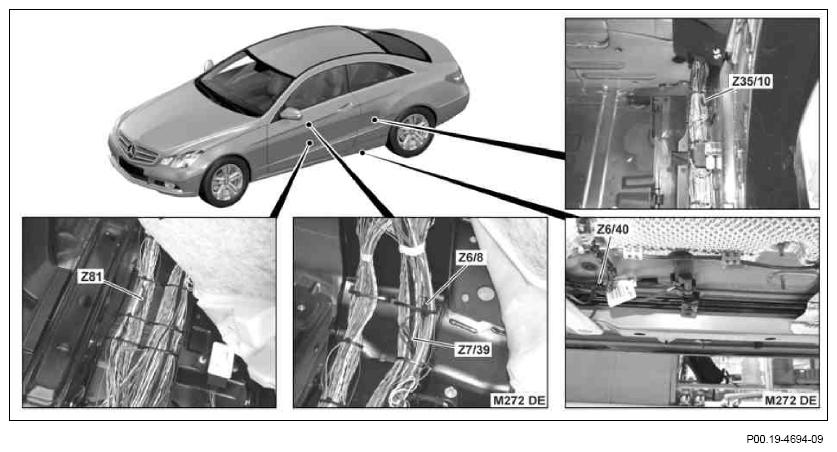

Fig 1: Interior Left Z Connector Sleeves (1 Of 3)
G10081547Courtesy of MERCEDES-BENZ USA

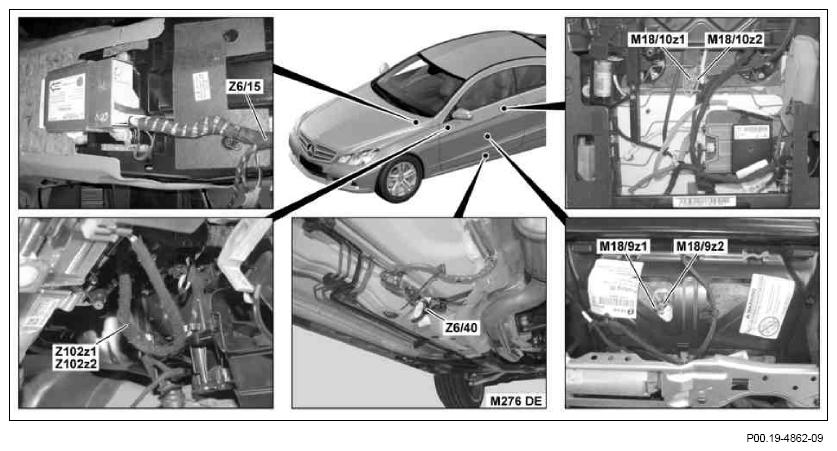

Fig 2: Interior Left Z Connector Sleeves (2 Of 3)
G10081548Courtesy of MERCEDES-BENZ USA

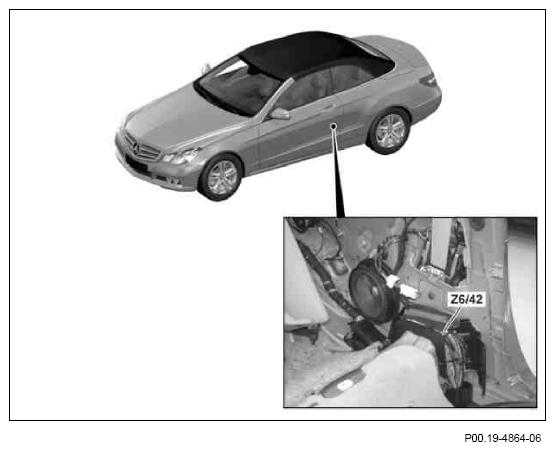

Fig 3: Interior Left Z Connector Sleeves (3 Of 3)
G10081549Courtesy of MERCEDES-BENZ USA
