Location and assignment of Z connector sleeves (cable connections in wiring harness) - interior right - GF00.19-P-3000-05EAA

MODEL 207

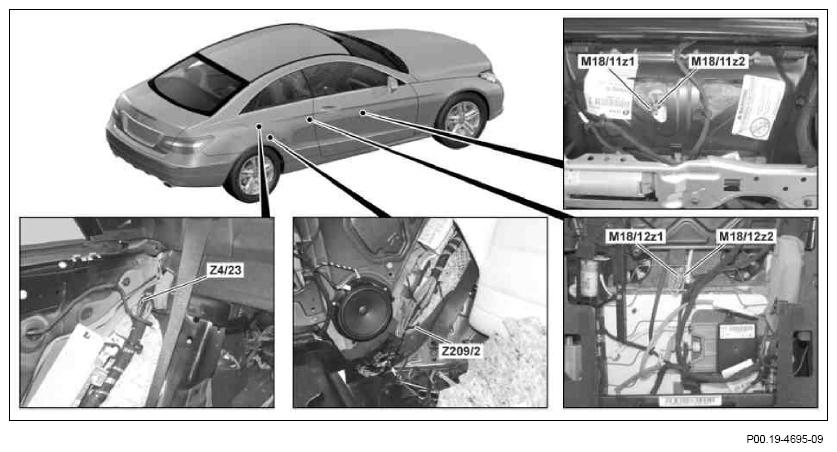

Fig 1: Interior Right Z Connector Sleeves (1 Of 2)
G10081550Courtesy of MERCEDES-BENZ USA

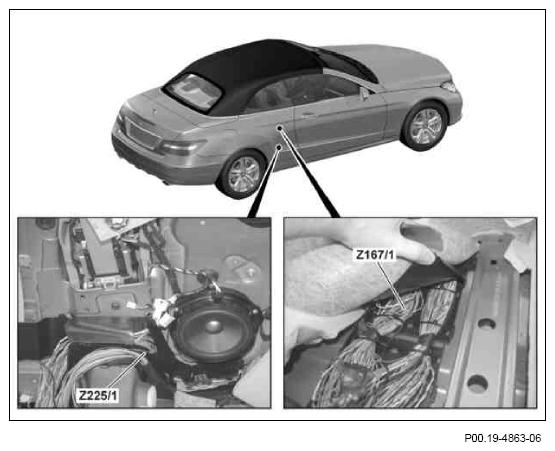

Fig 2: Interior Right Z Connector Sleeves (2 Of 2)
G10081551Courtesy of MERCEDES-BENZ USA
