Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment left - GF00.19-P-3000-01EAA

MODEL 207

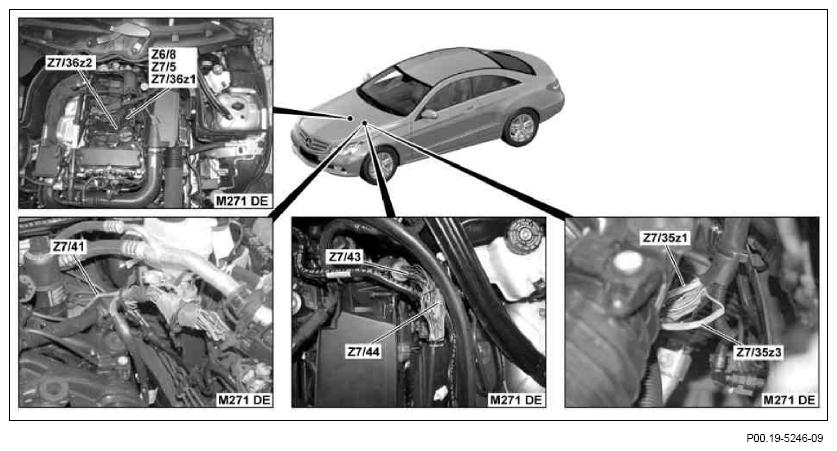

Fig 1: Left Engine Compartment Z Connector Sleeves Location (1 Of 3)

Courtesy of MERCEDES-BENZ USA

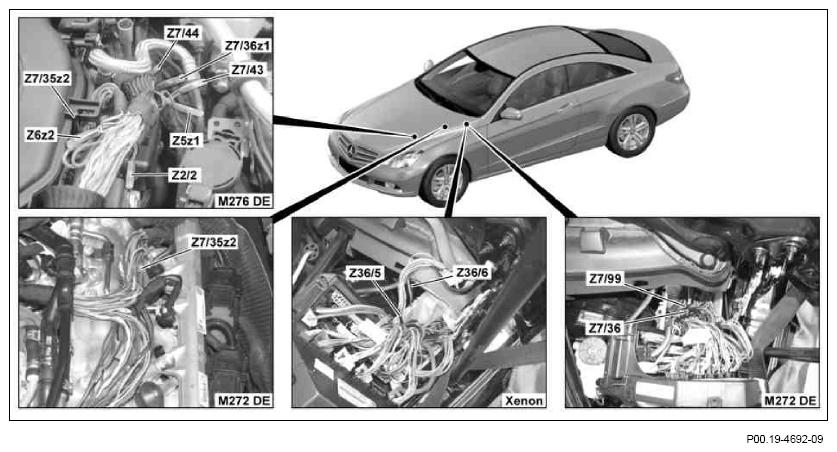

Fig 2: Left Engine Compartment Z Connector Sleeves Location (2 Of 3)

Courtesy of MERCEDES-BENZ USA

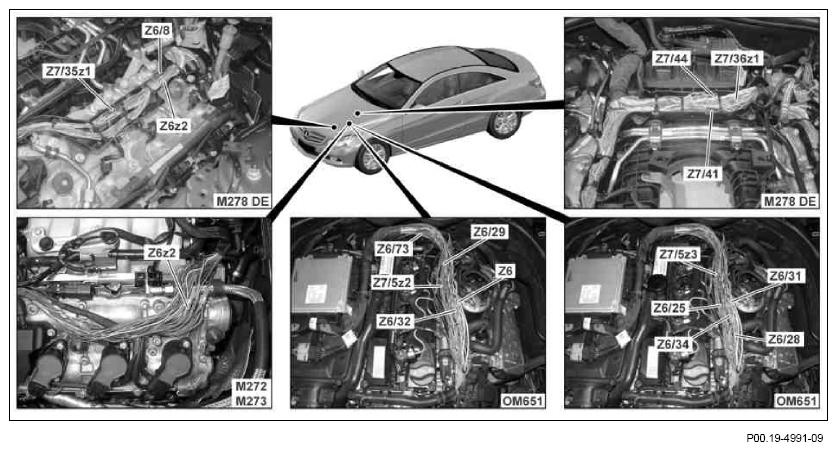

Fig 3: Left Engine Compartment Z Connector Sleeves Location (3 Of 3)

Courtesy of MERCEDES-BENZ USA
