Overall Vehicle - 207 Chassis - 1 Of 3
>>
Basic Knowledge
>>
Location and assignment of Z connector sleeves (cable connections in wiring harness) - cockpit - GF00.19-P-3000-03EAA
Location and assignment of Z connector sleeves (cable connections in wiring harness) - cockpit - GF00.19-P-3000-03EAA
MODEL 207

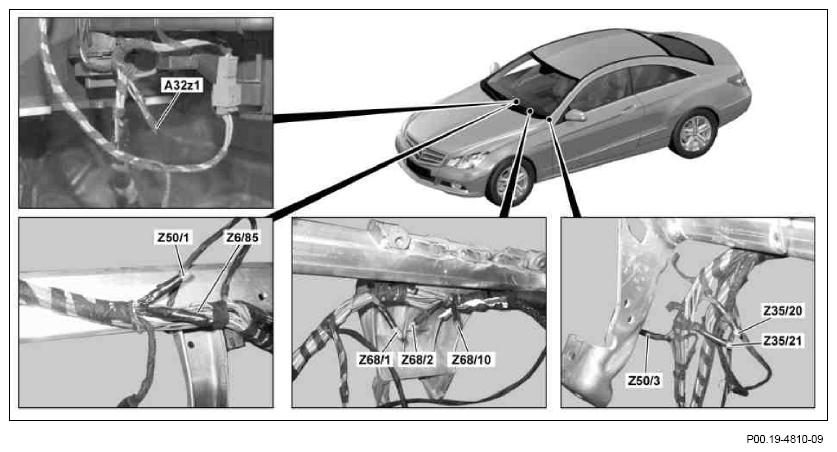

Fig 1: Cockpit Z Connector Sleeves Location
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
