Overview of system components, telematics - GF82.85-P-9999FQA

MODEL 218 as of model year 2013

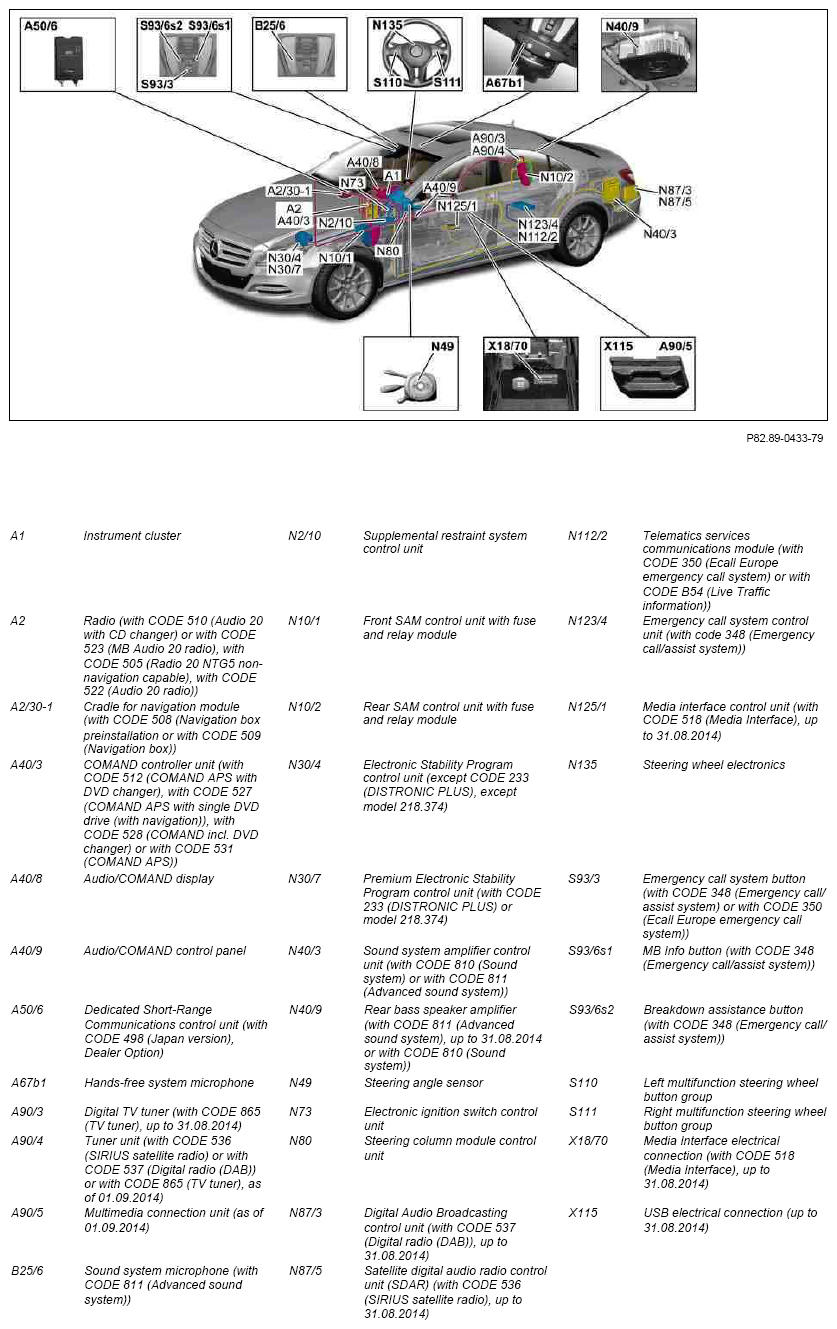

Shown in model 218.3 as of 01.03.2013 (without antenna system and speaker system)

Fig 1: Overview Of Telematics System Components - Shown In Model 218.3
G10004633Courtesy of MERCEDES-BENZ USA

IMPORTANT The sound system amplifier control unit and the rear bass speaker amplifier (up to 31.08.2014) with CODE 811 (Advanced sound system) are installed in a different location, cf. below "Speaker system with CODE 811 (Advanced sound system), shown in model 218.3".

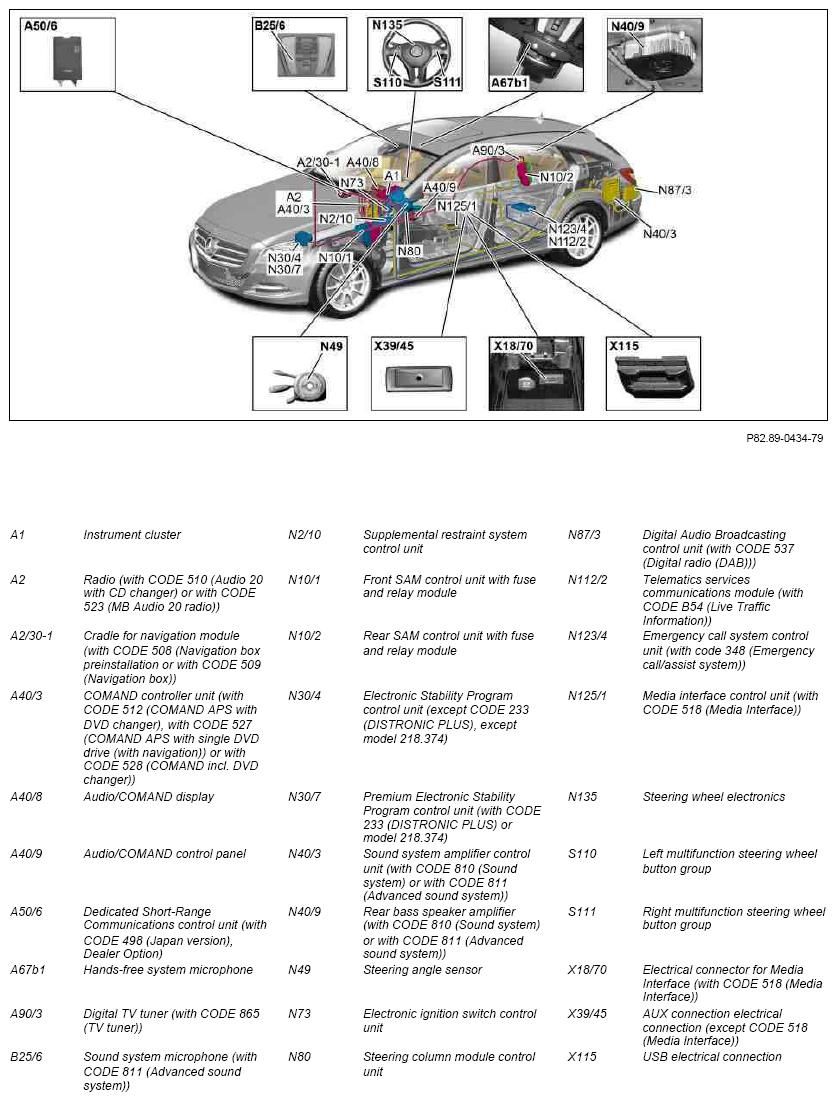

Shown in model 218.9 up to 28.02.2013 (without antenna system and speaker system)

Fig 2: Overview Of Telematics System Components - Shown In Model 218.9
G10004634Courtesy of MERCEDES-BENZ USA

IMPORTANT The sound system amplifier control unit and the rear woofer amplifier are installed in a different location with CODE 811 (Advanced sound system), cf. below "Speaker system with CODE 811 (Advanced sound system), shown in model 218.9".

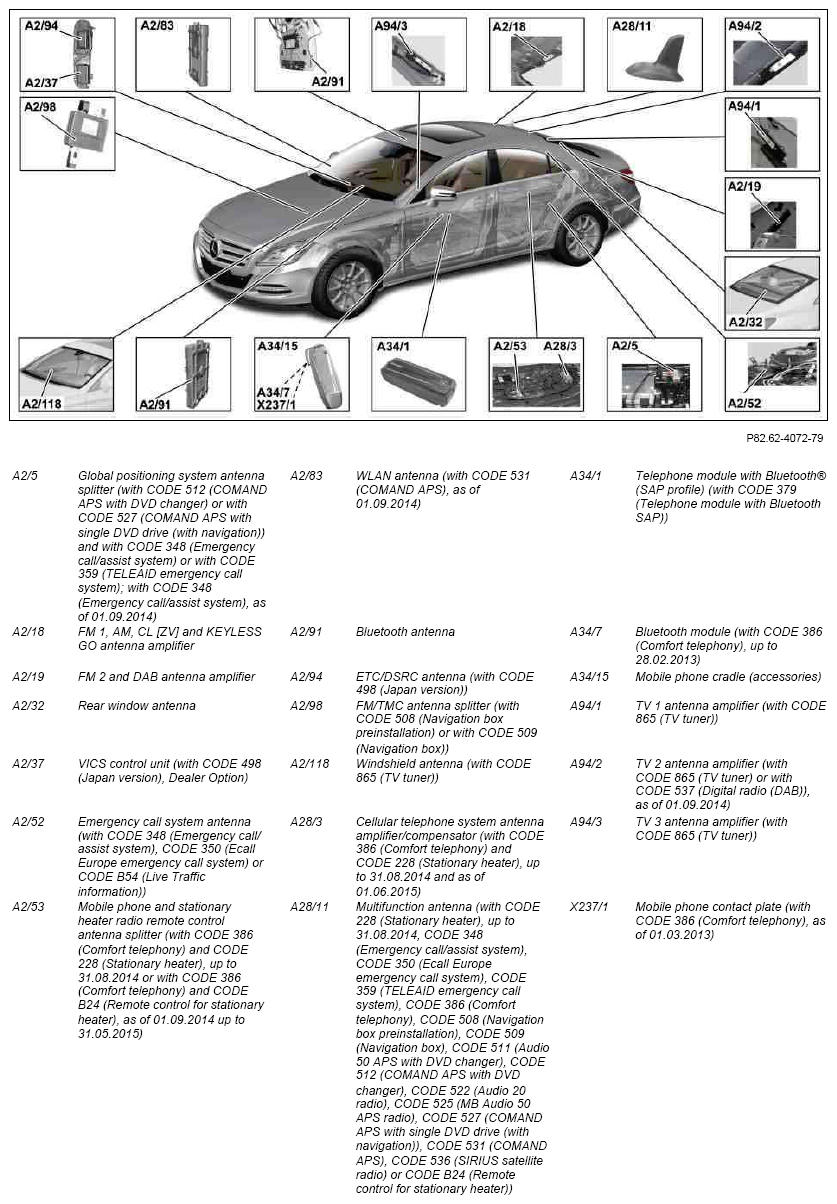

Shown on telematics antenna system in model 218.3

Fig 3: Overview Of Telematics System Components - Shown On Model 218.3
G10004635Courtesy of MERCEDES-BENZ USA

IMPORTANT Up to 31.08.2014: The Bluetooth antenna is fitted to the rear of the overhead control panel control unit.

As of 01.09.2014: In left-hand drive vehicles the Bluetooth antenna is located in the instrument panel on the left, and in right-hand drive vehicles it is located in the instrument panel on the right behind the cover on a bracket at the crossmember.

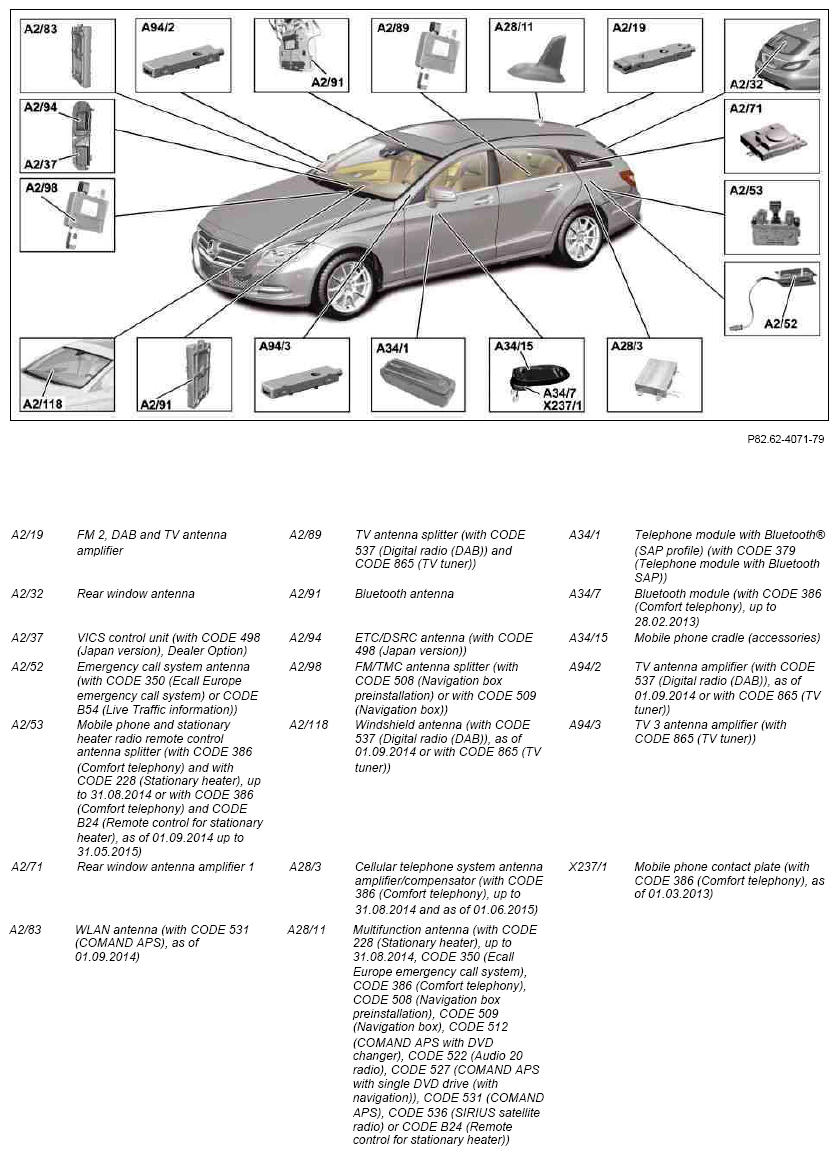

Shown on telematics antenna system on model 218.9

Fig 4: Overview Of Telematics System Components - Shown On Model 218.9
G10004636Courtesy of MERCEDES-BENZ USA

IMPORTANT Up to 31.08.2014: The Bluetooth antenna is fitted to the rear of the overhead control panel control unit.

As of 01.09.2014: In left-hand drive vehicles the Bluetooth antenna is located in the instrument panel on the left, and in right-hand drive vehicles it is located in the instrument panel on the right behind the cover on a bracket at the crossmember.

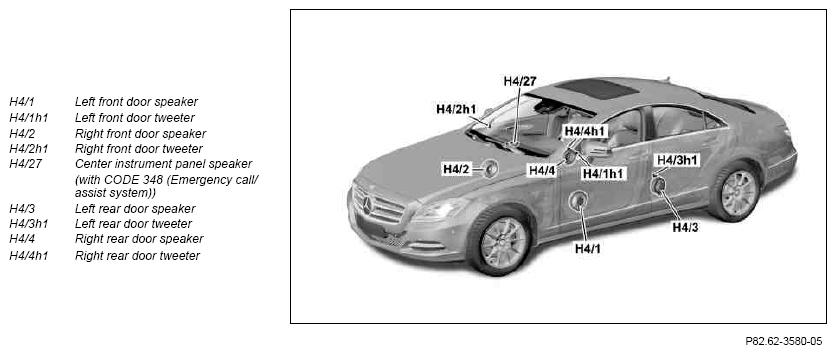

Speaker system except CODE 810 (Sound system) and except CODE 811 (Advanced sound system), shown in model 218.3

Fig 5: Overview Of Telematics System Components - Speaker System Except Code 810
G10004637Courtesy of MERCEDES-BENZ USA

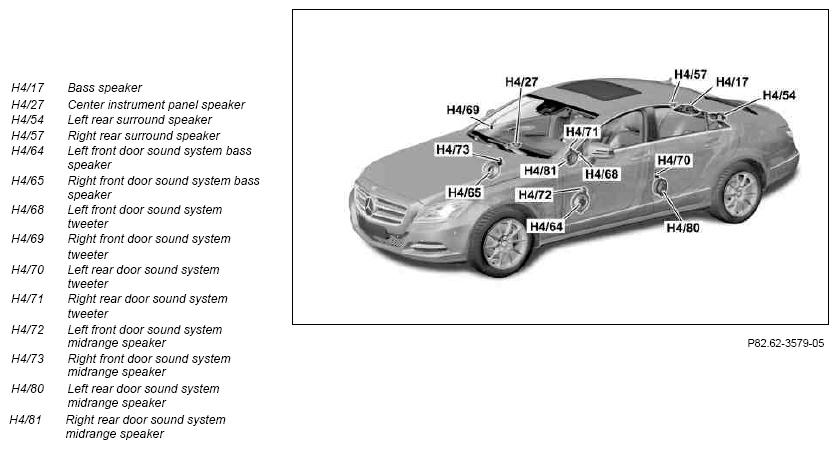

Speaker system with CODE 810 (Sound system), shown in model 218.3

Fig 6: Overview Of Telematics System Components - Speaker System With Code 810
G10004638Courtesy of MERCEDES-BENZ USA

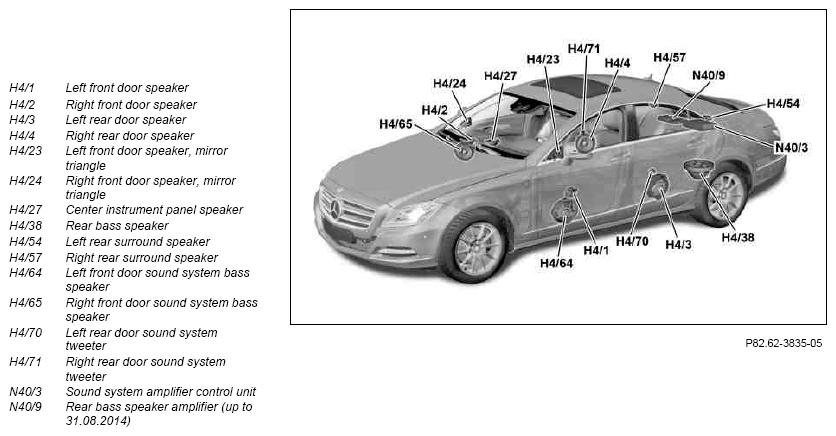

Speaker system with CODE 811 (Advanced sound system), shown in model 218.3

Fig 7: Overview Of Telematics System Components - Shown In Model 218.3
G10004639Courtesy of MERCEDES-BENZ USA

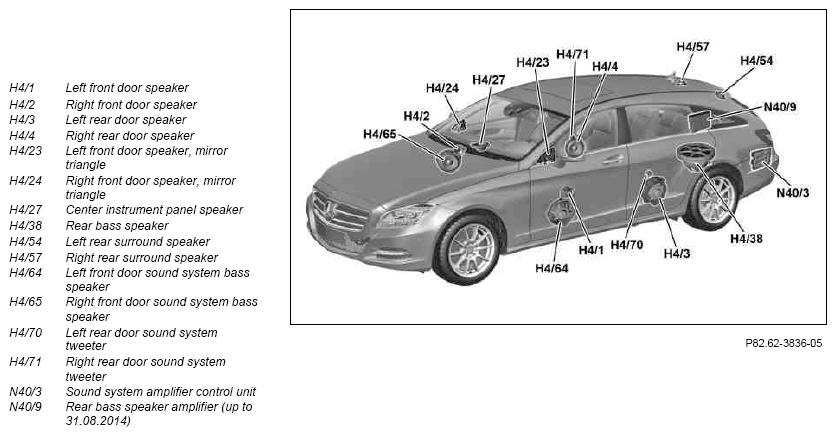

Speaker system with CODE 811 (Advanced sound system), shown on model 218.9

Fig 8: Overview Of Telematics System Components - Shown In Model 218.9
G10004640Courtesy of MERCEDES-BENZ USA
  Component description for Electronic Stability Program control unit MODEL 218.3
as of model year 2013 up to model year 2014
MODEL 218.9
as of model year 2013 up to model year
N304, N307		 GF42.45-P-5119FQ 2014
MODEL 218
as of model year 2014
N304, N307		 GF42.45-Q-5119FQA
  Component description for Audio/COMAND control panel A40/9 GF54.21-P-4501FQ
  Component description for rear SAM control unit with fuse and relay module N10/2 GF54.21-P-6030FQ
  Component description for steering column tube module control unit N80 GF54.21-P-6051FQ
  Component description for front SAM control unit with fuse and relay module N10/1 GF54.21-P-6070FQ
  Component description for instrument cluster A1 GF54.30-P-6000FQ
  Component description for Audio/COMAND display MODEL 218 as of 9/1/14
as of model year 2013
with CODE 505 (Radio 20 NTG5, not navigation-enabled)
MODEL 218 as of 9/1/14
as of model year 2013
with CODE 522 (Audio 20 radio)
MODEL 218 as of 9/1/14
as of model year 2013
with CODE 531 (COMAND APS) A40/8		 GF54.30-P-6150FQM
MODEL 218
as of model year 2013
without CODE 867 (SPLITVIEW)
A40/8		 GF54.30-P-6150FQ
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001FQ
  Component description for overhead control panel control unit MODEL 218
as of model year 2013
with CODE 414 (Sliding sunroof)
S93/3, S93/6s1, S93/6s2		 GF82.20-P-5216FQ
  Digital TV tuner, component description MODEL 218
as of model year 2013 up to model year 2015
with CODE 865 (TV tuner)
A90/3		 GF82.60-P-3118FQ
  Component description for the radio MODEL 218
as of model year 2013 up to model year 2015
with CODE 510 (Audio 20 CD with 6-disc CD changer)
MODEL 218
as of model year 2013 up to model year 2015
with CODE 523 (Audio 20 CD)
A2		 GF82.60-P-3122FQ
MODEL 218
as of model year 2015
with CODE 505 (Radio 20 NTG5, not navigation-enabled)
MODEL 218
as of model year 2015
with CODE 522 (Audio 20 radio)
A2		 GF82.60-P-3122FQM
  Component description for media interface control unit MODEL 218
as of model year 2013 up to model year 2015
with CODE 518 (Media interface)
N125/1		 GF82.60-P-5000FQA
  Tuner unit, component description MODEL 218
as of model year 2015
with CODE 536 (SIRIUS satellite radio)
MODEL 218
as of model year 2015
with CODE 537 (Digital radio (DAB))
MODEL 218
as of model year 2015
with CODE 865 (TV tuner)
A90/4		 GF82.60-P-5015FQM
  Component description for Digital Audio Broadcasting control unit MODEL 218
as of model year 2013 up to model year 2015
with CODE 537 (Digital radio (DAB))
N87/3		 GF82.62-P-5000FQ
  Component description for sound system amplifier control unit MODEL 218
as of model year 2013
with CODE 810 (Sound system)
without CODE 811 (Advanced sound system)
N40/3		 GF82.62-P-5010FQ
MODEL 218
as of model year 2013
with CODE 811 (Advanced sound system)
without CODE 810 (Sound system)
N40/3		 GF82.62-P-5010FQA
  Telematics services communications module, component description MODEL 218
as of model year 2013
with CODE 350 (Ecall emergency call system, Europe)
N112/2		 GF82.85-P-0220FQ
  Satellite digital audio radio (SDAR) control unit, component description MODEL 218
as of model year 2013 up to model year 2015
with CODE 536 (SIRIUS satellite radio)
N87/5		 GF82.85-P-3121FQ
  Component description for COMAND controller unit MODEL 218
as of model year 2015
with CODE 531 (COMAND APS)
A40/3		 GF82.85-P-3136FQM
MODEL 218.3
as of model year 2013 up to model year 2015
with CODE 512 (COMAND APS with DVD changer)
MODEL 218.3
as of model year 2013 up to model year 2015
with CODE 527 (COMAND APS with single DVD drive (with navigation))
MODEL 218.3
as of model year 2013 up to model year 2015
with CODE 528 (COMAND with DVD changer)
MODEL 218.9
as of model year 2013 up to model year 2015
with CODE 512 (COMAND APS with DVD changer)
MODEL 218.9
as of model year 2013 up to model year 2015
with CODE 527 (COMAND APS with single DVD drive (with navigation))
MODEL 218.9
as of model year 2013 up to model year 2015
with CODE 528 (COMAND with DVD changer)
A40/3		 GF82.85-P-3136FQB
  Cradle for navigation module, component description MODEL 218
as of model year 2013
with CODE 508 (Navigation box preinstallation)
with CODE 509 (Navigation box)
A2/30-1		 GF82.85-P-3137FQ
  Component description for emergency call system control unit MODEL 218
as of model year 2013
with CODE 348 (Emergency call/assistant system)
N123/4		 GF82.95-P-3212FQV
  Supplemental restraint system control unit, component description N2/10 GF91.60-P-4080FQ
  Table of contents for function description, telematics MODEL 218
as of model year 2013		 GF82.85-P-0993FQ
