Component description for media interface control unit - GF82.60-P-5000FQA
MODEL 218 as of model year 2013 up to model year 2015 with CODE 518 (Media interface)

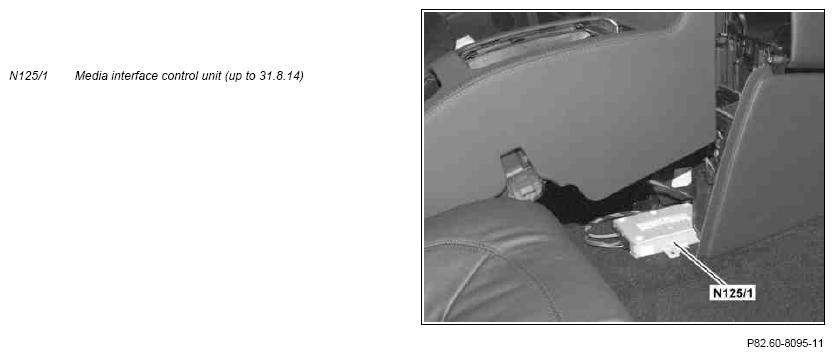

Rear center console, partly disassembled
Location
The media interface control unit (up to 31.8.14) is installed on the propeller shaft tunnel beneath the rear center console.
Task
- Receive signals
- Transmitting signals
Receive signals
- Direct lines
- Media Oriented System Transport (MOST)
Direct lines
- Power supply via circuit 31 and circuit 30g
- Audio signals and data from Media Interface electrical connector (X18/70) via a prefabricated connecting cable
- Electronic wake-up for MOST
Media Oriented System Transport (MOST)
- Control and operating signals from the audio equipment
Transmitting signals
- Direct lines
- MOST
Direct lines
- General power supply to Media Interface electrical connector and for universal serial bus (USB)
- Control signals to media interface electrical connector via a prefabricated connecting cable
MOST
- Audio signals and data to the audio equipment
| Wiring diagram for media interface control unit | PE82.60-P-2105-97XAA |
