Remove/install radiator - AR20.20-P-3865MNA
ENGINE 177 in MODEL 205
| Remove/install | |||
| 1 | Drain off coolant | AR20.00-P-1142LW | |
| 2 | Remove fan unit | AR20.40-P-5050MNA | |

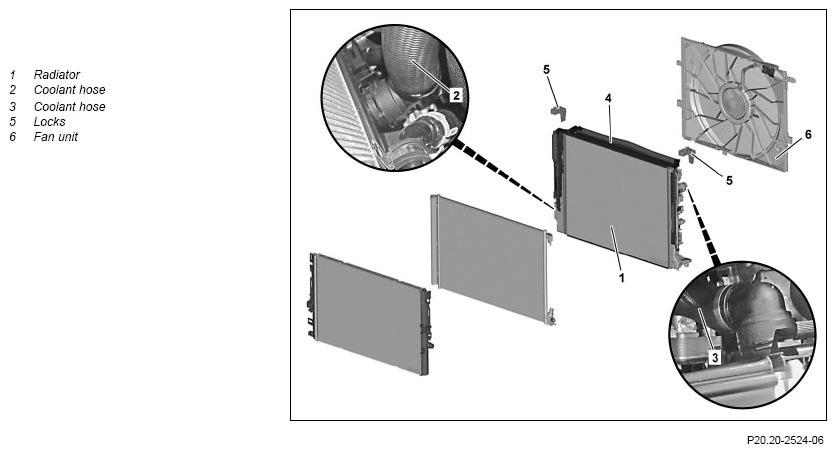

| 3 | Remove locks (5) | ||
| 4 | Detach coolant hose (2) at radiator (1) | AR20.20-P-7441-01RQ | |
| 5 | Detach upper refrigerant line on condenser | AR83.30-P-6540LWA | |
| 6 | Detach coolant hose (3) at radiator (1) | AR20.20-P-7441-01RQ | |
| 7 | Unclip engine oil cooler and lay down to side with lines connected | AR18.30-P-1000MNA | |
| 8 | Unlock cooler (1) and remove upwards | ||
| 9 | Check radiator (1) for damage; replace if necessary | ||
| 10 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Perform an engine test run and check engine cooling system for proper operation |
