Remove/install rear axle brake caliper - AR42.10-P-0080LW

MODEL 205

Shown on right side of vehicle, with CODE 489 (AIRmatic), except CODE B07 (Ceramic brake system)

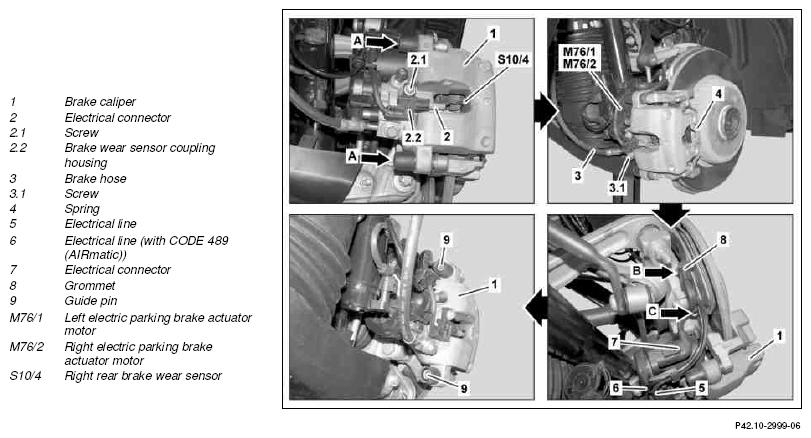

Fig 1: Rear Axle Brake Caliper Remove/Install Components - Shown On Right Side Of Vehicle With Code 489

Courtesy of MERCEDES-BENZ USA

Shown on right side of vehicle, except CODE B07 (Ceramic brake system)

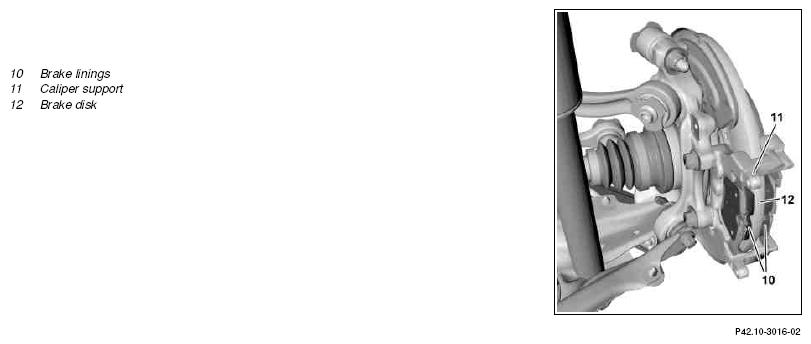

Fig 2: Rear Axle Brake Caliper Remove/Install Components - Shown On Right Side Of Vehicle Except Code B07

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Remove/install
1	Remove cover over brake fluid expansion reservoir
2	Clean area surrounding the cap of the brake fluid expansion reservoir	Assembly cleaner	*BR00.45-Z-1028-04A
3	Unscrew the cap on the brake fluid expansion reservoir and suction off some brake fluid	This prevents the expansion reservoir from overflowing when the brake pistons are pushed back.
4	Move brake lining (10) of rear axle into assembly position		AR42.10-P-1700-02W
		Do not depress the service brake during "Move to assembly position" procedure. Otherwise the spindle in the brake caliper (1) will be damaged. The engine hood must be closed.
5	Switch off ignition and remove transmitter key
6	Remove corresponding complete wheel		AR40.10-P-1101A
7	Remove dust caps (arrows A)	MODEL 205 without CODE B06 (AMG high-performance braking system) without CODE B07 (Ceramic brake system) without CODE U70 (AMG high-performance composite braking system)
8	Remove spring (4) from brake caliper (1)	MODEL 205 without CODE B06 (AMG high-performance braking system) without CODE B07 (Ceramic brake system) without CODE U70 (AMG high-performance composite braking system)
9	Unhook electrical line (5) from bracket (arrow C)
10	Unhook electrical line (6) from bracket (arrow C)	MODEL 205 with CODE 489 (AIRMATIC)
11	Unhook grommet (8) from holder (arrow B)
12	Detach electrical connection (2) from brake wear sensor coupling housing (2.2)	When removing the brake caliper (1) on the right side of the vehicle.
13	Remove bolt (2.1) from brake wear sensor coupling housing (2.2) When removing the brake caliper (1) on the right side of the vehicle.
14	Release and detach electrical connector (7) from left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2)
15.1	Remove bolt (3.1) from brake hose (3) and let brake hose (3) hang down on one side	MODEL 205 without CODE B06 (AMG high-performance braking system) without CODE B07 (Ceramic brake system) without CODE U70 (AMG high-performance composite braking system) Seal the openings on the brake caliper (1) and brake hose (3) immediately. Otherwise adjacent components will be damaged by escaping brake fluid and the brake caliper (1) cannot be bled. The new brake caliper (1) comes in prefilled condition and it must not be drained. Otherwise the brake caliper (1) cannot be vented.
		Brake hose to brake caliper	*BA42.10-P-1002-04O
		Record plug	Figure
15.2	Unscrew brake hose (3) and hang to one side	MODEL 205 with CODE B06 (AMG high-performance braking system) MODEL 205 with CODE B07 (Ceramic brake system) MODEL 205 with CODE U70 (AMG high-performance composite braking system) Seal the openings on the brake caliper (1) and brake hose (3) immediately. Otherwise adjacent components will be damaged by escaping brake fluid and the brake caliper (1) cannot be bled. The new brake caliper (1) comes in prefilled condition and it must not be drained. Otherwise the brake caliper (1) cannot be vented.
		Brake hose to brake caliper	*BA42.10-P-1002-04O
		Record plug	Figure
16.1	Unscrew guide pin (9)	MODEL 205 without CODE B06 (AMG high-performance braking system) without CODE B07 (Ceramic brake system) without CODE U70 (AMG high-performance composite braking system)
		Guide pin at brake caliper support	*BA42.10-P-1003-12V
16.2	Remove screws/bolts from sliding bolts of brake caliper support (11)	MODEL 205 with CODE B06 (AMG high-performance braking system) MODEL 205 with CODE B07 (Ceramic brake system) MODEL 205 with CODE U70 (AMG high-performance composite braking system)
17	Remove brake caliper (1) from brake caliper support (11)
18	Remove left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2) from the brake caliper (1)	When replacing the brake caliper (1).
			AR42.20-P-0600LW
19	Remove brake linings (10) from brake caliper support (11)	When replacing the brake caliper support (11).
20	Remove bolts of brake caliper support (11) and remove brake caliper support (11)	When replacing the brake caliper support (11).
	Check
21	Check brake caliper (1) and dust boot on brake piston for leaktightness and damage	If there are problems: ↓ Replace brake caliper (1).
22.1	Check guide pin (9) for ease of movement	MODEL 205 without CODE B06 (AMG high-performance braking system) without CODE B07 (Ceramic brake system) without CODE U70 (AMG high-performance composite braking system) If there are problems: ↓ Replace brake caliper (1).
22.2	Check boots and sliding bolts on brake caliper support (11) for damage and ease of movement	MODEL 205 with CODE B06 (AMG high-performance braking system) MODEL 205 with CODE B07 (Ceramic brake system) MODEL 205 with CODE U70 (AMG high-performance composite braking system) If there are problems: ↓ Replace brake caliper support (11).
23	Check brake linings (10) for wear and that they are in good condition
			AP42.10-P-4252CAA
		In case of damage or excessive wear: ↓ Replace brake linings (10).
			AR42.10-P-1710LW
24	Check brake disk (12) for wear and that it is in good condition
			AP42.10-P-4256EW
		In case of damage or excessive wear: ↓ Replace brake disks (12).
			AR42.10-P-0220EWE
25	Check sealing rings of brake hose (3)	MODEL 205 without CODE B06 (grey-painted brake callipers) without CODE B07 (Ceramic brake system) without CODE U70 (red-painted brake callipers) If there are problems: ↓ Replace sealing rings and brake hose (3).
			AR42.10-P-0013LW
26	Install in the reverse order
27	Bleed brake system		AR42.10-P-0010LW
28	Depress brake pedal several times until brake linings (10) rest against brake disks (12)	Firm resistance should be noticeable at the brake pedal.
29	Carry out brake test on the test stand
			AP42.00-P-4290BA

Fig 3: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
