Replace brake hoses - AR42.10-P-0013LW

MODEL 205

MODEL 253

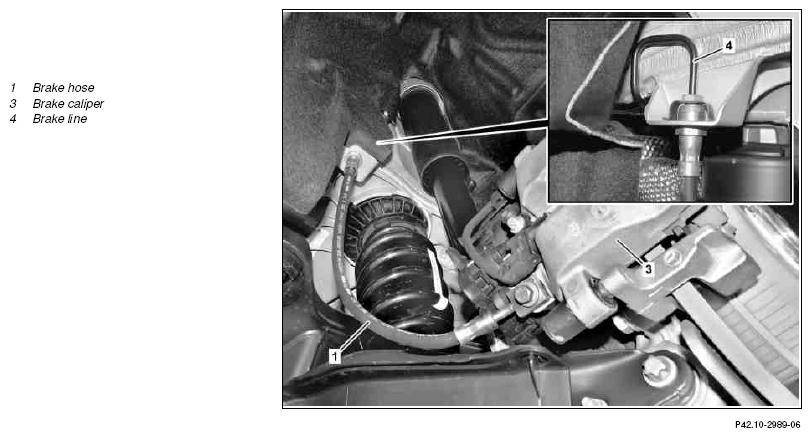

Rear brake hose (1), shown on model 205.004

Fig 1: Rear Brake Hose, Caliper And Line - Shown On Model 205.004

Courtesy of MERCEDES-BENZ USA

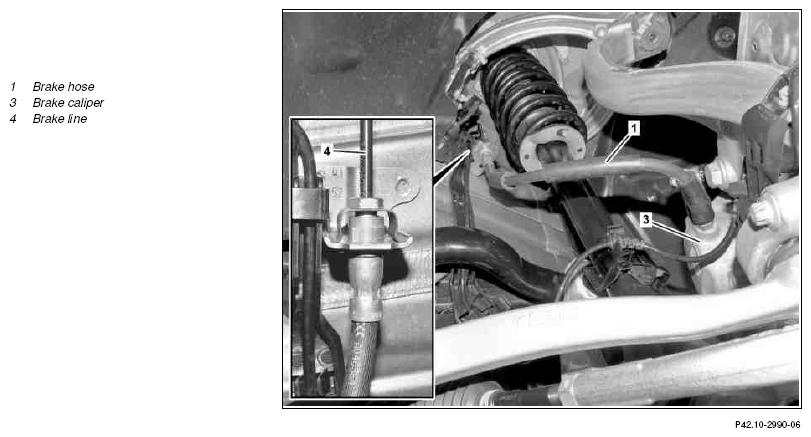

Front brake hose (1), shown on model 205.004 except code 489 (AIRmatic)

Fig 2: Front Brake Hose, Caliper And Line - Shown On Model 205.004 Except Code 489

Courtesy of MERCEDES-BENZ USA

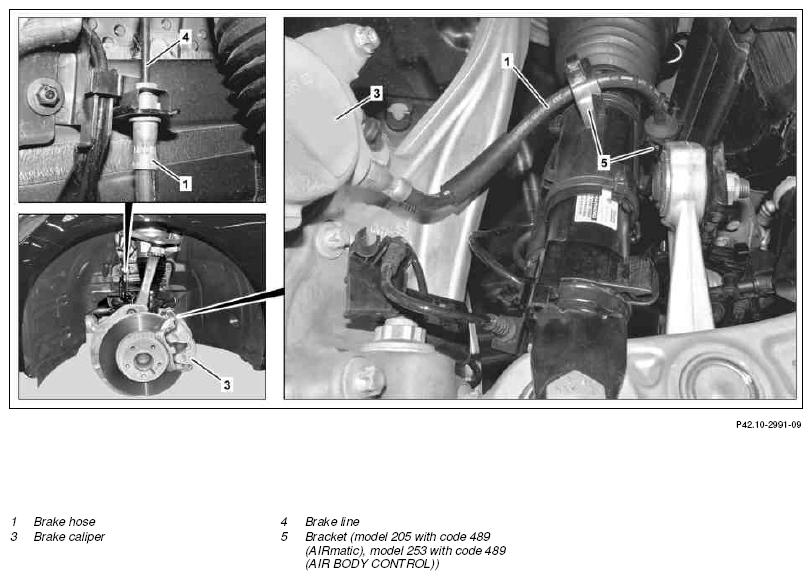

Front brake hose (1), shown on model 205.004 with code 489 (AIRmatic)

Fig 3: Front Brake Hose, Caliper And Line - Shown On Model 205.004 With Code 489

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on installing brake hoses		AH42.10-P-9406-01LW
	Remove/install
1	Remove corresponding complete wheel		AR40.10-P-1101A
2	Detach brake line (4) from brake hose (1)	Seal connections immediately. Damage can otherwise be caused by escaping brake fluid. The expansion reservoir for brake fluid must not run completely empty.
		Retaining screw, brake line to brake hose	*BA42.10-P-1001-04O
		Record plug	Fig 5
		Box wrench bit	Fig 4
3	Unhook brake hose (1) from brackets (5)	Model 205 with code 489 (AIRMATIC) Model 253 with code 489 (AIR BODY CONTROL) When removing brake hose (1) at front axle. The brake hose (1) must be routed between the brackets (5) and the brake line (4) in an arc leading downwards. Otherwise, the brake hose (1) may make contact with the wheel and tire assembly and then be damaged. Hook rubber grommets, starting at brake caliper (3), into bracket (5).
4	Unscrew brake hose (1) from brake caliper (3) and remove	When removing brake hose (1) at front axle. Collect escaping brake fluid.
		Brake hose to brake caliper	*BA42.10-P-1002-04O
		Box wrench	Fig 6
5	Unscrew banjo bolt and remove brake hose (1)	Model 205 (except 205.086/087/286/287/386/387) Model 253 When removing brake hose (1) at rear axle. Collect escaping brake fluid.
		Brake hose to brake caliper	*BA42.10-P-1002-04O
6	Unscrew brake hose (1) from brake caliper (3) and remove	Model 205.086/087/286/287/386/387 When removing brake hose (1) at rear axle. Collect escaping brake fluid.
		Brake hose to brake caliper	*BA42.10-P-1002-04O
		Box wrench bit	Fig 4
		Box wrench	Fig 6
7	Install in the reverse order
8	Bleed brake system		AR42.10-P-0010LW

Fig 4: Identifying Box Wrench Bit (000 589 75 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Box Wrench (000 589 76 03 00)

Courtesy of MERCEDES-BENZ USA
