Bleed brake system - AR42.10-P-0010LW

MODEL 205

MODEL 253

Shown on model 205

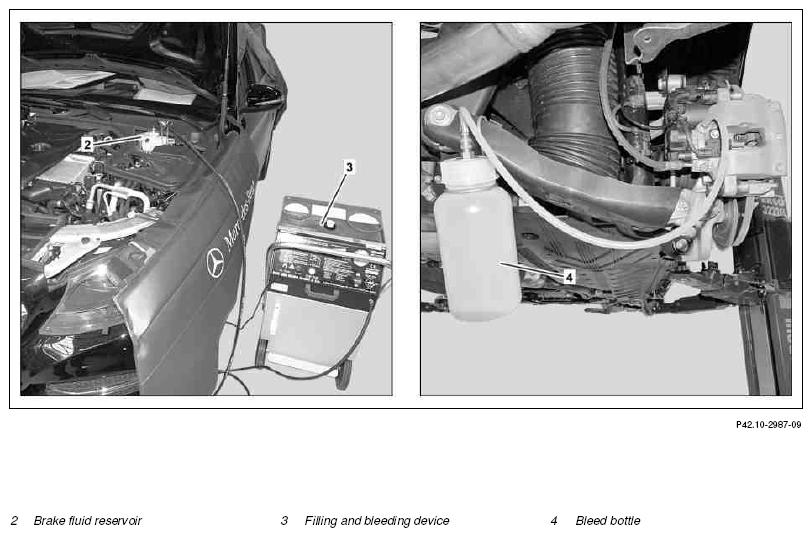

Fig 1: Bleeding Brake System - Shown On Model 205

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Remove
1	Remove cover above brake fluid reservoir (2)
	Clean
2	Clean the area around the cap of the brake fluid reservoir (2)	Assembly cleaner	*BR00.45-Z-1028-04A
3	Unscrew cap of brake fluid reservoir (2)
4	Fill brake fluid reservoir (2) with new brake fluid up to MAX mark
	Brake fluids (DOT 4 plus)		MB 331.0 brake fluid A 000 989 08 07
	General brake fluid		DOT 4. See GENERAL BRAKE FLUID (https://bevo.mercedes-benz.com/index.php?language_id=1)
5	Connect filler/bleeder unit (3) to brake fluid reservoir (2)
	000 588 01 82 00 Filling unit		WS25.00-P-0016B
	Brake fluids (DOT 4 plus)		MB 331.0 brake fluid A 000 989 08 07
	General brake fluid		DOT 4. See GENERAL BRAKE FLUID (https://bevo.mercedes-benz.com/index.php?language_id=1)
		Pay attention to manufacturer's operating instructions.
6	Switch on filler/bleeder unit (3)
7	Raise vehicle		AR00.60-P-1002LWG
	Bleeding
8	Carrying out bleeding operation		AR42.10-P-0010-02LW
		Bleed screw to brake caliper	*BA42.10-P-1002-12V
		Bleed screw at brake caliper	*BA42.10-P-1003-10W
9	Switch off filler/bleeder unit (3) and disconnect from brake fluid reservoir (2)
10	Correct fluid level in brake fluid reservoir (2)
		Model 205	AP42.10-P-4210CAA
		Model 253	AP42.10-P-4210B
	Check
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
11	Check brake system for leaks		AR42.10-P-0100-01V
	Install
12	Screw cap onto brake fluid reservoir (2)
13	Install cover over brake fluid reservoir (2)
