Remove/install tilting/sliding roof frame - AR77.20-P-3000LW
MODEL 205 with CODE 414 (Sliding sunroof)

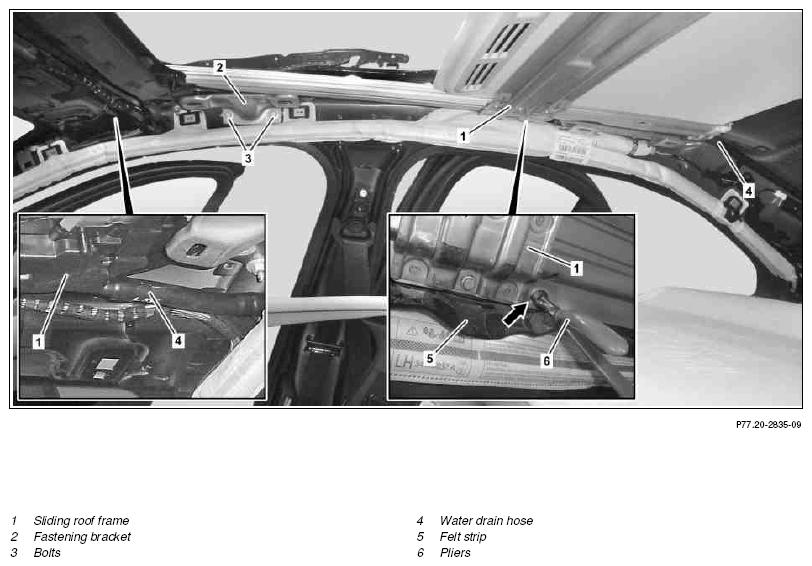

Shown on right side of vehicle

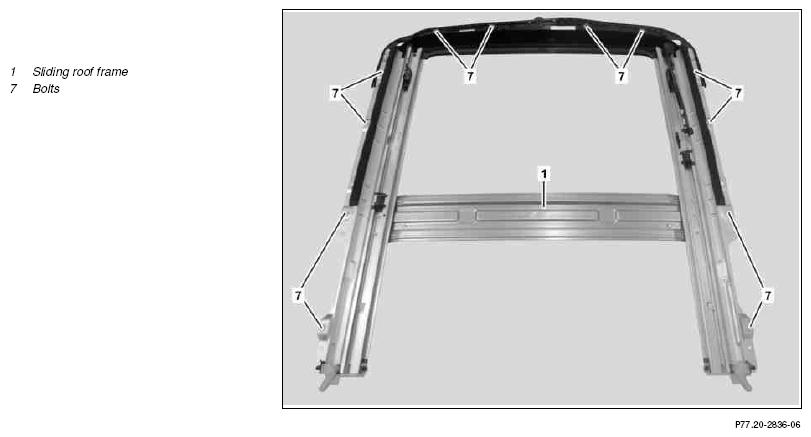

Shown on removed sliding roof frame (1)
| Remove/install | |||
| 1 | Remove wind deflector | When replacing sliding roof frame (1). | |
| AR77.20-P-2500LW | |||
| 2 | Remove water drain rail for sliding roof | When replacing sliding roof frame (1) or when removing tilt brackets. | |
| AR77.20-P-1997LW | |||
| 3 | Remove paneling from sliding roof frame When replacing sliding roof frame (1) or when removing tilt brackets. | ||
| AR77.20-P-0500LW | |||
| 4 | Lower headliner | MODEL 205 with CODE 414 (Sliding sunroof) |
|
| MODEL 205.0/1 with CODE 414 (Sliding sunroof) |
AR68.30-P-4300LW | ||
| 5 | Remove sliding roof control module | When replacing sliding roof frame (1) or when removing tilt brackets. | |
| AR77.20-P-3010LW | |||
| 6 | Unscrew bolts (3) on left and right side of vehicle | ||
| 7 | Remove mounting console (2) on left and right side of vehicle | ||
| 8 | Remove felt strips (5) | ||
| 9 | Insert pliers (6) on left and right side of vehicle into corresponding opening (arrow) | Fig 3 | |
| 10 | Remove water drain hoses (4) on left and right side of sliding roof frame (1) | Carefully remove water drain hoses (4). Damage can otherwise occur. |
|
| 11 | Remove screw/bolts (7) | ||
| 12 | Remove pliers (6) and sliding roof frame (1) through door cutout on passenger door from vehicle | Cover center console. Damage can otherwise occur. |
|
| 13 | Install in the reverse order | ||
| 14 | Normalize sliding roof | ||
| 15 | Connect diagnostic system, read out fault memory, perform teach-in run for sliding roof anti-pinch protection | ||
