Remove/install headliner - AR68.30-P-4300LW

MODEL 205.0/1

Shown with CODE 414 (Sliding roof)

Fig 1: Headliner Remove/Install Components - Shown With Code 414

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

With CODE 235 (Active park assist)

Fig 2: Headliner Remove/Install Components - Shown With Code 235

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

Shown with CODE 235 (Active park assist) and CODE 414 (Sliding roof)

Fig 3: Headliner Remove/Install Components - Shown With Code 235 & 414

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

Shown with CODE 414 (Sliding roof)

Fig 4: Headliner Remove/Install Components - Shown With Code 414

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

	Remove/install
1	Completely open sliding roof lining on sliding roof	MODEL 205.0/1 with CODE 414 (Sliding sunroof)
2	Completely open front roller sun blind and rear roller sun blind on panoramic roof	MODEL 205.0/1 with CODE 413 (Automatic panoramic sliding sunroof)
3	Completely open roller sun blind on rear window	MODEL 205.0/1 with CODE 540 (Electric sunblind for rear window)
4	Remove inside rearview mirror (A67)		AR68.40-P-0001LW

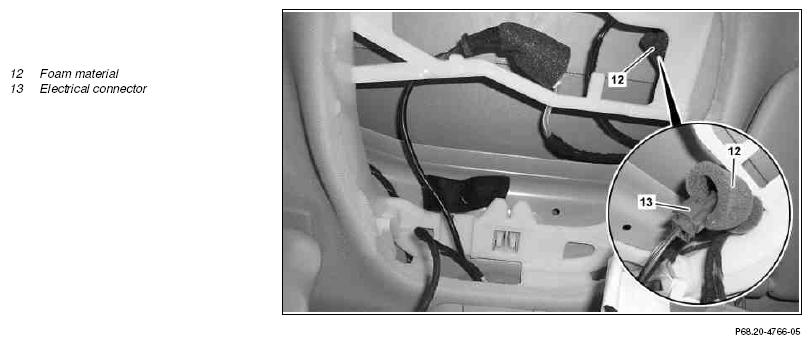

5	Slightly fold back foam material (12) and disconnect electrical connectors (13)	MODEL 205.0/1 with CODE 235 (Active Parking Assist) Completely pull foam material (12) over electrical connector (13). Otherwise noises can occur.

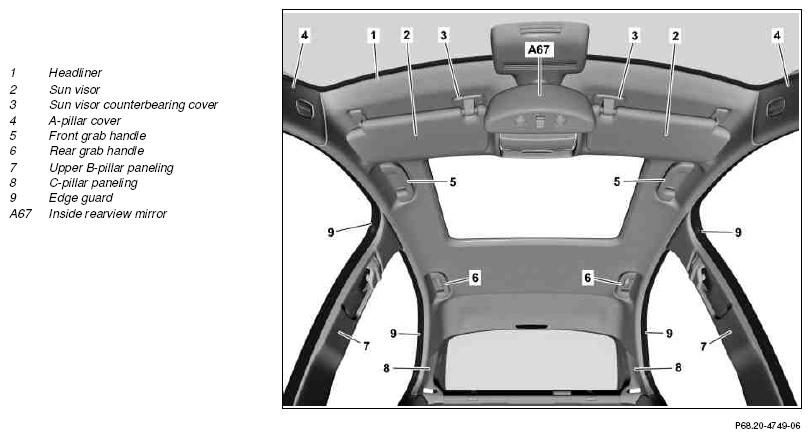

6	Remove left and right sun visor (2)
7	Unclip left and right sun visor counterbearing cover (3) from headliner (1)
8	Remove left and right A-pillar paneling (4)		AR68.30-P-4050LW
9	Remove front grab handle (5) and rear grab handle (6)		AR68.30-P-4330NKB
10	Remove left and right upper B-pillar paneling (7)		AR68.30-P-4700LW
11	Remove left and right C-pillar paneling (8) and place to one side with attached belt end fittings		AR68.30-P-4490LW
12	Remove left and right front seat		AR91.10-P-1000LW
13	Remove center console	MODEL 205.0/1 with TRANSMISSION 722, 724, 725	AR68.20-P-2000LW
		MODEL 205.0 with TRANSMISSION 716	AR68.20-P-2000LWA
14	Remove edge guards (9) from body flange in area of headliner (1)
15	Press catch hooks (arrows) together and unclip headliner (1) from front roof frame

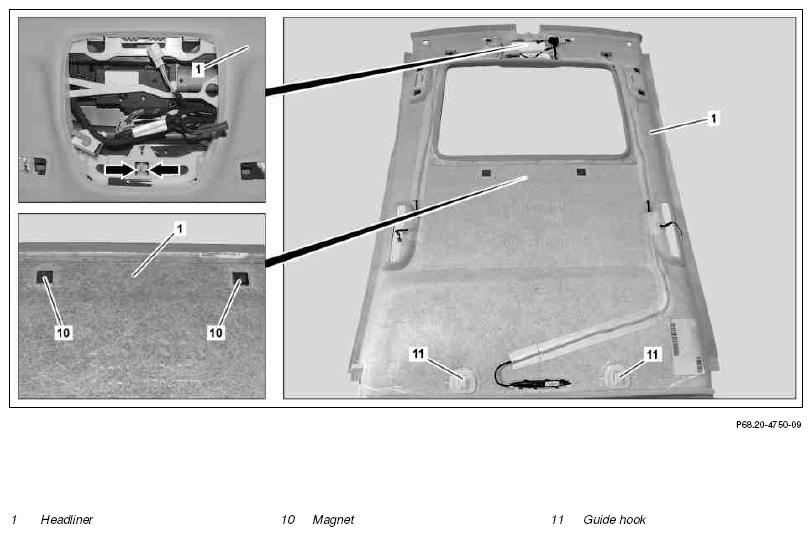

16	Detach headliner (1) on magnets (10) from roof bow	Helper required for holding headliner (1).
17	Push headliner (1) toward rear until guide hooks (11) are unhooked from rear roof frame and lay headliner (1) down into vehicle	Helper required.

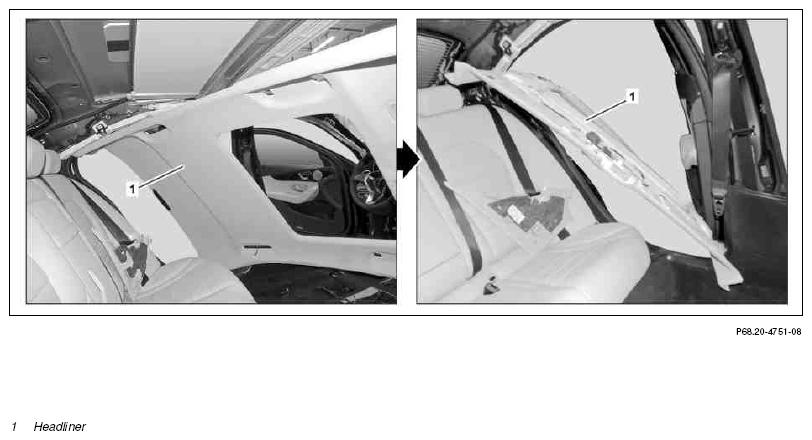

18	Remove headliner (1) through rear left door cutout from vehicle as shown	Do not bend headliner (1) excessively. Otherwise the headliner (1) can kink and be damaged. When replacing headliner (1) ↓ Prepare new headliner (1) for installation.
			AR68.30-P-4305-16LW
		Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide	*BR00.45-Z-1144-02A
19	Install in the reverse order
