Remove/install tilting/sliding roof motor - AR77.20-P-3010LW

MODEL 205 with CODE 414 (Sliding sunroof)

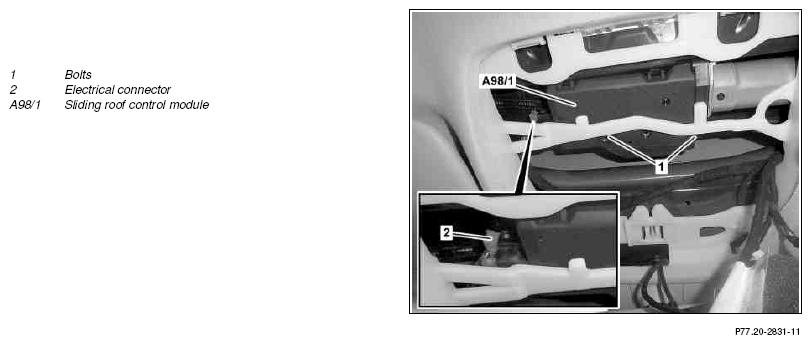

Fig 1: Tilting/Sliding Roof Motor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move sliding roof to tilt position
2	Detach overhead control panel control unit and let hang with connected electrical lines	MODEL 205 (except 205.4) with CODE 414 (Sliding sunroof)	AR82.20-P-1000LF
3	Remove bolts (1)	First position bolts (1) by hand and screw in, then tighten.
4	Remove sliding roof control module (A98/1) from headliner
5	Disconnect electrical connector (2) and remove sliding roof control module (A98/1)
6	Install in the reverse order
7	Normalize sliding roof
8	Connect diagnostic system, read out fault memory, perform teach-in run for sliding roof anti-pinch protection
			AD00.00-P-2000-04B
