Remove/install wind deflector - AR77.20-P-2500LW
MODEL 205 with CODE 414 (Sliding sunroof)
Shown on left side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Open sliding roof | ||
| 2 | Press wind deflector (1) on left and right edge of roof toward rear with assembly wedge and unhook retaining tab (2) on left and right | Carefully press wind deflector (1) toward rear. Otherwise the retaining tabs (2) on left and right can be damaged. |
|

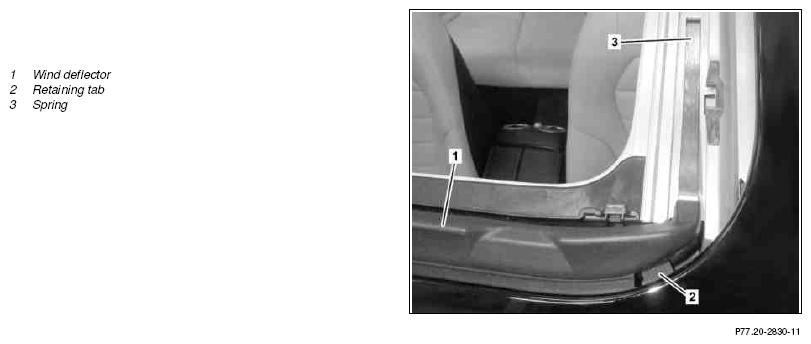

| Figure | |||
| 3 | Unhook spring (3) on left and right from sliding roof frame and remove wind deflector (1) | ||
| 4 | Install in the reverse order | ||
| 5 | Connect diagnostic system, read out fault memory, perform teach-in run for sliding roof anti-pinch protection | ||
