Remove/install water drain rail for sliding roof - AR77.20-P-1997LW
MODEL 205 with CODE 414 (Sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove glass roof | AR77.20-P-2852LW | |

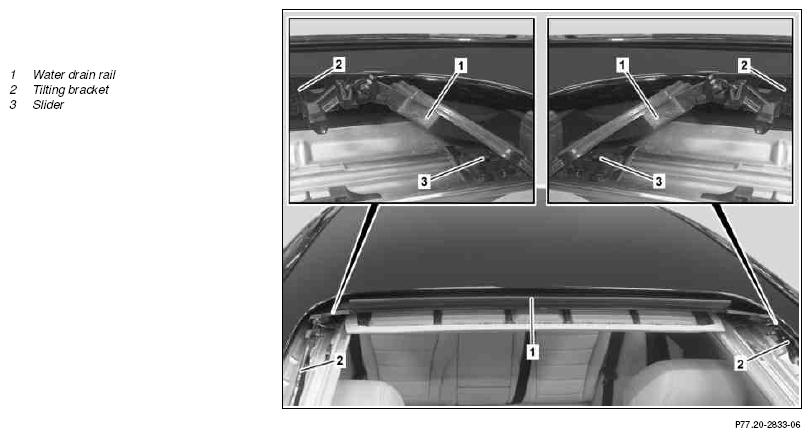

| 2 | Remove water drain rail (1) from tilt bracket (2) on right and left | ||
| 3 | Remove water drain rail (1) from slider (3) on right and left | ||
| 4 | Check slider (3) for damage | If slider (3) is damaged: ↓ Remove sliding roof frame and replace slider (3). |
|
| AR77.20-P-3000LW | |||
| 5 | Install in the reverse order |
