Remove/Install Center Exhaust System - AR49.10-P-7283LW

Engine 274, 276 in model 205

Courtesy of MERCEDES-BENZ USA

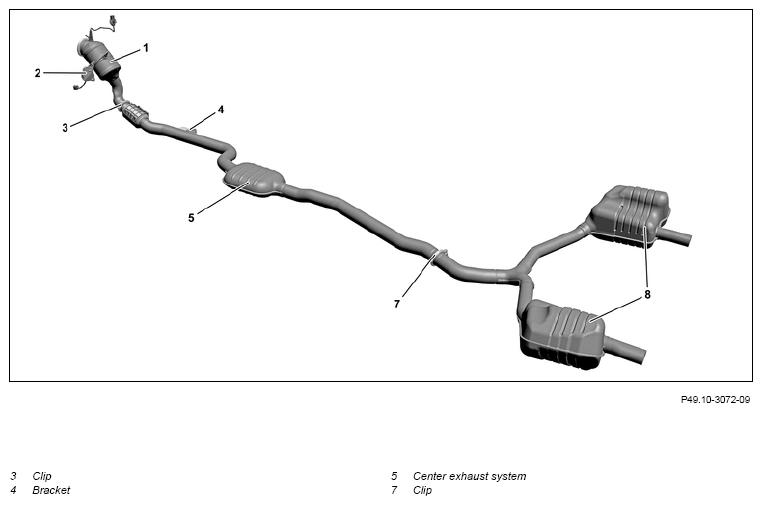

Shown on engine 274.9 without code 598 (Gasoline particulate filter (GPF) with sensor system)

Courtesy of MERCEDES-BENZ USA

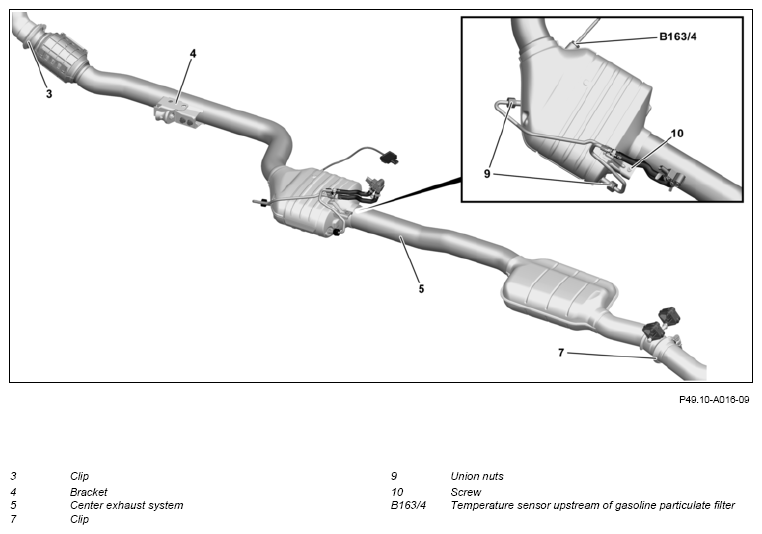

Shown on engine 274.9 with code 598 (Gasoline particulate filter (GPF) with sensor system)

Courtesy of MERCEDES-BENZ USA

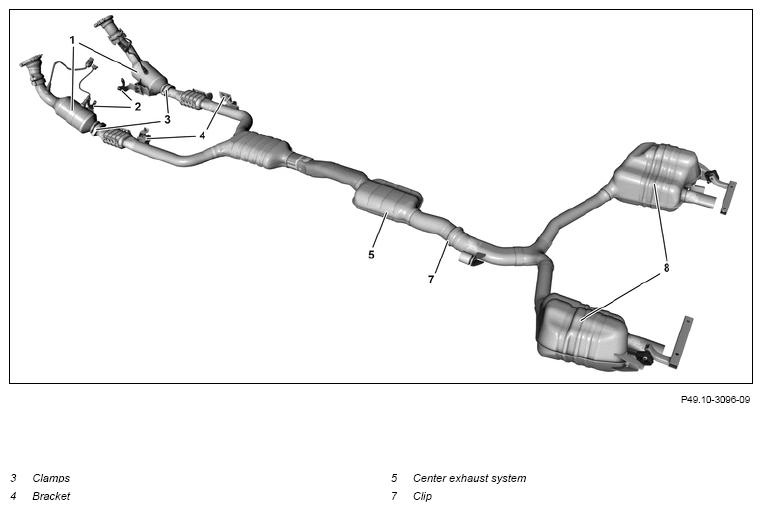

Shown on engine 276.8 without code 598 (Gasoline particulate filter (GPF) with sensor system)

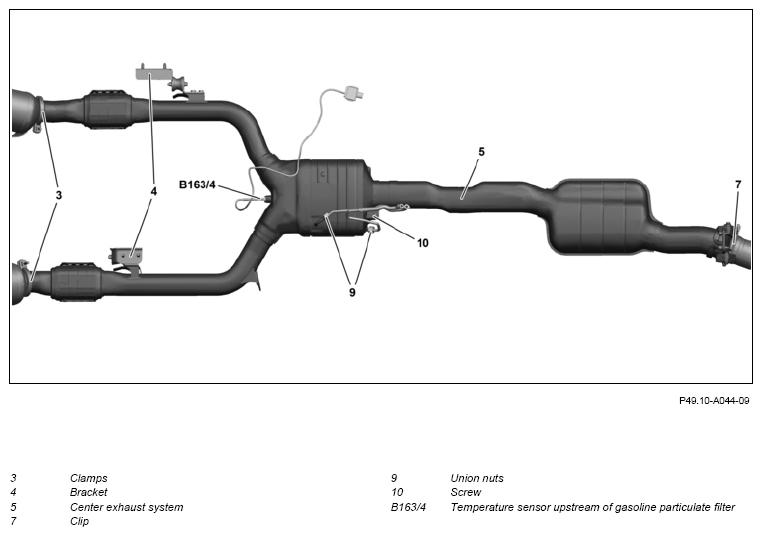

Shown on engine 276.8 with code 598 (gasoline particulate filter (GPF) with sensor system)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it.Risk of suffocation  and risk of poisoning  caused by inhalation of gaseous and solid components of the exhaust.Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	Remove/install
1	Remove center and rear sections of lower engine compartment lining.	Only install center and rear lower rear engine compartment paneling again after leak test.	AR61.20-P-1105LW
2	Remove left and right underfloor paneling.		AR61.30-P-1001LW

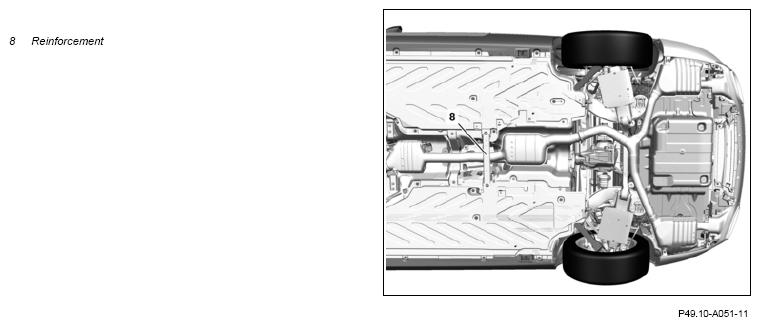

3	Remove reinforcement (8).	Bolt, rear reinforcement to frame floor assembly	*BA61.10-P-1004-01L
4	Remove NOx sensor.	Engine 274 in model 205 with code 920 (Direct petrol injection with stratified charging) except code 494 (US version)	AR07.70-P-0001MRA
5.1	Remove NOx storage catalytic converter temperature sensor and seal opening with a suitable stop plug.	Engine 274 in model 205 with code 920 (Direct petrol injection with stratified charging) except code 494 (US version)	AR07.70-P-0002MRA
		Record plug	Fig 1
5.2	Remove temperature sensor upstream of the gasoline particulate filter (B163/4) and seal opening with a suitable stop plug.	Engine 274, 276 in model 205 with code 598 (Gasoline particulate filter (OPF) with sensor system) Engine 276.8 in model 205 with code 598 (Gasoline particulate filter (OPF) with sensor system)	AR07.04-P-0070MNE
		Engine 274 in model 205 with code 598 (Gasoline particulate filter (OPF) with sensor system)	AR49.20-P-0200MRI
		Record plug	Fig 1
6	Remove union nuts (9), place lines to one side, and seal openings with suitable stop plugs.	Engine 274, 276 in model 205 with code 598 (Gasoline particulate filter (OPF) with sensor system) Coat thread with heat-resistant lubricating paste.
		Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
		Engine 276 in model 205 with code 598 (Gasoline particulate filter (OPF) with sensor system) Temperature sensor upstream of gasoline particulate filter to exhaust system	*BA07.04-P-1004-01E
		Engine 274 in model 205 with code 598 (Gasoline particulate filter (OPF) with sensor system) Union nut, line, differential pressure sensor, gasoline particulate filter	*BA07.04-P-1006-01N
		Box wrench bit	Fig 2
		Record plug	Fig 1
7	Support center exhaust system (5) with major assembly mount and mounting plate.
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
8	Remove the bolt (10).	Engine 274, 276 in model 205 with code 598 (Gasoline particulate filter (OPF) with sensor system)
		Screw, bracket of pressure line to gasoline particulate filter	*BA49.10-P-1020-02A
9	Remove clamp (3) or clamps (3).	Install new clamp (3) or clamps (3). Clamp, front exhaust system to catalytic converter/diesel particulate filter	*BA49.10-P-1005-02A
10	Remove clamp (7).	Replace clamp (7).
		Clamp, rear exhaust system to front exhaust system/rear exhaust system	*BA49.10-P-1011-02A
11	Remove rear elastomer bearings from the center exhaust system (5).	Engine 274, 276 in model 205 with code 598 (Gasoline particulate filter (OPF) with sensor system) Lightly wet elastomer bearings with lubricant. Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
12	Remove center exhaust system (5) from the bracket (4) and from the brackets (4) and remove downward.	Aid of helper required. Screw/bolt, bracket to front exhaust system	*BA49.10-P-1006-02A
	Clean
13	Remove combustion and corrosion residues from the separating point or separating points.	Commercially available devices/tools  Wire brushes
	Check
14	Check elastomer bearings for wear and damage.	If complaints are present, ↓ replace elastomer bearing. Lightly wet elastomer bearings with lubricant. Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
15	Install in the reverse order.
	Check
16	Check installation position and for unobstructed movement of center exhaust system (5).	If complaints are present, ↓ Correct installation position of the center exhaust system (5).
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
17	Perform engine test run, check function of the engine, and check leak tightness of the exhaust system.
18	Install center and rear lower engine compartment lining.		AR61.20-P-1105LW

Fig 1: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Box Wrench Bit (000 589 70 03 00)

Courtesy of MERCEDES-BENZ USA
