Remove/Install Poly-V Belt - Ar13.22-D-1202WE
ENGINES 651.955/956/957 in MODEL 906

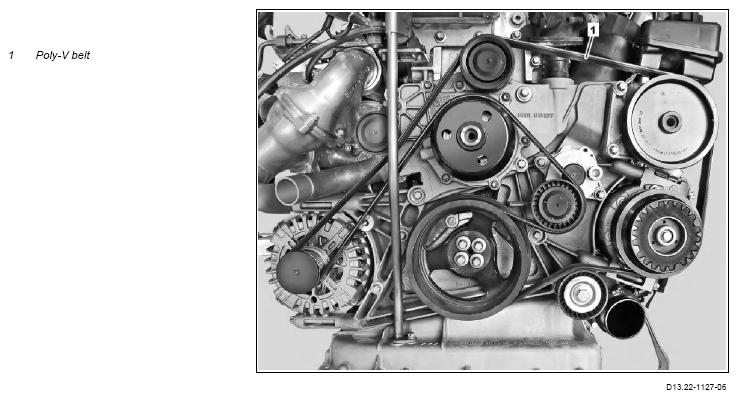

Shown for vehicles with code (HH9)
Regulated air conditioning, (Tempmatic)
| Remove/install | |||
| - | Risk of injury caused by moving parts that can pinch, crush or, in extreme cases, even sever extremities | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A |
| 1 | Remove engine trim panel | AR01.10-D-2405WE | |
| 2 | Remove poly-V belt for 2nd refrigerant compressor | For model 906 with code (H08) High performance A/C | AR13.21-D-0160WE |
| 3 | Loosen poly-V belt (1) | AR13.22-D-3902-05WE | |
| 4 | Remove poly-V belt (1) from belt pulley, guide pulley and remove to the rear | - | |
| - | - | Running diagram of poly-V belt (1) | AR13.22-D-3902-02WE |
| Checking | |||
| 5 | Check belt pulley profile, guide pulleys and clamping device | ||
| 6 | Check poly-V belt (1) for wear and damage | AR13.22-S-1351S | |
| 7 | Install in the reverse order | - | - |
| - | Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
| 8 | Perform an engine test run and check poly-V belt (1) for correct running; lay on poly-V belt (1) again if necessary | ||
