Check Poly-V Belt For Wear And Damage - Ar13.22-S-1351S
ENGINE 651.955/956/957 in MODEL 906

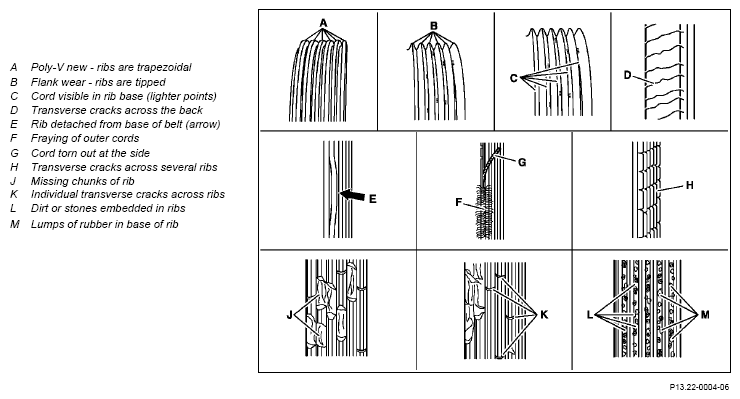

Damage profiles
| - | Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of the mechanism when the components are moving. | AS00.00-Z-0009-01A |
| Check | |||
| 1 | Turn engine with starter stepwise in direction of engine rotation and check condition of poly-V belt | Engine 651 in model 906 | AR01.10-D-0110WE |
| 2 | Compare damage profiles | If damage is present: ↓ Replace poly-V belt. |
- |
| - | - | Remove/install poly-V belt Engine 651 in model 906 |
AR13.22-D-1202WE |
| - | - | Remove V-belt of refrigeration compressor of air conditioning system, install | AR13.21-D-0160WE |
| - | - | ENGINE 651 in MODEL 906 with CODE H08 (High-performance air conditioning) for 2nd refrigerant compressor | |
