Remove/Install Engine Cover - Ar01.10-D-2405WE
Engine 651.955/956/957 in model 906

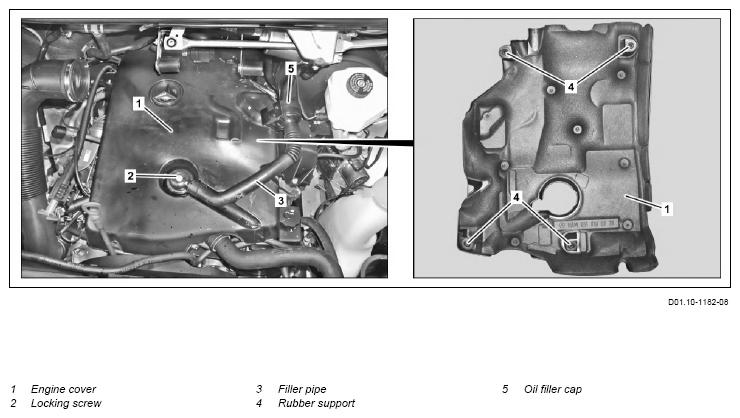

Shown: vehicle without disengagement shift tube in engine cover
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Remove/install | |||
| 1 | Remove air filter housing | AR09.10-D-1150WE | |
| 2 | Turn locking screw (2) through about 90° to the left and remove oil filler pipe (3) upwards | Vehicles without disengagement shift tube in engine cover (1) | |
| 3 | Unclip engine cover (1) upward and remove | ||
| 4 | Check rubber support (4) for damage; replace if necessary | ||
| 5 | Insert oil filler cover (5) of filler pipe (3) into the opening on the cylinder head cover | Vehicles without disengagement shift tube in engine cover (1) | |
| 6 | Install in the reverse order | ||
