Disassembling and assembling front door - AR72.10-P-0510LFS

MODEL 222 with CODE Z07 (Top protection)

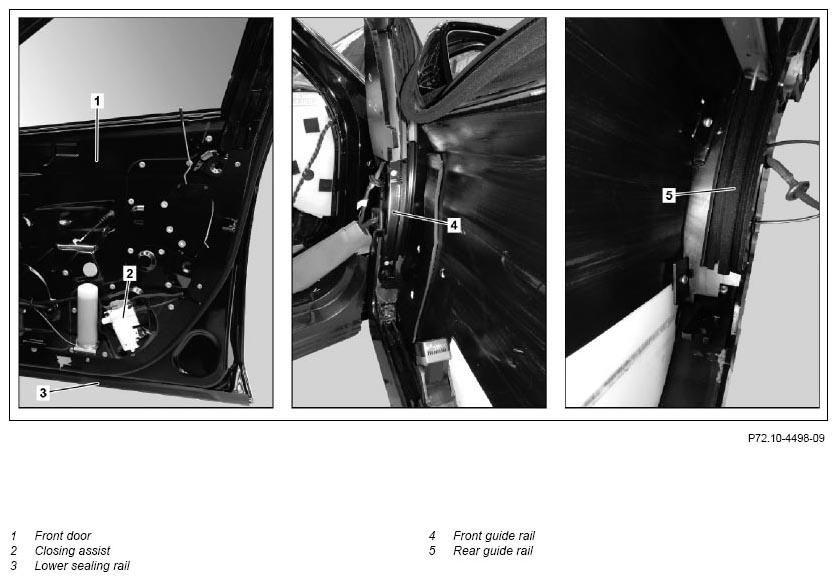

Fig 1: Front Door Disassembling/Assembling Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

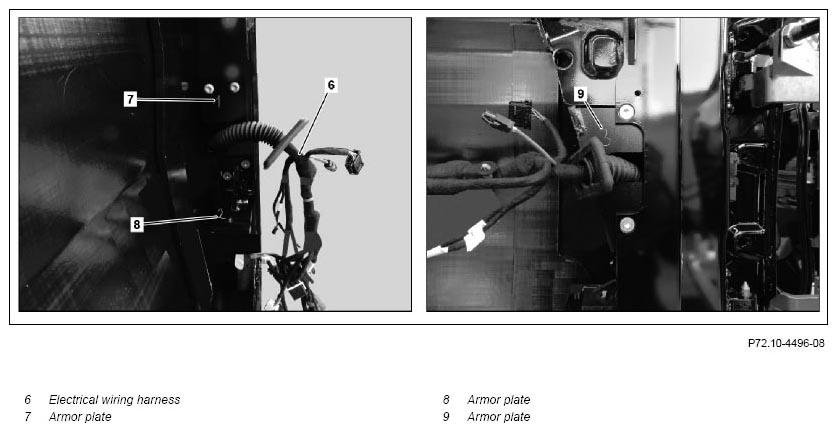

Fig 2: Front Door Disassembling/Assembling Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

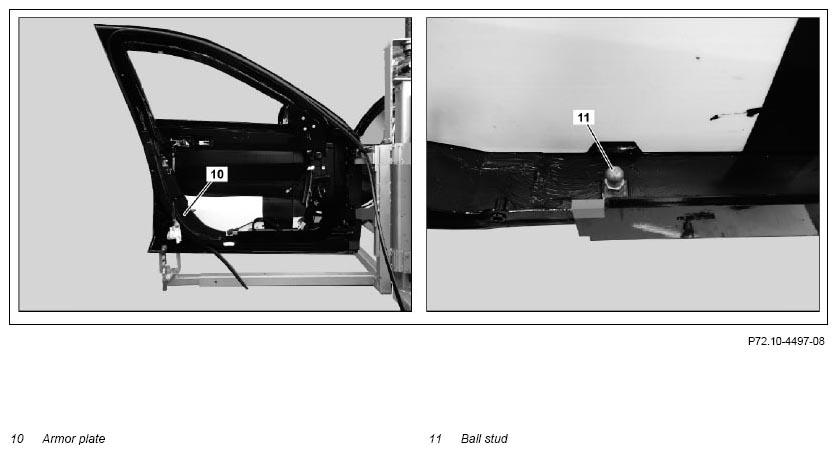

Fig 3: Front Door Disassembling/Assembling Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Disassemble
1	Remove seal for side window from front door (1)	Model 222 with code Z07 (Top protection) with code Z11 (Left front power window with special protection) with code Z12 (Right front power window with special protection)	AR72.10-P-1906LFS
2	Remove door holder		AR72.10-P-2100LFS
3	Remove sealing frame		AR72.10-P-2120LFS
4	Remove seal (top) from front door window frame		AR72.10-P-1550LFS
5	Remove door handle with lock cylinder
6	Remove front door lock		AR72.10-P-4011LFS
7	Unclip lower sealing frame (3) and remove
8	Remove inner armor plate (10)
9	Remove rear guide rail (5) (toward B-pillar) for side window	Model 222 with code Z07 (Top protection) with code Z11 (Left front power window with special protection) with code Z12 (Right front power window with special protection)
10	Remove front guide rail (4) (toward A-pillar) for side window	Model 222 with code Z07 (Top protection) with code Z11 (Left front power window with special protection) with code Z12 (Right front power window with special protection)
11	Remove armor plate (7, 8, 9)
12	Cut cable tie for electrical wiring harness (6) on front door (1)
13	Remove electrical wiring harness (6) from front door (1)
14	Remove closing assist (2) for front door (1) with electrical wiring harness
15	Remove bull stud (11) for door holder
16	Remove front door (1)	When replacing front door (1).	AR72.10-P-0500LFS
	Assemble
17	Install front door (1)	When replacing front door (1).	AR72.10-P-0500LFS
18	Adjust front door (1)		AR72.10-P-0550LFS
19	Install ball pin (11) for door holder	Bolt, ball stud to front door	*BA72.10-P-1007-01Y
20	Remove closing assist (2) for front door (1) with electrical wiring harness
21	Install electrical wiring harness (6) on front door (1)
22	Fasten electrical wiring harness (6) on front door (1) with cable tie	Always replace cable tie.
23	Install armor plate (7, 8, 9)	Bolt, armor plate to front door	*BA72.10-P-1009-01Y
24	Install front guide rail (4) (toward A-pillar) for side window	Model 222 with code Z07 (Top protection) with code Z11 (Left front power window with special protection) with code Z12 (Right front power window with special protection) Bolt, side window guide rail to front door	*BA72.10-P-1008-01Y
25	Install rear guide rail (5) (toward B-pillar) for side window	Model 222 with code Z07 (Top protection) with code Z11 (Left front power window with special protection) with code Z12 (Right front power window with special protection) Bolt, side window guide rail to front door	*BA72.10-P-1008-01Y
26	Install inner armor plate (10)	Bolt, armor plate to front door	*BA72.10-P-1009-01Y
27	Install front door lock		AR72.10-P-4011LFS
28	Install door handle with lock cylinder
29	Install door holder		AR72.10-P-2100LFS
30	Install lower sealing rail (3)
31	Clean front door window frame and coat with primer	Model 222 with code Z07 (Top protection) with code Z11 (Left front power window with special protection) with code Z12 (Right front power window with special protection) The front door window frame must be free of dust and grease. SIKA primer 209, 250 ml	*BR00.45-Z-1104-02A
		Cleaner	*BR00.45-Z-1025-04A
32	Moisten seal for side window on front door (1) with soapy water and insert into front door window frame	Model 222 with code Z07 (Top protection) with code Z11 (Left front power window with special protection) with code Z12 (Right front power window with special protection) Always replace seal for side window on front door (1).
33	Moisten seal (top) on front door window frame with soapy water and insert into front door	Always replace seal (top) on front door window frame.
34	Finish installation of seal (top) on front door window frame	The maximum adhesive force is reached after approx. 72 hours at 20 °C. Prevent any mechanical stress. Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 hours.	AR72.10-P-1550LFS
35	Install sealing frame on front door	Always replace sealing frame. The maximum adhesive force is reached after approx. 72 hours at 20 °C. Prevent any mechanical stress. Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 hours.	AR72.10-P-2120LFS
36	Finish installation of seal for side window on front door (1)	Model 222 with code Z07 (Top protection) with code Z11 (Left front power window with special protection) with code Z12 (Right front power window with special protection) The maximum adhesive force is reached after approx. 72 hours at 20 °C. Prevent any mechanical stress. Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 hours.	AR72.10-P-1906LFS

FRONT DOOR

Number	Designation		MODEL 222 with CODE Z07
BA72.10-P-1007-01Y	Bolt, ball stud to front door	Nm	120

FRONT DOOR

Number	Designation		MODEL 222 with CODE Z07
BA72.10-P-1008-01Y	Bolt, side window guide rail to front door	Nm	8

FRONT DOOR

Number	Designation			MODEL 222 with CODE Z07
BA72.10-P-1009-01Y	Bolt, armor plate to front door	M6	Nm	8
BA72.10-P-1009-01Y	Bolt, armor plate to front door	M8	Nm	25

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1104-02A	SIKA primer 209, 250 ml	A 009 989 75 71 09
