Remove/install headliner - AR68.30-P-4300GR

MODEL 463.222 /237 /243 /244 /245 /246 /247 /249 /270 /271 /322 /323 /332 /333 /336 /340 /341 /346

MODEL 463.236 /248 except CODE (979) Special protection version

Fig 1: Identifying Headliner Components (1 Of 5)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Headliner Components (2 Of 5)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Headliner Components (3 Of 5)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Headliner Components (4 Of 5)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Headliner Components (5 Of 5)

Courtesy of MERCEDES-BENZ USA

Illustrated on model 463.248

Fig 6: Identifying Headliner And Plate Clamps

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove paneling from tilting/sliding roof	Only with code (D27) Electric tilting/sliding roof	AR77.20-P-0500G
2	Fully open tilting/sliding roof	Only with code (D27) Electric tilting/sliding roof
3	Remove right front seat	Model 463.236/237/243/245/246/248/249/270/271/323/333/341/346	AR91.10-P-3300GR
		Model 463.222/244/247/322/332/336/340 wheelbase 2400 mm	AR91.10-P-1000GM
4	Remove rear seat and rear seat backrest	Except model 463.248 with code (SM1) Left rear electrically adjustable individual seat with armrest with code (SM2) Right rear electrically adjustable individual seat with armrest Only right rear seat.	AR91.12-P-1700G
5	Activate service mode in Telematic Alarm Identification on Demand (emergency call system) (TELE AID)	Only on model 463.243/244/245/250/309/322/323/332/333 with code (ET2) Tele-Aid - car telephone emergency call system, 463.247/248/254/270 up to 1.4.07 with code (ET2) Tele-Aid - car telephone emergency call system	AR82.95-P-0005-03GR
	Notes regarding the Tele-Aid emergency call system	Model 463.243/244/245/250/309/322/323/332/333, Model 463.247/248/254/270 up to 1.4.07	AH82.95-P-0001-01GA
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
6	Disconnect battery ground line		AR54.10-P-0003G
	Notes on battery	All models	AH54.10-P-0001-01A

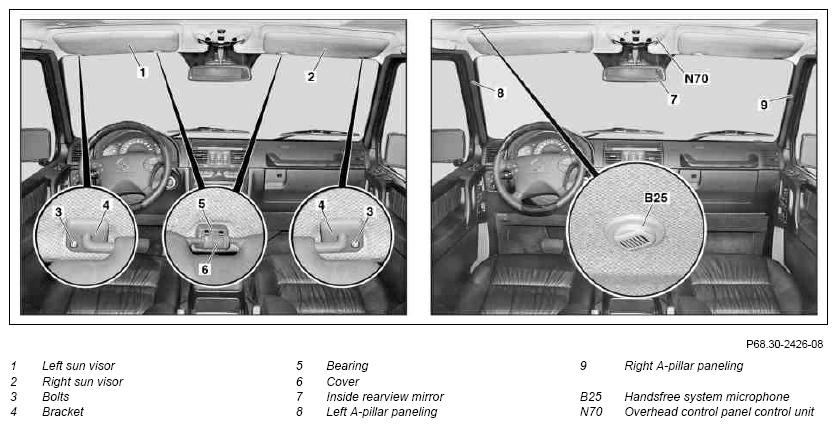

7	Pivot left sun visor (1) and right sun visor (2) to side and unscrew bolts (3) from corresponding brackets (4).
8	Remove left sun visor (1) and right sun visor (2)	Disconnect electrical connectors.
9	Remove bearing (5) from left sun visor (1) and right sun visor (2)	The bolt is located behind the cover (6), which can be folded downward.
10	Remove overhead control panel control unit (N70)		AR82.20-P-1000GM
11	Remove rearview mirror (7)		AR68.40-P-0001GM

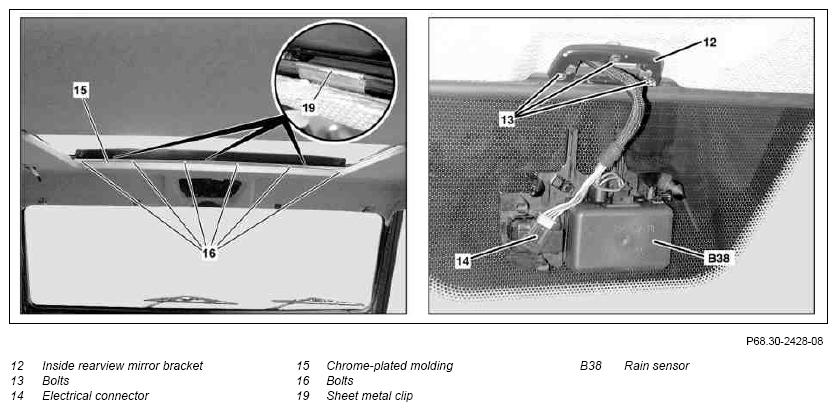

12	Detach electrical connector (14) at rain sensor (B38)
13	Remove inside rearview mirror bracket (12)	Remove bolts (13).
14	Remove hands-free system microphone (B25) from headliner (21)	Disconnect electric connector.
			Figure
15	Remove paneling on A-pillar.	Remove left A-pillar paneling (8) and right A-pillar paneling (9).	AR68.30-P-4050H
16	Remove paneling on B-pillar	Model 463.243/245/246/248/249/323/333 up to 31.5.04 wheelbase of 2850 mm	AR68.30-P-4700GN
		Model 463.243/245/246/248/249/323/333 As of 1.6.04 Model 463.236/237/270/271/341/346 Remove left and right paneling	AR68.30-P-4700GY
17	Remove rear paneling from roof frame.		AR68.30-P-4470GR

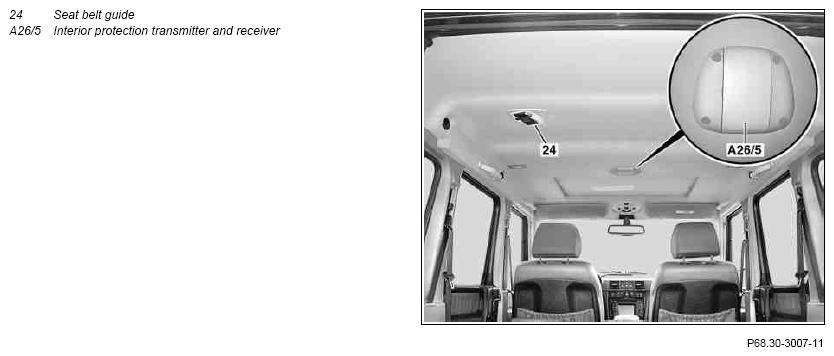

18	Remove belt guide (24) on center seat belt from headliner (21).	Only on model 463.243/245/246/248/249/323/333 as of 1.06.04, Model 463.222/236/237/270/271/336/340/341/346

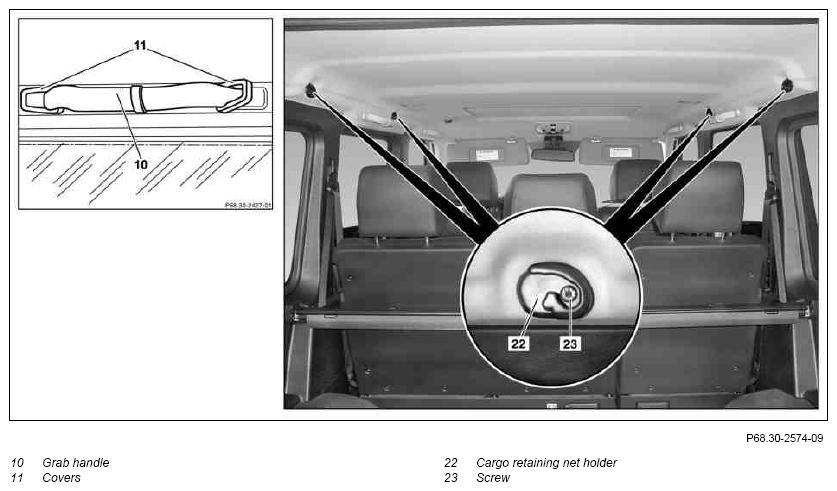

19	Remove grab handles (10)	Slide back covers (11) and unscrew bolts.
20	Remove cargo retaining net holder (22)	Remove bolt (23).
21	Remove rear seat reading lights		AR82.20-P-1120GR
22	Remove interior protection transmitter and receiver (A26/5)		Figure
23	Remove chrome molding (15)	Only with code (D27) Electric tilting/sliding roof The chrome molding (15) is fastened with six bolts (16).

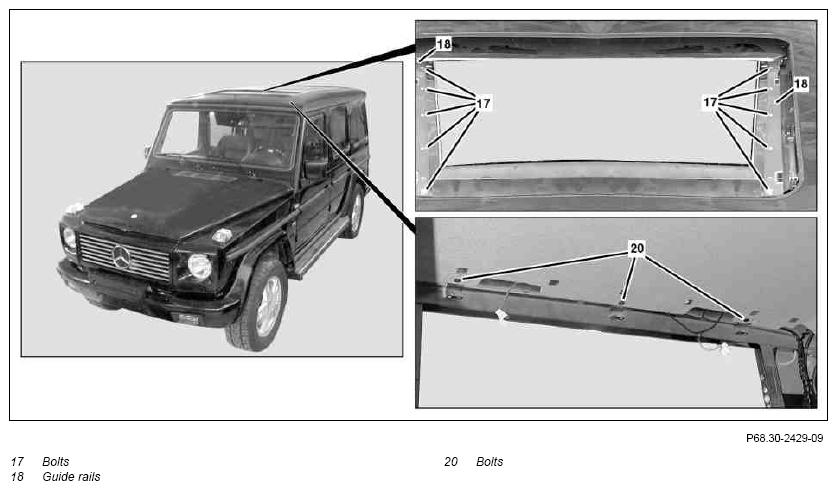

24	Unscrew bolts (17) from both guide rails (18)	Only with code (D27) Electric tilting/sliding roof
25	Remove guide rails (18) and coverings below	Only with code (D27) Electric tilting/sliding roof
		Installation:  Coat left and right slide shoes with lubricant paste.	*BR00.45-Z-1004-06A
26	Carefully separate headliner (21) from roof skin at the gluing points	Only with code (D27) Electric tilting/sliding roof
		Installation:  Remove adhesive residues and re-glue headliner (21) to specified points.	*BR00.45-Z-1002-02A

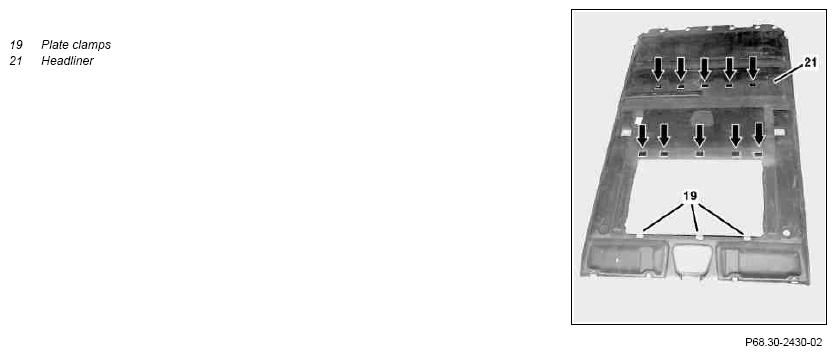

27	Unhook headliner (21) from tilting/sliding roof opening	Only with code (D27) Electric tilting/sliding roof To do this, detach the sheet metal clips (19).
28	Remove bolts (20) from headliner (21)
29	Separate velcro connections (arrows) between roof panel and headliner (21).	Secure headliner (21) against falling down with aid of second person
30	Lower headliner (21) on right and remove diagonally through rear door opening
31	Install in the reverse order
32	Deactivate service mode in Telematic Alarm Identification on Demand	Only on model 463.243/244/245/250/309/322/323/332/333 with code (ET2) Tele-Aid - car telephone emergency call system, 463.247/248/254/270 up to 1.4.07 with code (ET2) Tele-Aid - car telephone emergency call system	AR82.95-P-0005-03GR
	Notes regarding the Tele-Aid emergency call system	Model 463.243/244/245/250/309/322/323/332/333, Model 463.247/248/254/270 up to 1.4.07	AH82.95-P-0001-01GA
33	Read out fault memory and erase	STAR DIAGNOSIS Stored faults which may be caused by removed cables or by a simulation, must be processed and erased in the fault memories after completing the work.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
34	Check all removed components for proper function

Fig 7: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
