Remove/install rear roof frame paneling - AR68.30-P-4470GR

MODEL 463.222 /237 /243 /244 /245 /246 /247 /249 /270 /271 /322 /323 /332 /333 /336 /340 /341 /346

MODEL 463.236 /248 except CODE (979) Special protection version

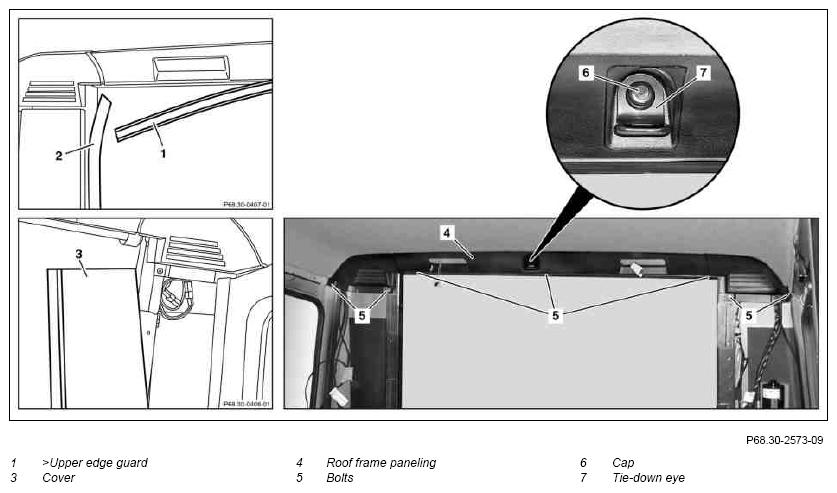

Fig 1: Identifying Rear Roof Frame Paneling Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove stowage box	Only on model 463.222/244/247/322/332/336/340 with code (V53) Stowage box and luggage compartment cover	AR68.72-P-0010GK
2	Remove upper edge guard (1)
3	Remove paneling (3 from left and right rear pillar		AR68.30-P-4505GK
4	Remove left and right side wall lining	Model 463.243/245/246/249/323/333 up to 31.5.04 463.248 to 31.5.04	AR68.30-P-1450GN
		Model 463.243/245/246/249/323/333 as of 1.6.04, 463.236/237/270/271/341/346 463.248 as of 1.6.04	AR68.30-P-1450GX
		Model 463.222/244/247/322/332/336/340 station wagon, wheelbase 2400 mm	AR68.30-P-1450GM
5	Remove rear dome lamps		AR82.20-P-0113A
6	Remove lashing eye (7)	Remove cap (6) and unscrew bolt.
7	Remove bolts (5)
8	Remove roof frame paneling (4)	Carefully remove toward rear because plastic guides can break off.
9	Install in the reverse order
