Removing and installing rear reading lamp - AR82.20-P-1120GR

MODEL 463.222 /236 /237 /243 /244 /245 /246 /247 /248 /249 /322 /323 /332 /333 /336 /340 /341 /346

MODEL 463.270 /271

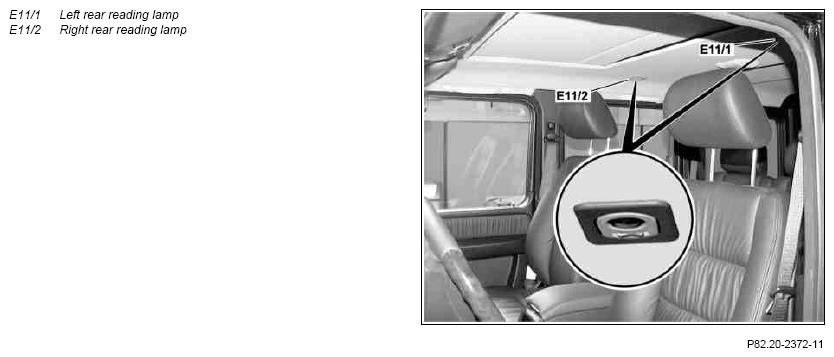

Fig 1: Identifying Rear Reading Lamps

Courtesy of MERCEDES-BENZ USA

	Removal/installation
1	Remove left rear reading lamp (E11/1) or right rear reading lamp (E11/2) from headliner	Perform removal and installation with care, since otherwise the headliner, the left rear reading lamp (E11/1) or the right rear reading lamp (E11/2) might break. Long wedge	Figure
2	Disconnect electrical connector
3	Install in the reverse order

Fig 2: Identifying Longitudinal Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
