Remove/install seat with console - AR91.10-P-3300GR

MODEL 463.236/237/243/245/246/248/249/270/271/323/333/341/346

Illustrated on model 463 up to 30.06.02

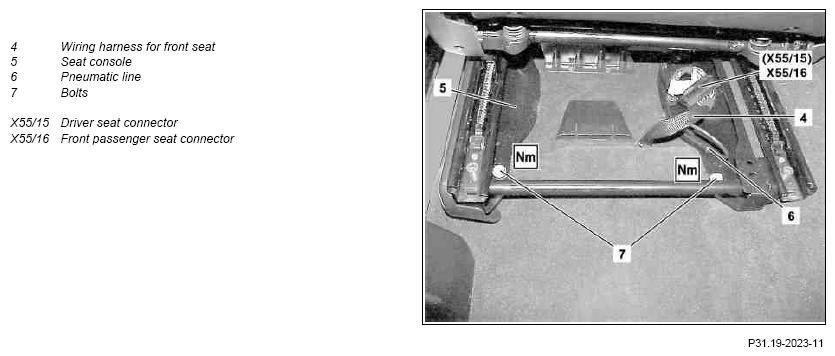

Fig 1: Identifying Seat With Console Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on front passenger seat

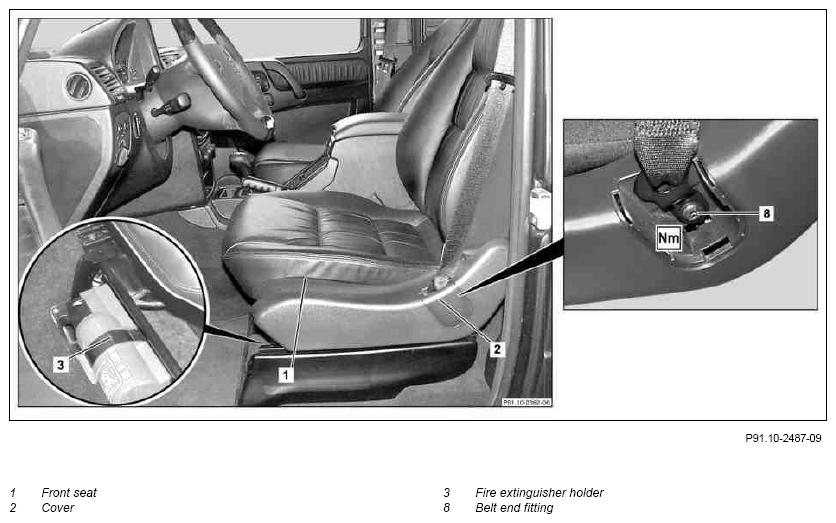

Fig 2: Identifying Seat With Console Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Activate service mode in Telematic Alarm Identification on Demand (emergency call system) (TELE AID)	Only on model 463.243/244/245/250/309/322/323/332/333 with code (ET2) Tele-Aid -car telephone emergency call system, 463.247/248/254/270 up to 1.4.07 with code (ET2) Tele-Aid - car telephone emergency call system	AR82.95-P-0005-03GR
	Notes regarding the Tele-Aid emergency call system	Model 463.243/244/245/250/309/322/323/332/333, Model 463.247/248/254/270 up to 1.4.07	AH82.95-P-0001-01GA
2	Remove sound system amplifier (N40/9)	Model 463.243/245/246/248/249/323/333, 463.270/271/341 up to 31.8.08 with code (E66) Sound system (Harman/Kardon)	AR82.62-P-7720GS
		Model 463.270/271/341 as of 1.9.08, 463.236/237/346 with code (E66) Sound system (Harman/Kardon), code (EU9) Surround sound system (Harman/Kardon Logic 7) Only when removing driver seat.	AR82.62-P-7720GZG
3	Remove TELE AID control unit (A35/8)	Model 463.246/249/271 with code (ET2) Tele-Aid car telephone emergency call system When removing front passenger seat.	AR82.95-P-0014US
4	Move front seat (1) to center position and highest position
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
5	Disconnect battery ground line	Except model 463.236/248 with code (979) Special protection version	AR54.10-P-0003G
		Model 463.236/248 with code (979) Special protection version, with code (ZS6) Special protection version (FB6), with code (E26) Additional battery 100 Ah incl. cutoff relay Model 463.236/248 with code (979) Special protection version, with code (ZS7) Special protection version (FB7), with code (E26) Additional battery 100 Ah incl. cutoff relay	AR54.10-P-0003PM
	Notes on battery	All models	AH54.10-P-0001-01A
6	Remove cover (2) and then the belt end fitting (8)		*BA91.40-P-1001-01C
			Figure
7	Remove fire extinguisher holder (3)	When removing driver seat.
8	Remove vehicle jack holder	When removing front passenger seat.
9	Detach front seat wiring harness (4) from attachment on seat console (5)	Installation:  Install new cable ties.
10	Disconnect driver seat connector (X55/15)	When removing driver seat.
11	Unplug the plug connector for the front passenger seat (X55/16)	When removing front passenger seat.
12	Press driver seat connector (X55/15) out of seat console (5)	When removing driver seat.
13	Press front passenger seat connector (X55/16) out of seat console (5)	When removing front passenger seat.
14	Disconnect pneumatic line (6) from coupling	Only with code (SM7) Left front multicontour seat or code (SM8) Front passenger multicontour seat
15	Remove bolts (7) on seat console (5) at front and rear	Sealant	*BR00.45-Z-1003-01A
16	Remove front seat (1) together with seat console (5)
17	Install in the reverse order
18	Deactivate service mode in Telematic Alarm Identification on Demand	Only on model 463.243/244/245/250/309/322/323/332/333 with code (ET2) Tele-Aid -car telephone emergency call system, 463.247/248/254/270 up to 1.4.07 with code (ET2) Tele-Aid - car telephone emergency call system	AR82.95-P-0005-03GR
	Notes regarding the Tele-Aid emergency call system	Model 463.243/244/245/250/309/322/323/332/333, Model 463.247/248/254/270 up to 1.4.07	AH82.95-P-0001-01GA
19	Read out fault memory and erase	STAR DIAGNOSIS Stored faults which may be caused by removed cables or by a simulation, must be processed and erased in the fault memories after completing the work.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
20	Perform function test on front seat (1)
21	Perform basic programming		AR00.19-P-0200P
