Remove/install paneling on tilting/sliding roof - AR77.20-P-0500G

MODEL 463.220 /221 /222 /224 /225 /227 /228 /230 /231 /232 /233 /236 /237 /240 /241 /243 /244 /245 /246 /247 /248 /249 /270 /271 /320 /321 /322 /323 /324 /325 /327 /328 /330 /331 /332 /333 /336 /340 /341 /346 with CODE (D27) Power tilting/sliding roof

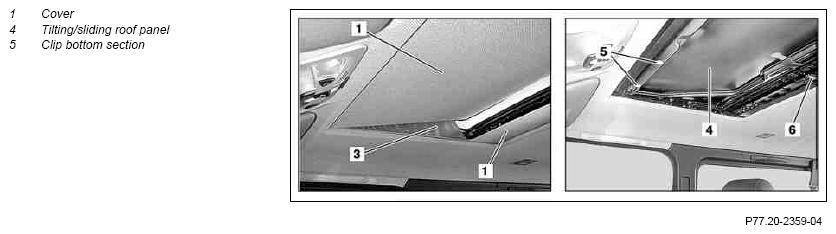

Fig 1: Identifying Cover, Tilting/Sliding Roof Panel And Clip Bottom Section

Courtesy of MERCEDES-BENZ USA

	Removing
1	Remove paneling (1)		AR77.20-P-0500-01EA
1	Remove paneling (1)		Figure
	Install
2	Install paneling (1)	MODEL 463.220 /221 /224 /225 /227 /228/230 /231 /232 /233 /240 /241 /320 /321 /324 /325/327 /328 /330 /331	AR77.20-P-0500-02EA
		Model 463.222/ 236/ 237/ 243/ 244/ 245/246/ 247 /248 /249 /270 /271 /322 /323 /332 /333/336 /340 /341 /346 If the paneling (1) loosens from the tilting/ sliding roof cover (4), replace clip bottom section (5): ↓	AR77.20-P-0500-02EC
		Replace clip bottom section	AR77.20-P-0500-03EA
	Checking
3	Check tilting/sliding roof for proper function	See owner's manual.

Special tools

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
