Remove/install transmission with torque converter - AR27.10-P-0500LHX

TRANSMISSION 722.96/97 in MODEL 217, 222

Shown on model 222 with engine 278

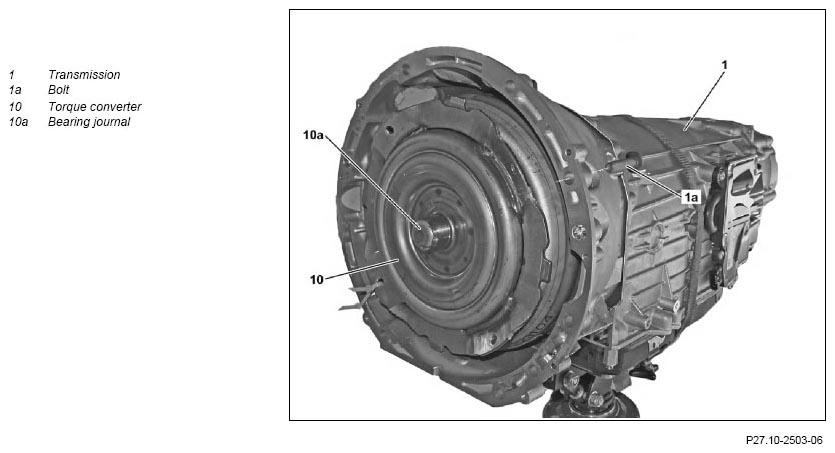

Fig 1: Transmission With Torque Converter Remove/Install Components - Shown On Model 222 With Engine 278

Courtesy of MERCEDES-BENZ USA

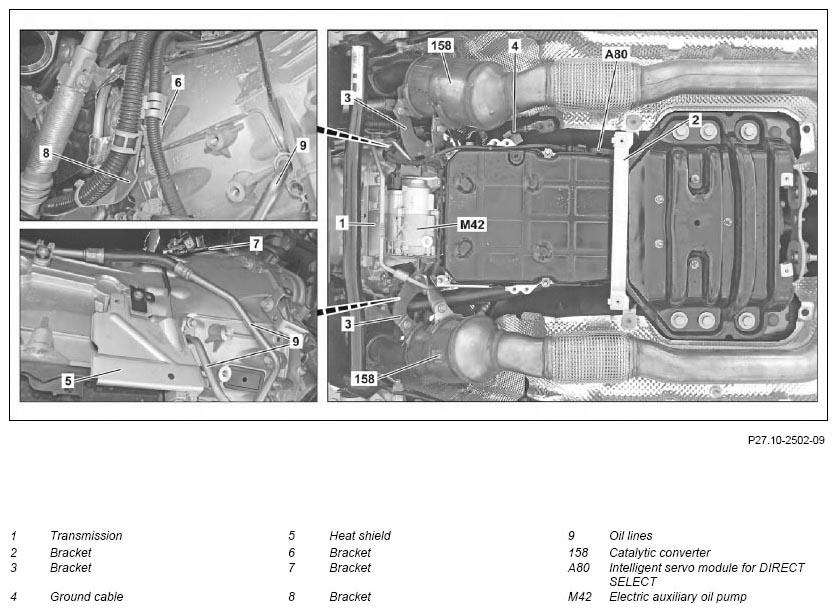

Fig 2: Transmission With Torque Converter Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Move selector lever to position N
2	Release parking brake
3	Secure vehicle on vehicle lift		AR00.60-P-0100CW
4	Disconnect ground line from battery		AR54.10-P-0003LF
5	Remove lower engine compartment panels and bracket (2)		AR61.20-P-1105LF
6	Release and disconnect electrical connector from intelligent servo module for DIRECT SELECT (A80), and create access to electrical line	Transmission 722.96/97 in model 222 with code Z07 (Top protection)	AR27.19-P-0550LFS
		Transmission 722.96/97 in model 217 Transmission 722.96/97 in model 222 except code Z07 (Top protection) Make sure that the electrical line is routed and secured correctly.	AR27.19-P-0550LF
7	Remove front axle gear propeller shaft		AR41.10-P-0070LFX
8	Remove left and right brackets (3)	Transmission 722.96 in model 217, 222 with engine 276.8 Transmission 722.96 in model 217, 222 with engine 278 Transmission 722.97 in model 217, 222 with engine 157	AR49.10-P-7100LF
9	Unclip and detach electrical connections for oxygen sensors from bracket at top of transmission (1) then expose lines	Transmission 722.96 in model 217, 222 with engine 278 Transmission 722.97 in model 217, 222 with engine 157	AR07.52-P-5303LFB
		Transmission 722.96 in model 217, 222 with engine 276.8 Make sure that the electrical lines are routed and secured correctly.	AR07.52-P-5303LFA
10	Detach ground line (4) from transmission (1)
11	Remove heat shield (5), disconnect electrical connector from electric controller unit and unclip electrical line from transmission (1)	Make sure that the electrical line is routed and secured correctly.	AR27.40-P-0700-01LF
12	Release and disconnect electrical connector from electric auxiliary oil pump (M42), and detach electrical line from transmission (1)	Make sure that the electrical line is routed and secured correctly.
13.1	Detach brackets (6, 7) at the left and top of the transmission (1)	Transmission 722.96 in model 217, 222 with engine 276.8 Transmission 722.96 in model 217, 222 with engine 278 Transmission 722.97 in model 217, 222 with engine 157 Bracket, wiring harness to automatic transmission	*BA27.40-P-1024-01A
13.2	Detach bracket (7) at top from transmission (1)	Transmission 722.96 in model 222 with engine 642 Bracket, wiring harness to automatic transmission	*BA27.40-P-1024-01A
14	Detach bracket (8) on left of oil pan	Transmission 722.96 in model 217, 222 with engine 278 Bolt, starter wiring harness to oil pan	*BA15.30-P-1004-01J
15	Detach left and right oil line (9) from transmission (1) and oil pan as well as from their clamps
16	Detach torque converter (10) from driver spider and pry off driver spider uniformly using long wedge	Do not use an impact wrench or compressed air tools to remove and screw in the bolts. The threaded unions in the driver spider will otherwise be damaged. Replace screw/bolts.	AR27.20-P-0100-01A
		Bolt, torque converter to driver spider	*BA27.20-P-1002-01C
		Long wedge	Figure
		Socket wrench bit	Figure
17	Remove front flexible coupling		AR41.10-P-0050LF
18	Support and secure the transmission (1) with assembly holder and mounting plate
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
19	Remove rear engine cross member	Transmission 722.96 in model 217, 222 with engine 276.8 Transmission 722.96 in model 217, 222 with engine 278 Transmission 722.96 in model 222 with engine 642 Transmission 722.97 in model 217, 222 with engine 157 Never use impact wrench or compressed air tools for screwing in or unscrewing the bolts! Otherwise the threads can get damaged.	AR22.10-P-1180LF
20	Detach starter from transmission (1)	Transmission 722.96 in model 222 with engine 642	AR15.30-P-7100LFD
		Transmission 722.96 in model 217, 222 with engine 278 Transmission 722.97 in model 217, 222 with engine 157	AR15.30-P-7100LF
		Transmission 722.96 in model 217, 222 with engine 276.8 Secure starter against falling. Otherwise damage will occur.	AR15.30-P-7100LFA
21	Lower transmission (1) carefully	Do not crush any components or place under tension. The engine must not lie against the front axle carrier or the bulkhead. Otherwise damage will occur.
22	Support engine on oil pan	The engine must not be allowed to tilt. Otherwise damage will occur.
23	Unscrew bolts (1a) and remove transmission (1) from below	Secure the torque converter (10) to prevent it from falling down. Otherwise damage will occur. Align the bores of the torque converter (10) with the threaded unions in the driver spider. Bolt, automatic transmission to engine	*BA27.40-P-1008-01A
24	Remove torque converter (10)	If necessary. Apply a little multi-purpose paste to journal (10a).
		Installed height of torque converter	*BE27.20-P-1001-01E
		Multi-purpose paste	*BR00.45-Z-1009-06A
		Parallel rest	Figure
		Handles	Figure
25	Remove corrosion from crankshaft		AR03.20-P-1000-01A
		Assembly cleaner	*BR00.45-Z-1028-04A
		Multi-purpose paste	*BR00.45-Z-1009-06A
26	Check threaded unions in driver spider	If threaded unions are damaged or loosened: ↓ Install a new driver spider.
		Transmission 722.96 in model 222 with engine 642	AR03.30-P-8001SXI
		Transmission 722.96 in model 217, 222 with engine 278 Transmission 722.97 in model 217, 222 with engine 157	AR03.30-P-8001LFB
		Transmission 722.96 in model 217, 222 with engine 276.8	AR03.30-P-8001LFA
27	Install in the reverse order
	Check
28	Check oil level in transmission (1) and correct		AR27.00-P-0270SYZ
29	Read out fault memory using the diagnostic system and clear if necessary
			AD00.00-P-2000-04B
30	Perform transmission adaptation using diagnostic system	After replacement or repair of transmission (1).
31	Reset data on service life of torque converter lockup clutch using diagnostic system	After replacement of torque converter (10).
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
32	Test run engine and check transmission (1) for leaktightness and proper operation

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Parallel Rest (126 589 04 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Socket Wrench Bit (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Handles (168 589 00 62 00)

Courtesy of MERCEDES-BENZ USA
